AI24 - 23.8” Core i7 65W ODM OEM Custom AIO

Multi function Office All In One Desktop PC Solution for ODM/OEM
  • Performance
    Support Desktop 65W i7 CPU, 64GB Memory, 4TB M.2 NVMe SSD, Wi-Fi 6E and Bluetooth 5.2, DVD-RW, 2 x 2.5 inch HDD
  • Flexible Storage
    9.5mm Optical Drive Disk
  • Front IO Ports
    USB Type C Quick Charging, USB 3.2 Type A, Audio Combo Jack, Card Reader
  • Exclusive Features

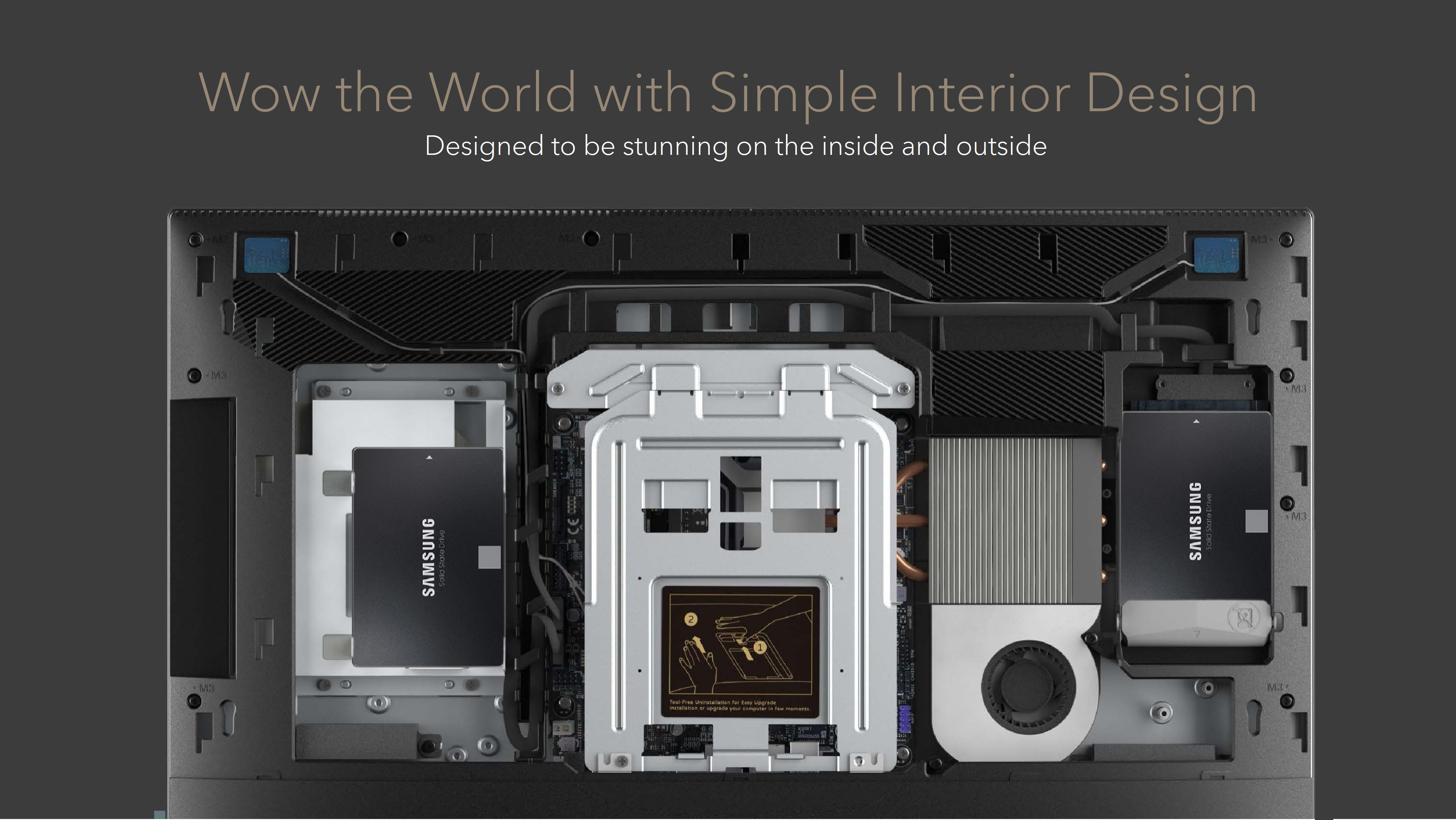

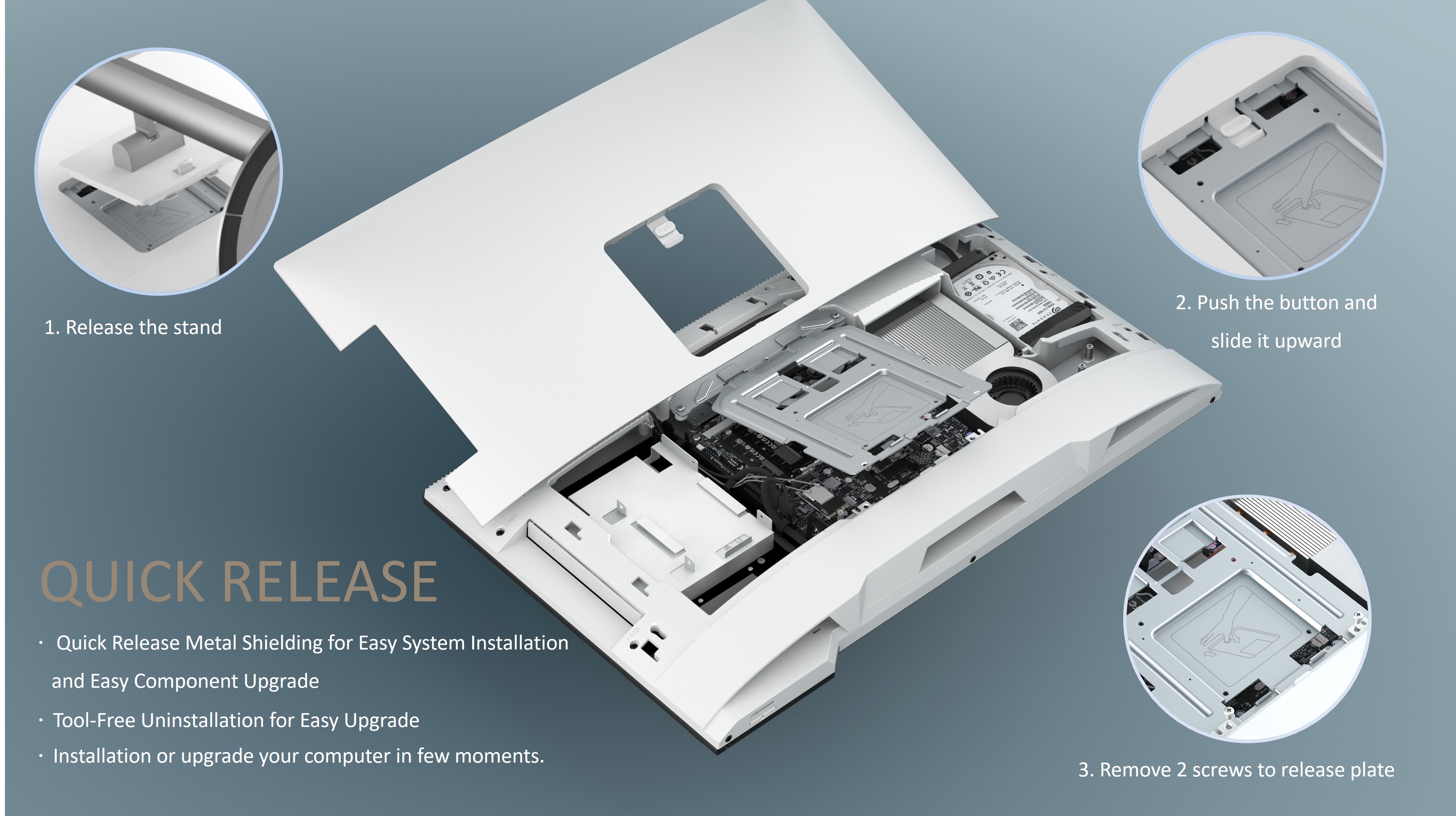

    Toolless Chassis. Easy assemble CPU, Memory, SSD. Quick Connect HDD Installation. Internal Cable Management.
  • HAS
    Quick Release and Install Design
  • Color
    Black or White

CPU/Memory Support

Drivers

BIOS

FAQ

Manual

User Guide
Model Name AI24
Display 23.8 inch, FHD (1920 x 1080) 16:9, IPS level, Wide-Angle View, Anti-glare, LED backlight, 250 nits, 1:1000 contrast ratio, 3-Border Bezel-free, Zero Bright dot
Motherboard Support Standard 170 x 170 mm Thin Mini ITX Motherboard
(Intel H810/B760/Q670/B660/H610, Intel i7-13620H, AMD 7000/8000)
Processor Intel Socket LGA1851 for 15th / 14th Gen Intel Core i7 / i5 / i3, Pentium Gold / Silver and Celeron Processors (Up to 65W)
Graphics Integrated Graphics
Memory Follow Motherboard Specification
Support SO-DIMM Max. 64GB DDR4 / Max. 96GB DDR5
Storage 1 x M.2 M Key 2280 NVMe SSD (Support PCIe & SATA mode)
2 x 2.5" Hard Disk Drive / Solid-State Drive Space
1 x ODD Space (Optional)
Wireless Data Network M.2 Wi-Fi 5/6/6E/7 + Bluetooth 5.x

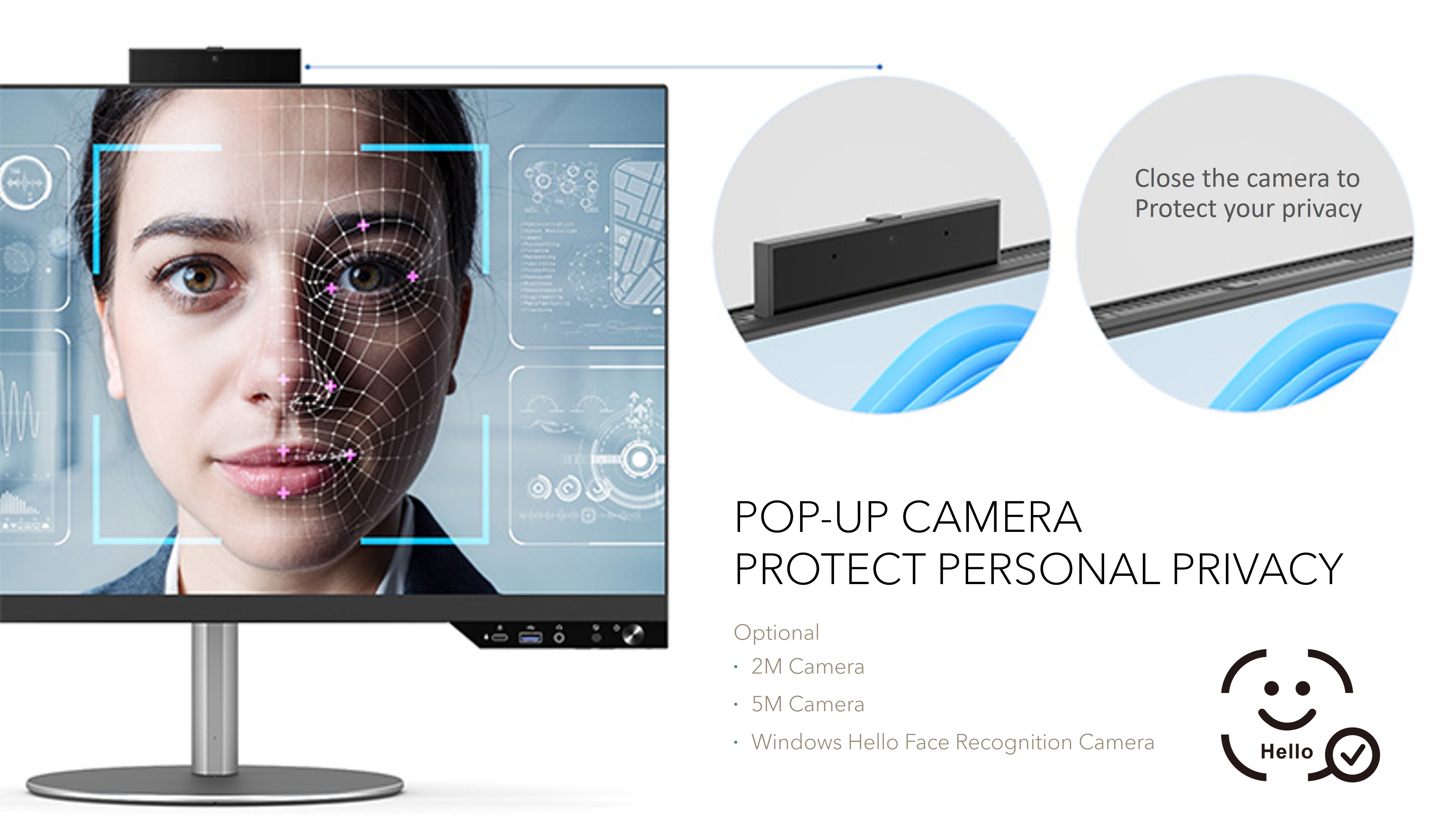

Camera+Microphone Pop up 5MP(2592 x 1944) Camera + Dual Mic / Dual Digital Mic

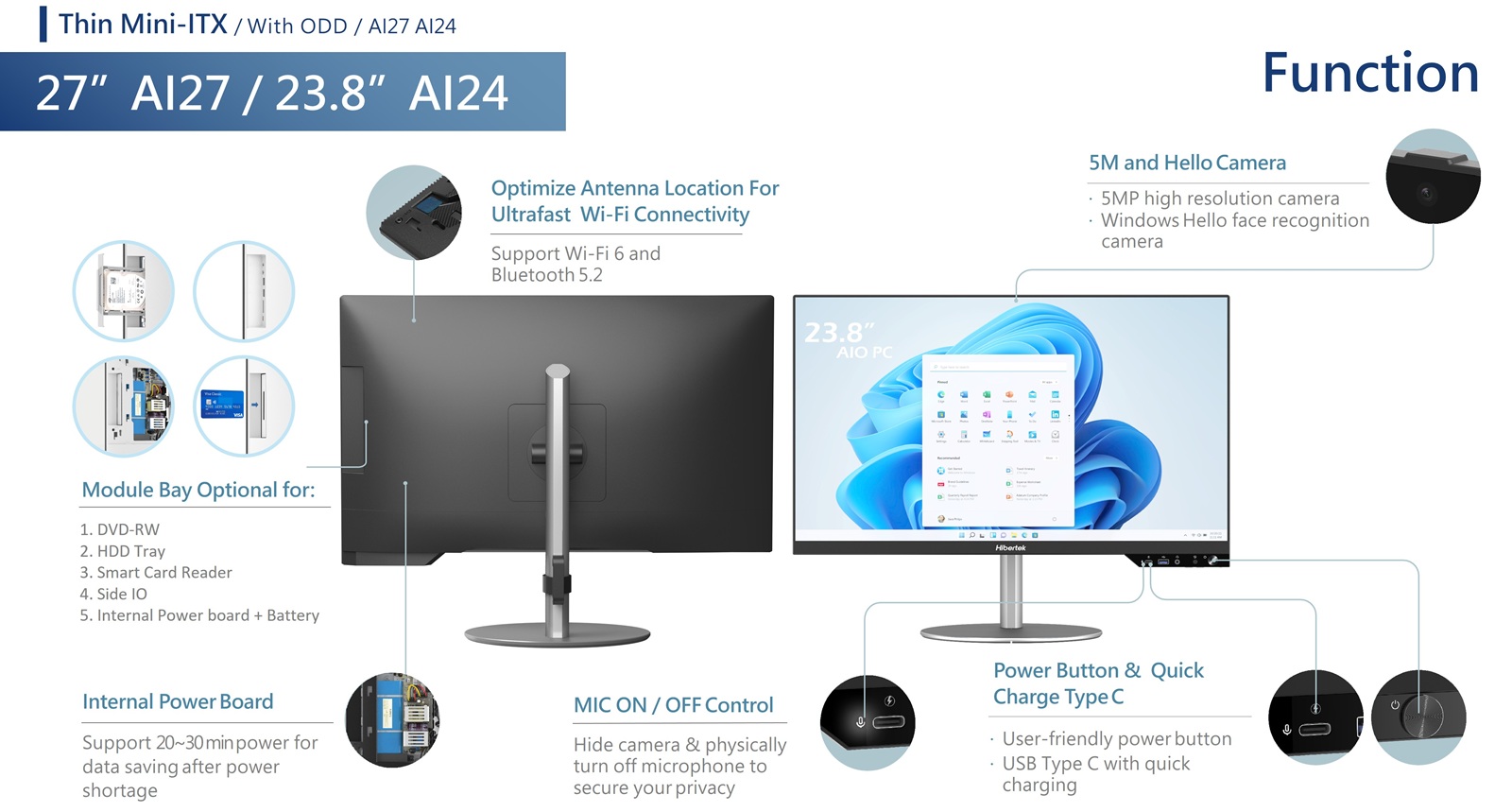

Front I/O Ports 1 X USB 3.2 Type C
*Support Quick Charging
1 x USB 3.2 Type A
1 x 3.5mm Audio Combo Jack
1 x SD Card Reader
Back I/O Ports H610 Thin Mini ITX
2 x USB 3.0 Gen 2 Type A
2 x USB 2.0 Type A
1 x DisplayPort
1 x HDMI out
1 x 1Gb Ethernet port
2 x Audio jacks
1 x DC Power Connector (Support 19V)
Extra I/O Ports -1 x COM port
-2 x USB2.0 Type A
-1 x HDMI out
Speaker 2 x 3W Speakers
Power 120W External Power Adaptor With Power Cord
-Optional: 150W External Power Adaptor With Power Cord
Security Kensington Lock
Chassis Intrusion
Cable Cover
Operation System Windows 11 64-bit / Linux
Logo Customized Logo Metal Plate on Back (Optional)

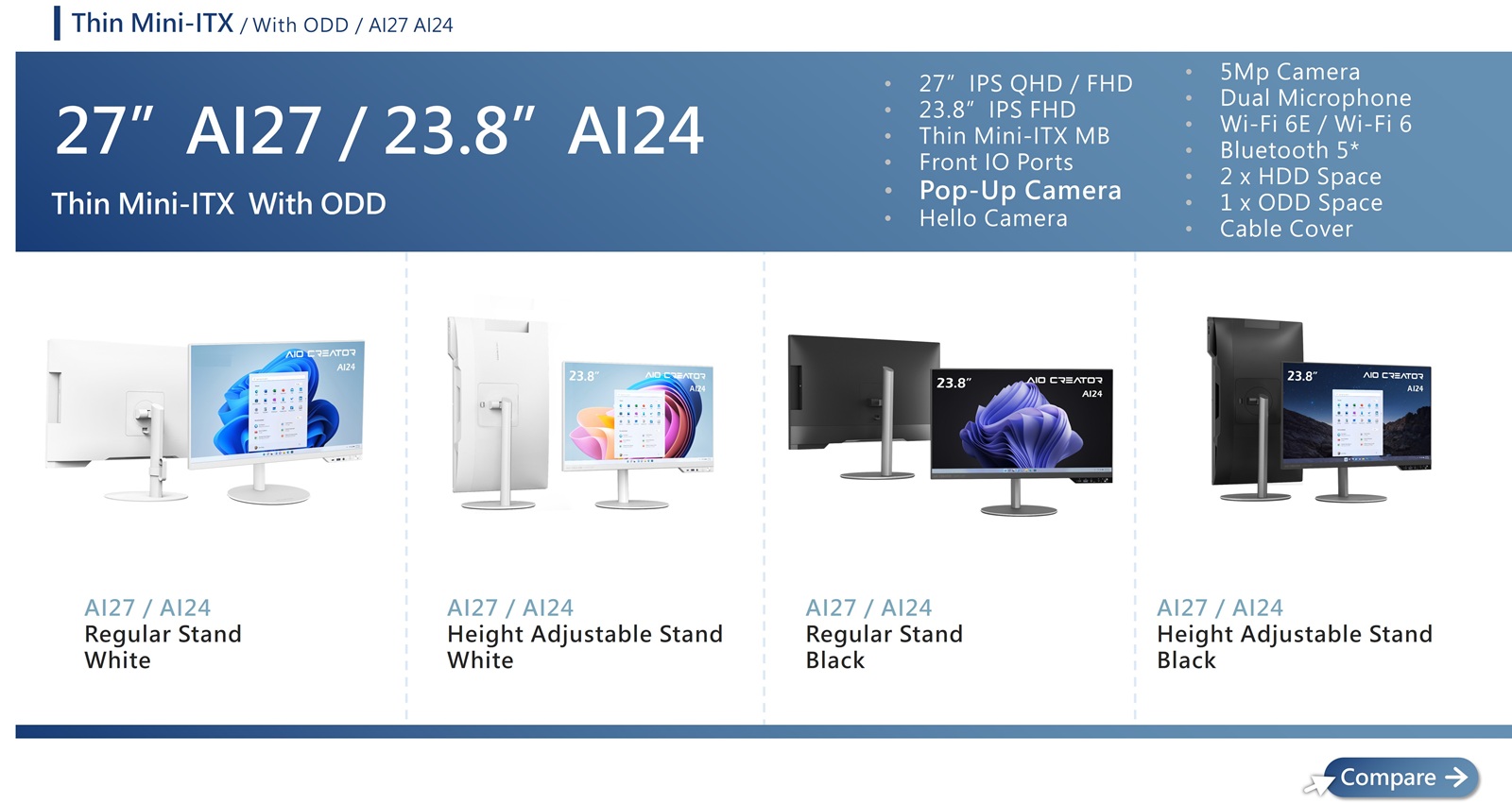

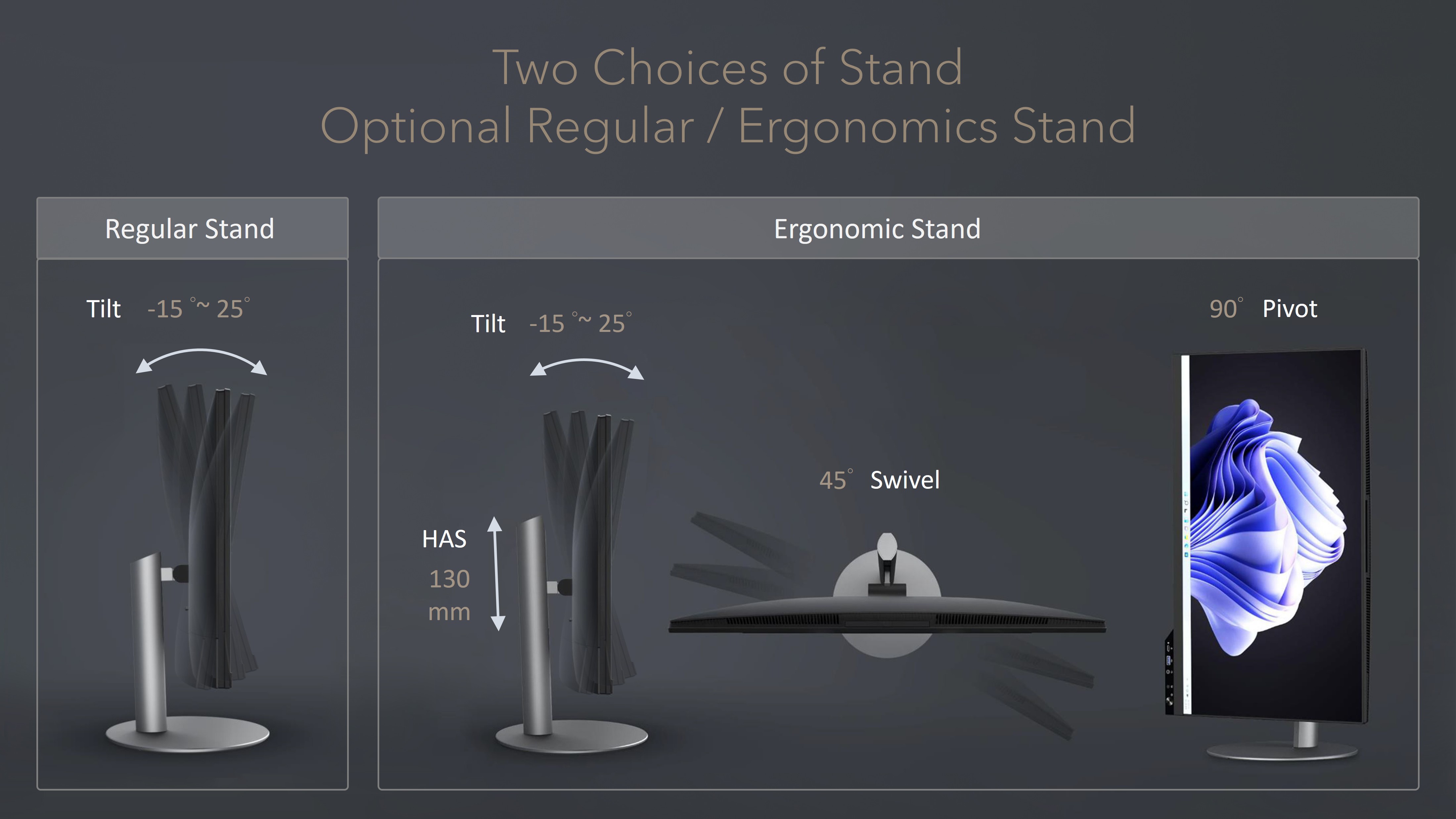

Regular Stand HB01N Standard Stand
Tilt: -15°-25°
Height Adjustable
Stand		 Tool-Less Quick Release / Install Design
Elevation: 130 mm
Tilt: -15°-25°
Swivel: -30°-30°
Rotation: -90°-90°
Dimension -542.2 (W) x 338.7 (H) x 54.9 (D) mm (without stand)
-542.2 (W) x 416.3 (H) x 230 (D) mm (with regular stand)
-542.2 (W) x 492.7 (H) ~ 362.7 (H) x 230 (D) mm (with HAS)
Color Matt Black / Matt White
Certification CE, FCC, RoHS
