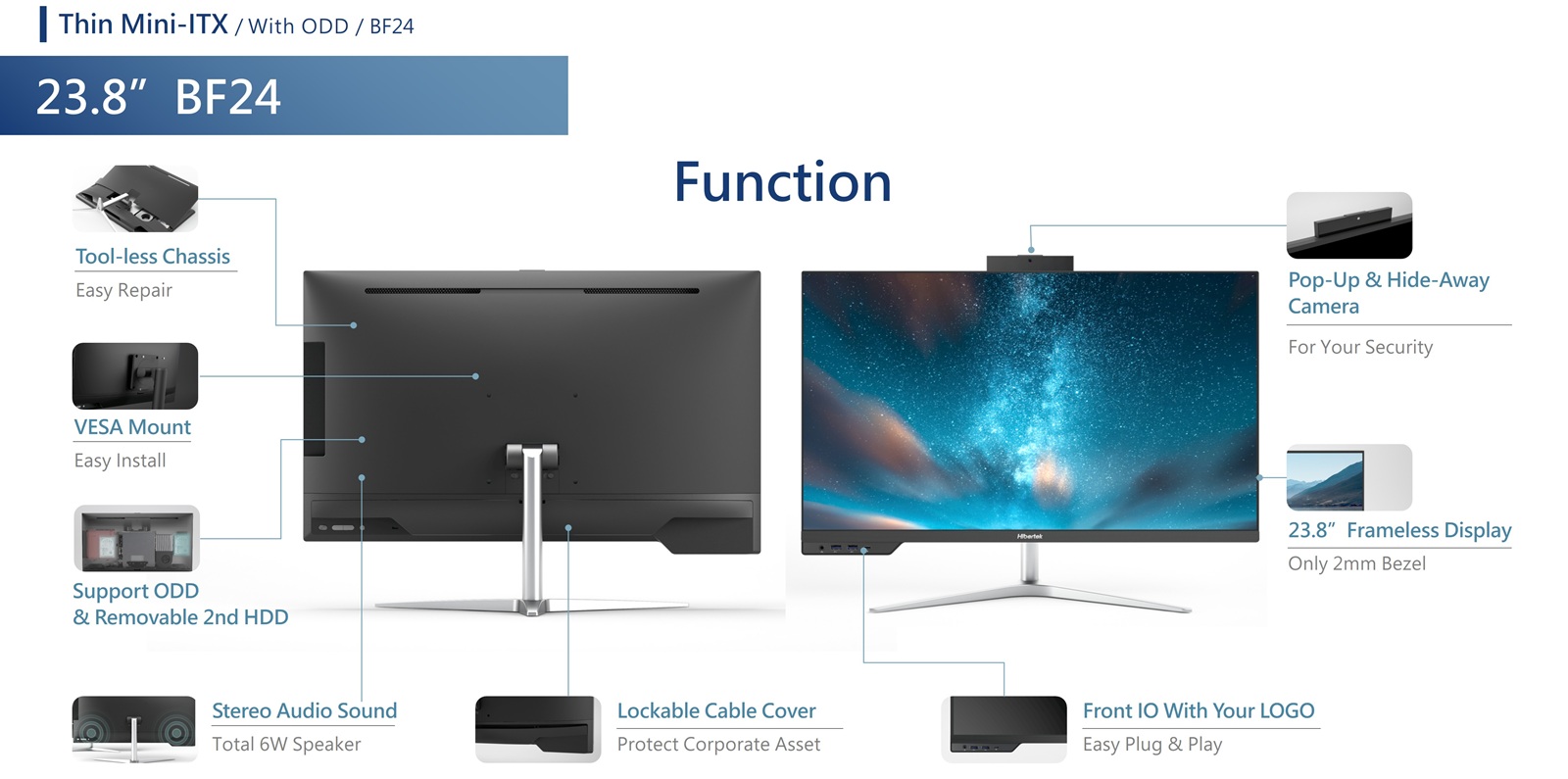

BF24 - 23.8" Ultra 9/Core i9/Ryzen7 ODM/OEM AIO Barebone Desktop

All-In-One Desktop PC for Government and Corporate Tender
  • Performance
    Support Desktop 65W Ultra 9/Core i9/Ryzen7 CPU, 128GB Memory, 4TB M.2 NVMe SSD, Wi-Fi 6E and Bluetooth 5.2, DVD-RW, 2 x 2.5 inch HDD
  • Flexible Storage
    9.5mm Optical Drive Disk

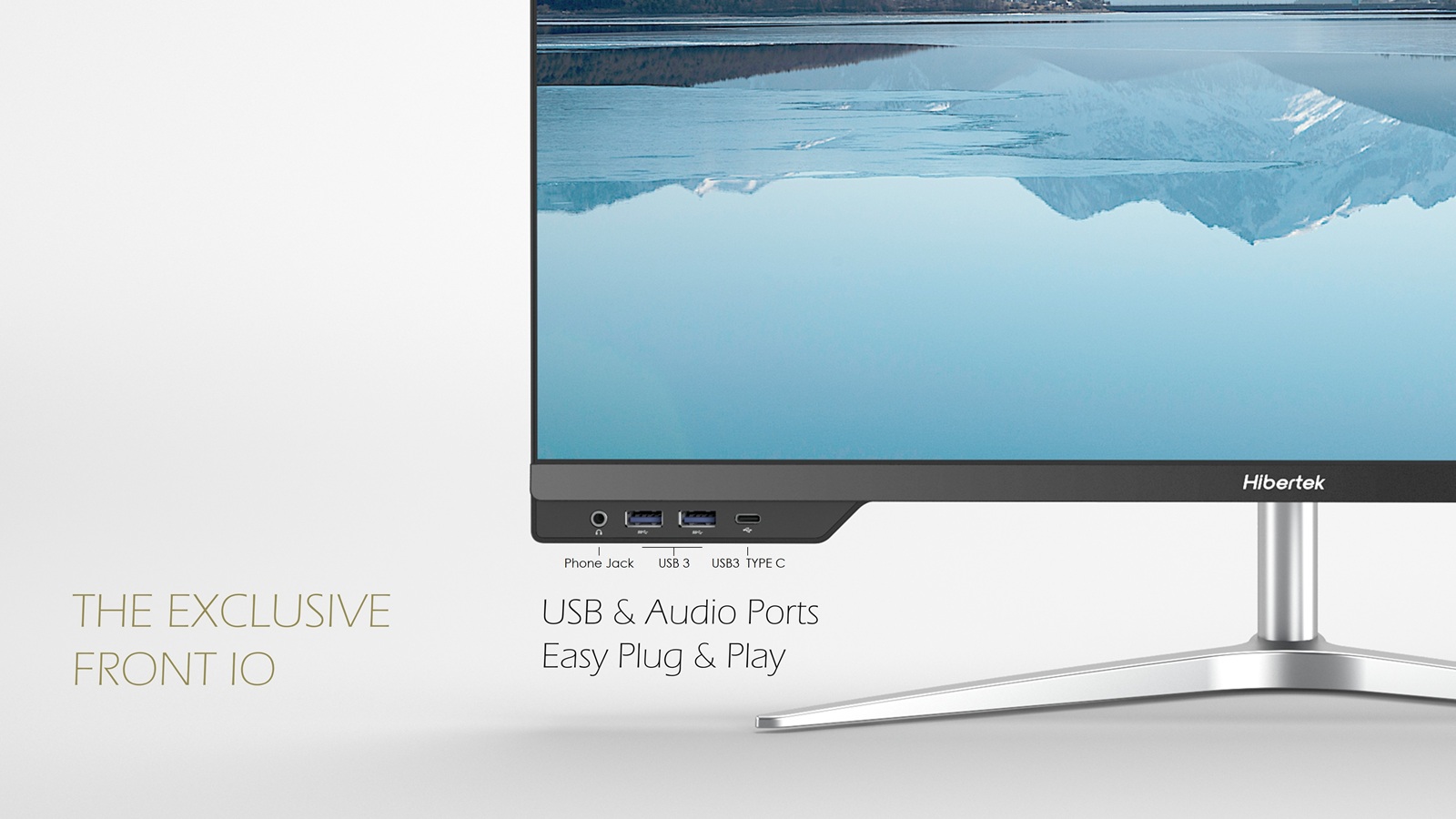

  • Front IO Ports
    USB 3.2 Type A, USB 3.2 Type C, Audio Combo Jack

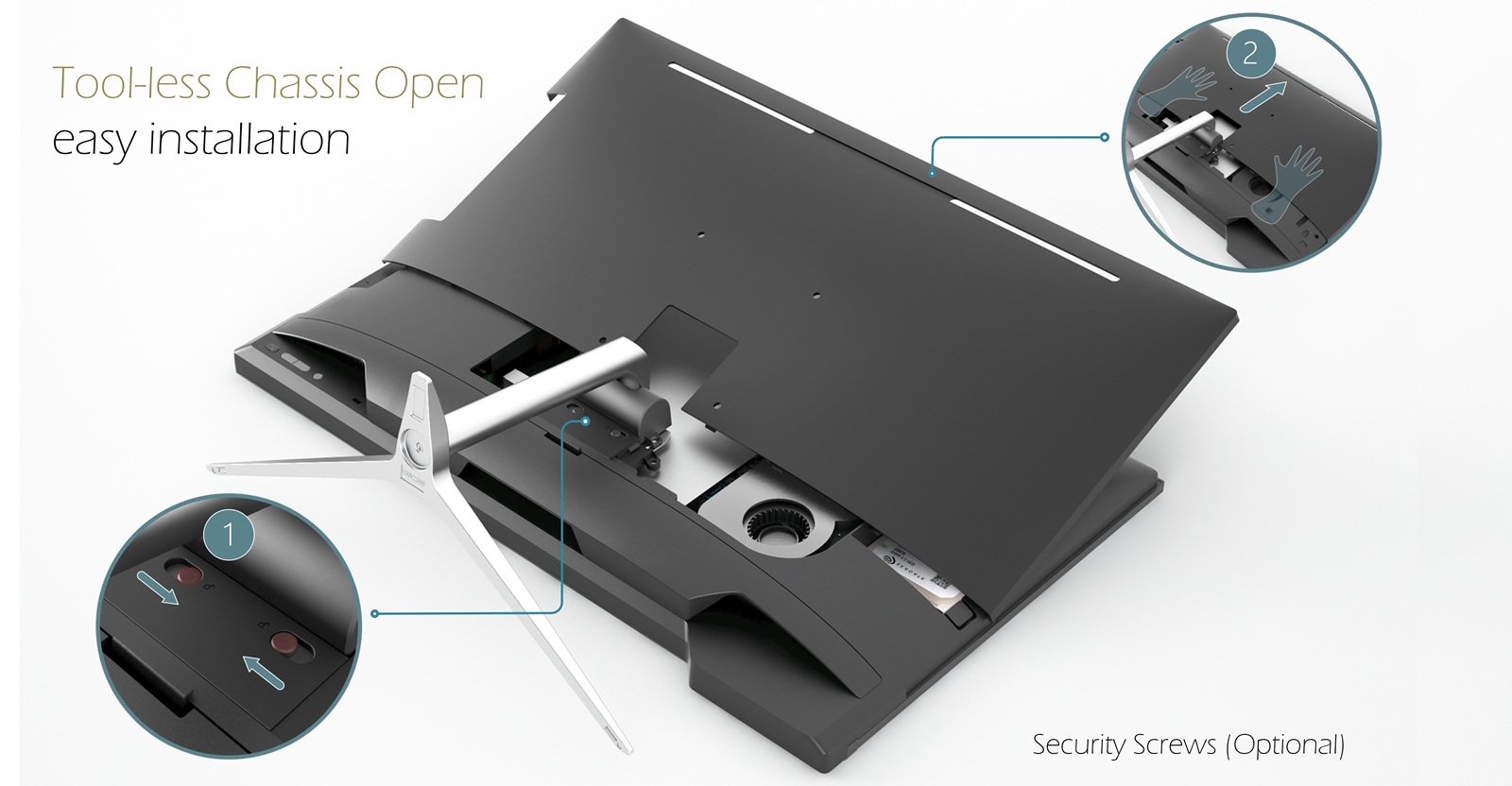

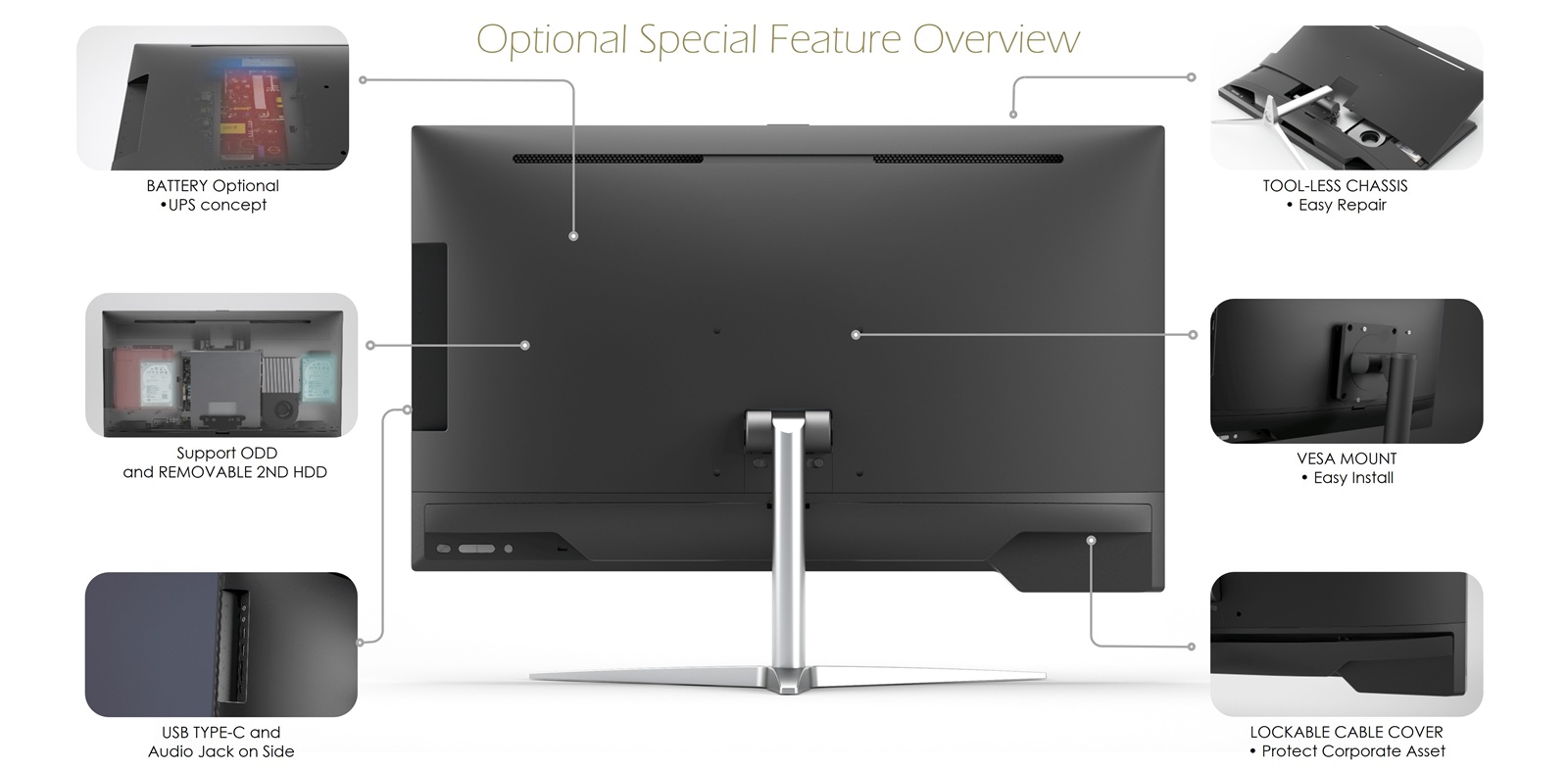

  • Toolless Chassis
    Quick-Open Back Cover for easy CPU, Memory, Storage upgrade.
  • Y Stand
    100 x 100 VESA for Wall Mount and Articulating Arm Stand.
  • Color
    Matt Black

CPU/Memory Support

Drivers

BIOS

FAQ

Manual

User Guide
Model Name BF24
Display 23.8 inch, FHD (1920 x 1080) 16:9, IPS level, Wide-Angle View, Anti-glare, LED backlight, 250 nits, 1:1000 contrast ratio, 3-Border Bezel-free, Zero Bright dot
Motherboard Support Standard 170 x 170 mm Thin Mini ITX Motherboard
(Intel Q870/B860/H810/B760/Q670/B660/H610,
Intel Core Ultra Series 3/Core Ultra Series 2 -H/Core Ultra Series 1 -H/Core CPU-H/Core CPU N200,
AMD Pro665/Pro600/A300,
AMD 8040 Series H/7035 Series H/R2514)
Processor Intel Socket LGA1851 for Core Ultra Series 2 up to Ultra 9/LGA1700 14th/13th/12th Gen up to i9 Desktop Processors (Up to 65W)
Intel Core Ultra Series 3/Core Ultra Series 2 -H/Core Ultra Series 1 -H up to Ultra 9/Core CPU-H up to Core 9/N200 Mobile Processors(Up to 65W)
AMD Socket AM5 for Ryzen 9000/8000 series up to Ryzen 7/AM4 for Ryzen 5000/4000/3000 series up to Ryzen 7 Desktop Processors (Up to 65W)
AMD 8040 Series H/7035 Series H/R2514 Mobile Processors (Up to 65W)
Graphics Integrated Graphics
Memory Follow Motherboard/Processors Specification
Support Dual SO-DIMM Max. 64GB DDR4 / Max. 128GB DDR5
Storage Up to 2 x M.2 M Key 2280 NVMe SSD (Support PCIe & SATA mode)
2 x 2.5" Hard Disk Drive / Solid-State Drive Space

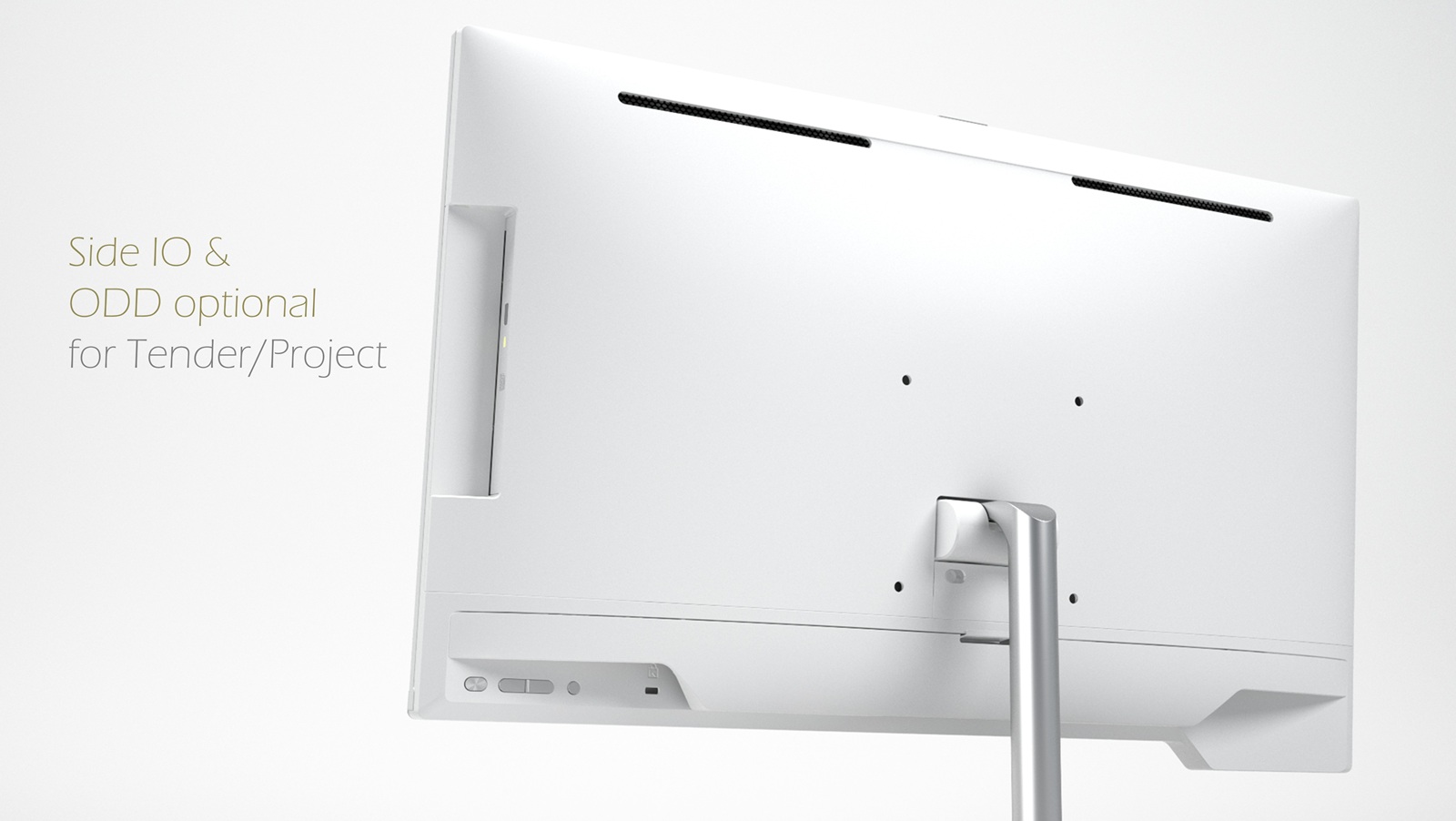

1 x ODD Space (Optional)
Wireless Data Network M.2 Wi-Fi 5/6/6E/7 + Bluetooth 5.x

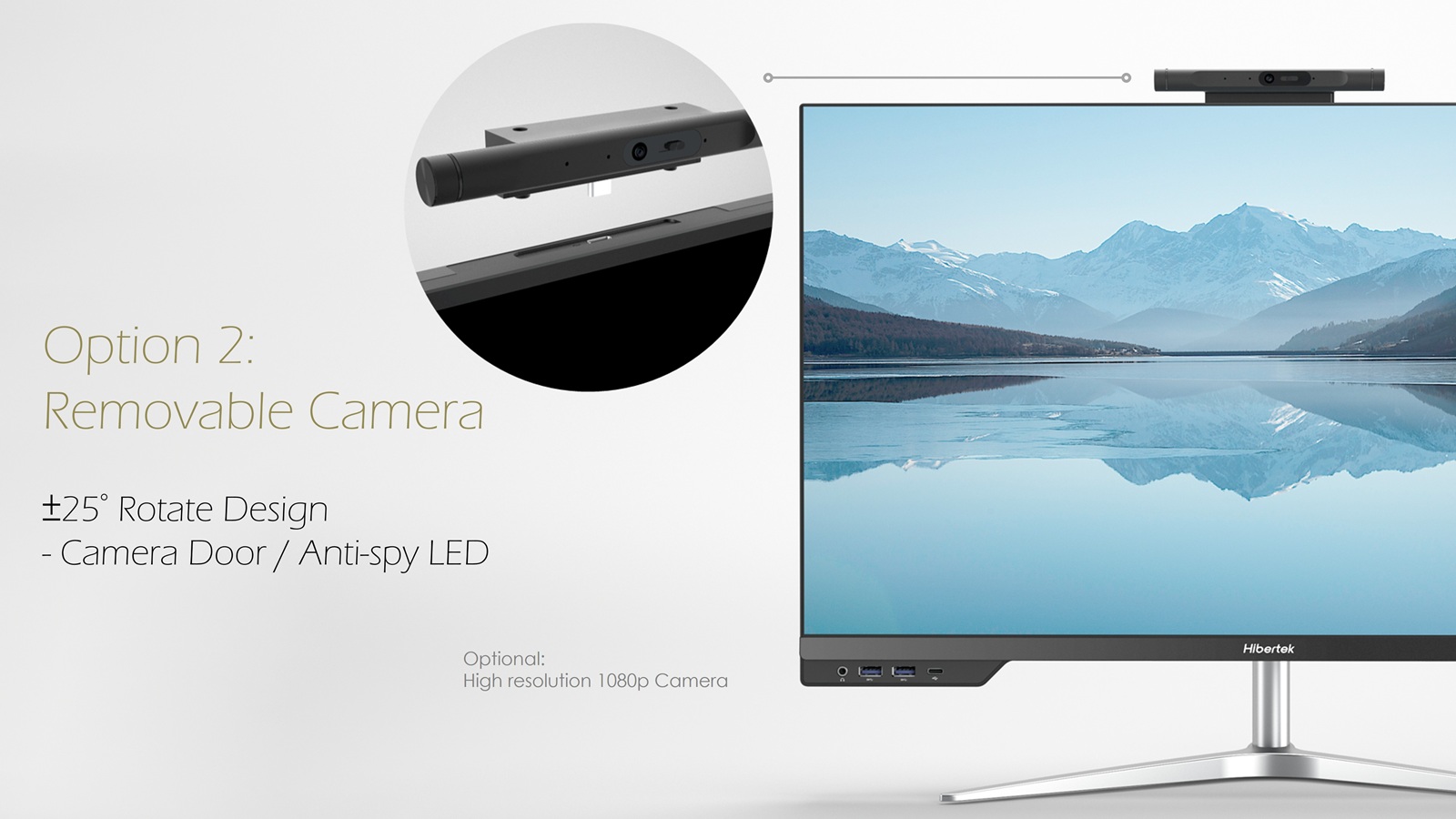

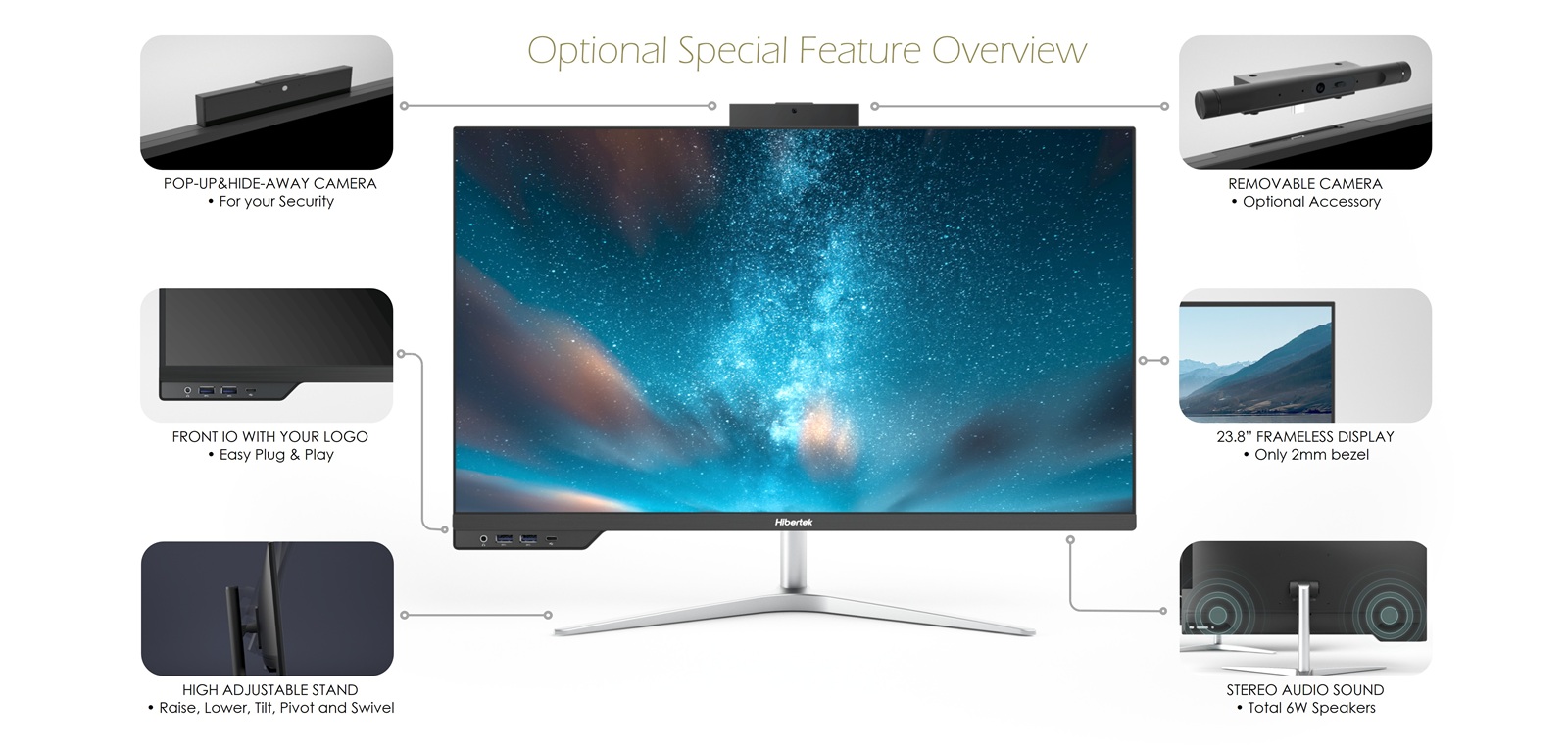

Camera Housing Pop up Camera Housing
-Optional: Type C Camera Housing
Camera + Microphone 5Mp 2592 x 1944 Camera + Dual Mic / Dual Digital Mic
Front I/O Ports 2 x USB3.2 Gen1 Type A
1 x USB3.2 Gen1 Type C
1 x 3.5mm Audio Combo Jack
Back I/O Ports H810 Thin Mini ITX
2 x USB 3.2 Gen 2x1 Type A
2 x USB 2.0 Type A
1 x DisplayPort
1 x HDMI out
1 x 1Gb Ethernet port
2 x Audio jacks
1 x DC Power Connector (Support 19V)

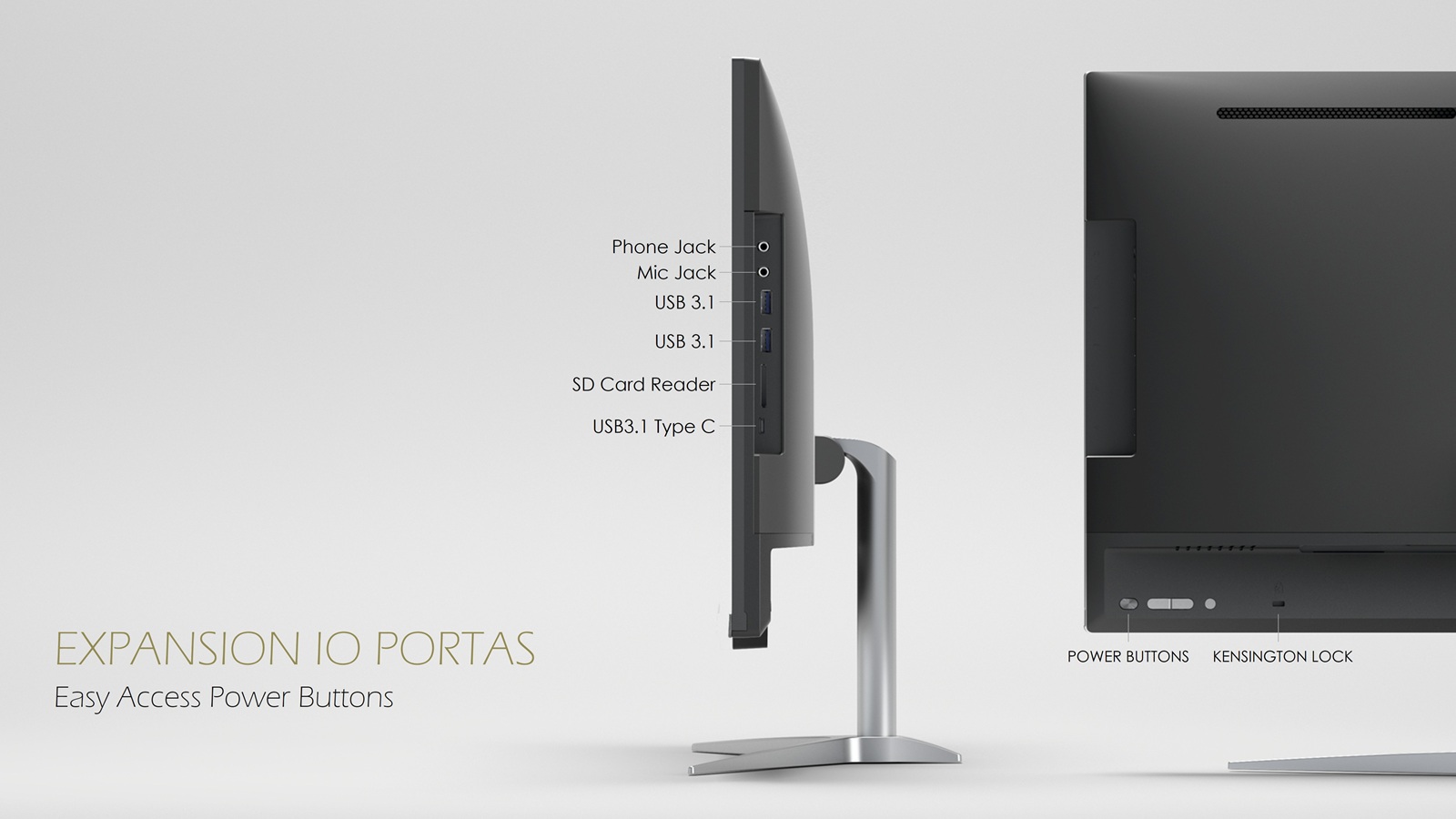

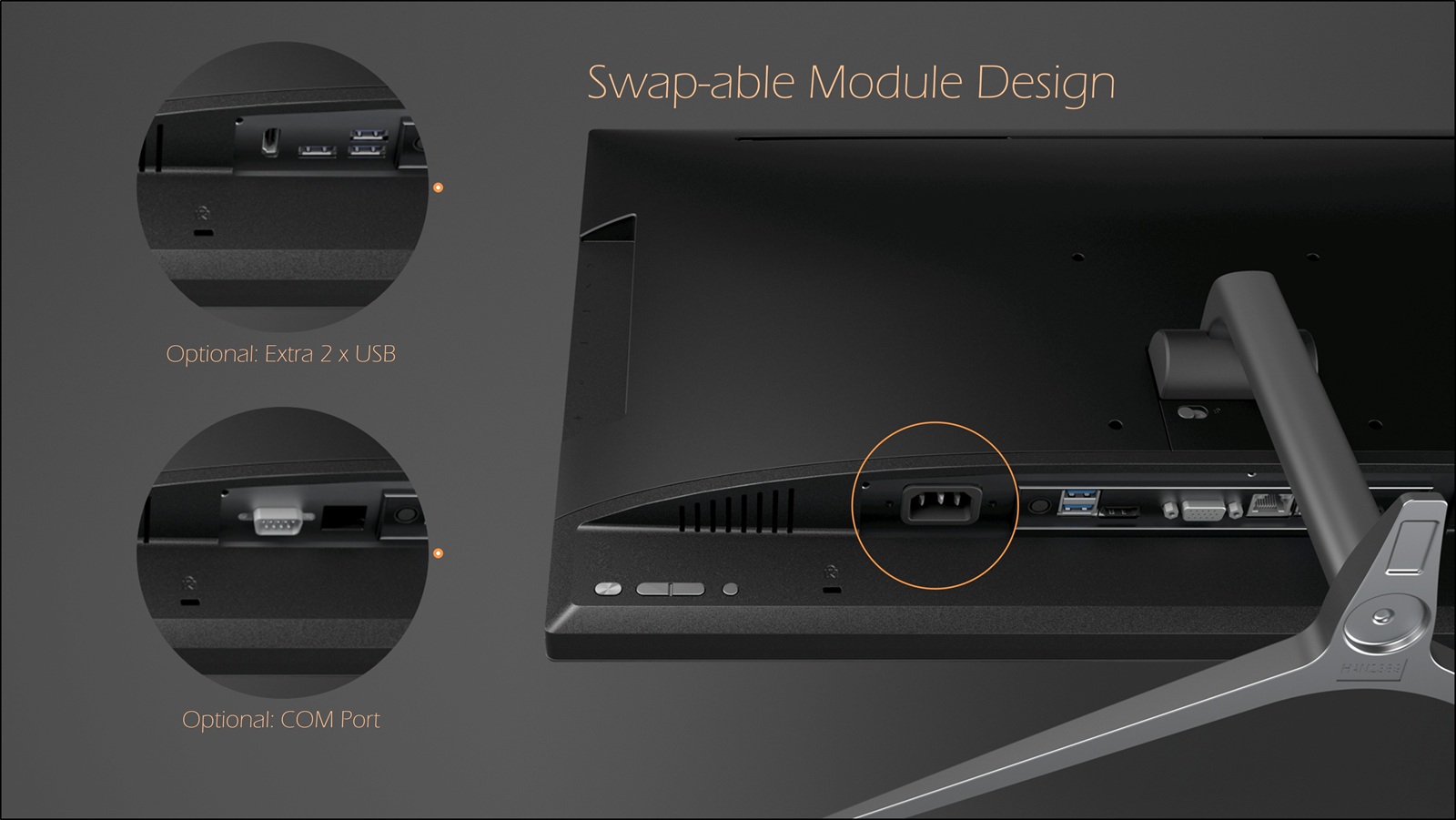

Extra I/O Ports -1 x COM port
-2 x USB2.0 Type A
-1 x HDMI out
-1 x HDMI in
Buttons Power Button
Brightness Up / Down
LCD On / Off
Speaker 2 x 3W Speakers

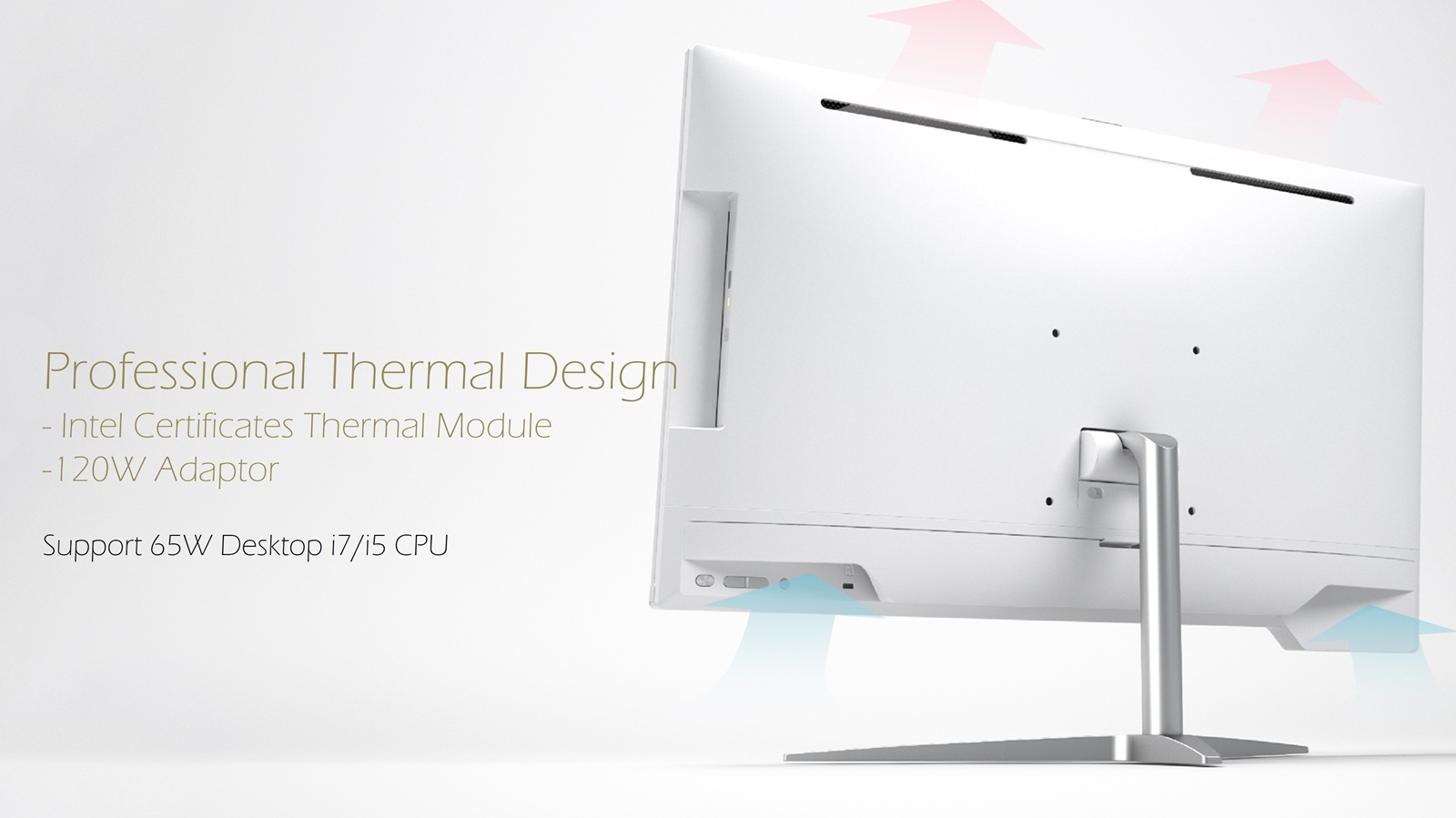

Power 120W Adaptor
-Optional 150W Adaptor
Security Kensington Lock
Chassis Intrusion

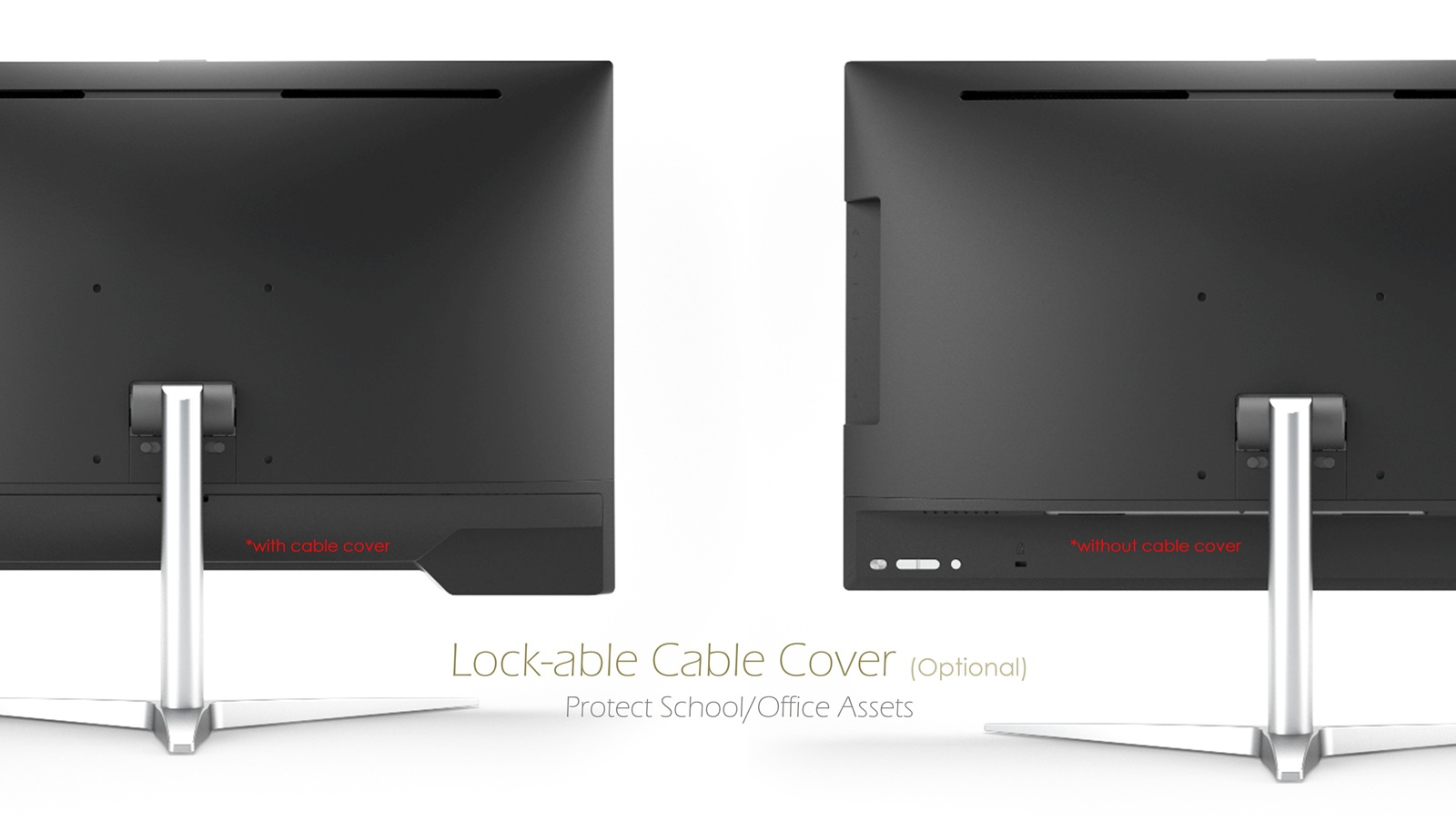

Cable Cover
Operation System Windows 11 64-bit / Linux

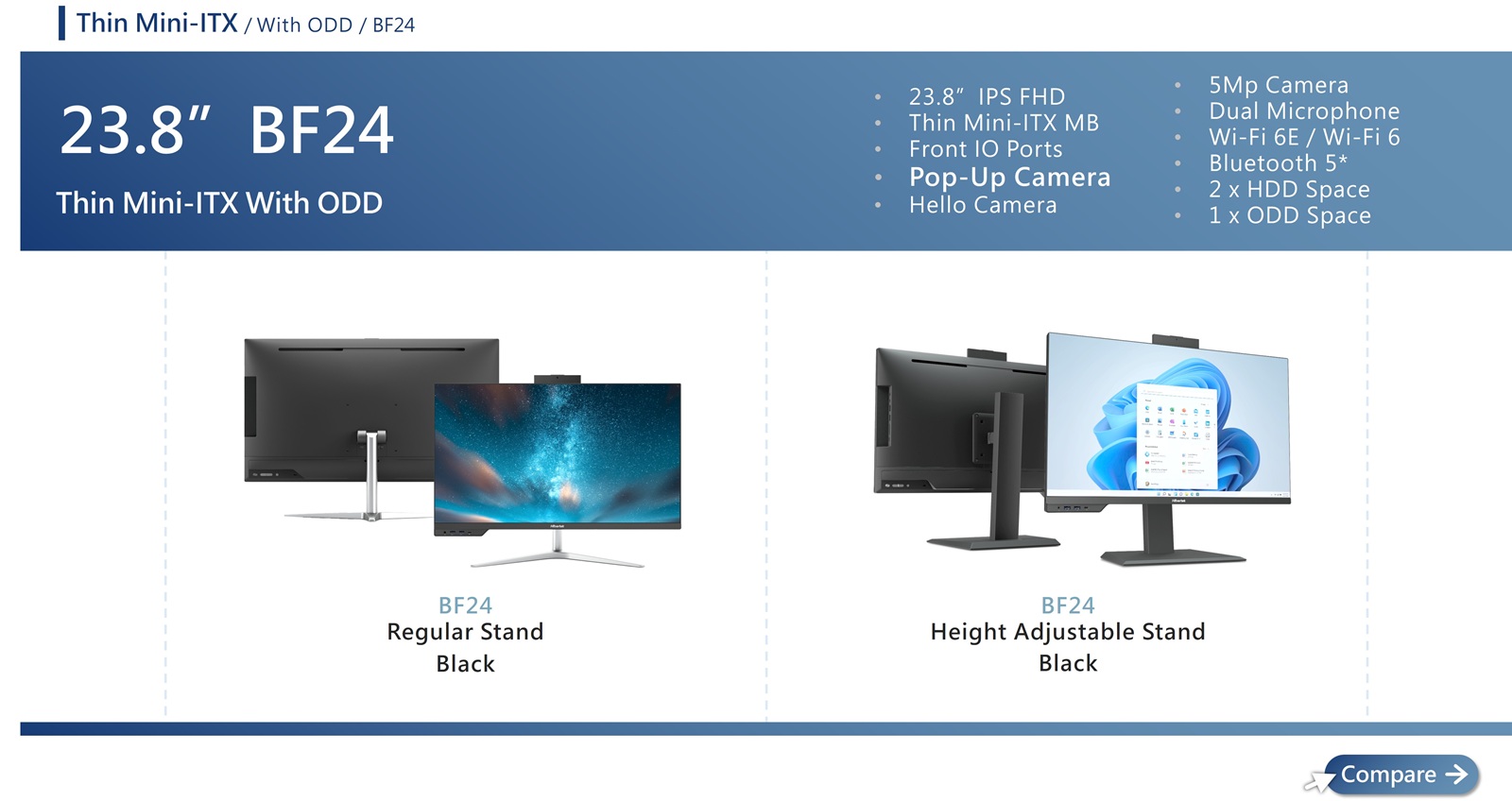

Regular Stand Silver Aluminum Y Stand
Tilt: -10°-20°
Height Adjustable
Stand		 Support 100 x 100mm VESA
Elevation: 130 mm
Tilt: -5°-17°
Swivel: -45°-45°
Rotation: -90°-90°
Dimension -541 (W) x 325.8 (H) x 58.3 (D) mm (without stand)
-541 (W) x 388 (H) x 160 (D) mm (with Silver Aluminum Y Stand)
-541 (W) x 518 (H) ~ 388 (H) x 188 (D) mm (with Height Adjustable Stand)
Color Matt Black
Certification CE, FCC, RoHS
