E24 - 23.8" POS KIOSK Touch Screen All-In-One PC

23.8" AIO touch PC supports a sensitive multi-touch screen for any project
  • 10 Points Multi-Touch
    Custom G+G or GFF high-sensitive capacitive 10 points multi-touch with custom touch glass thickness
  • Low-power consumption Mobile CPU
    Fanless solution to have a quiet working environment with the latest 65W Intel desktop CPU i7 /i5 / i3 to enhance the working efficiency
  • Side IO Ports
    USB 3.0 Ports and Card Reader

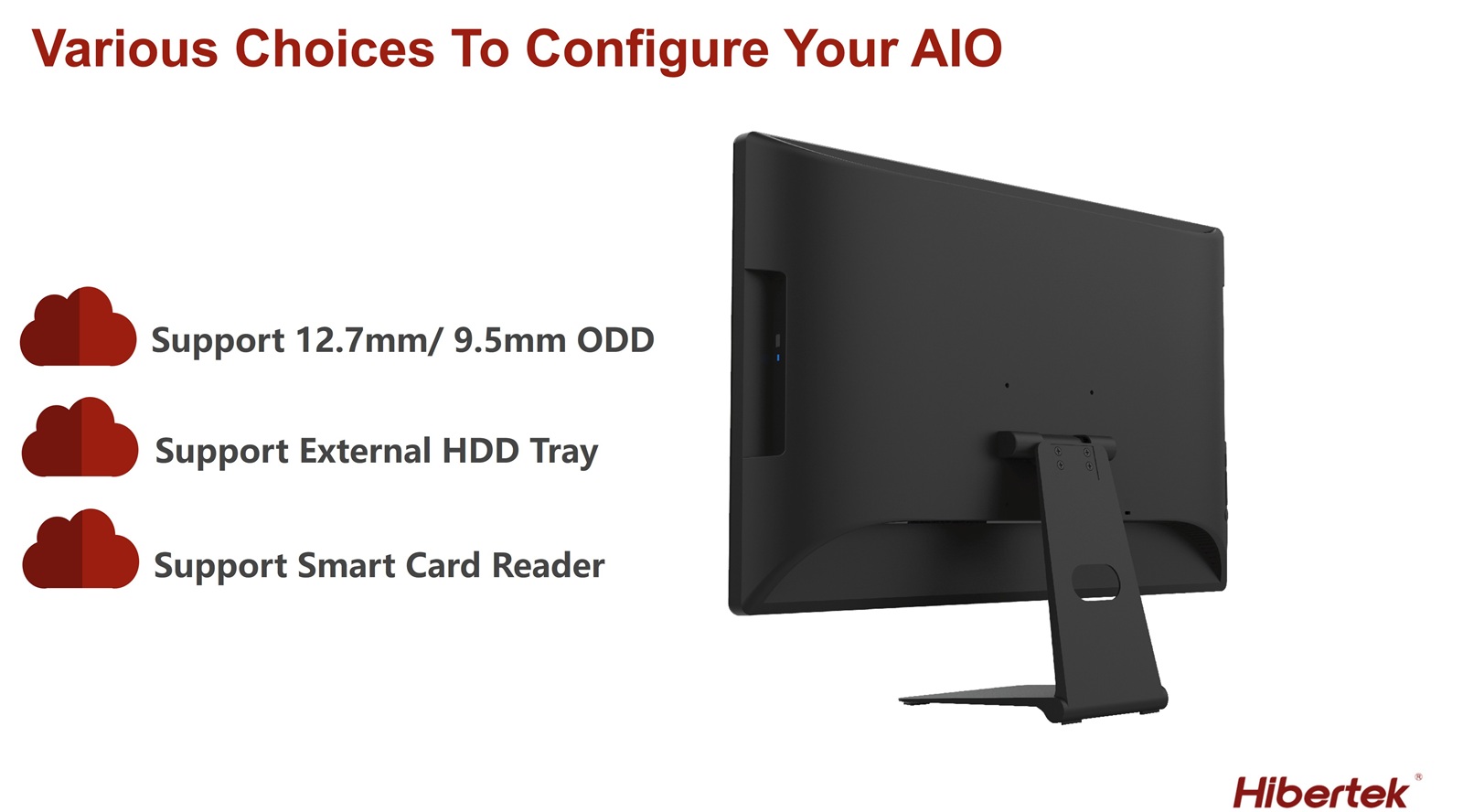

  • Optional Functions
    COM, USB Ports, ODD, Smart Card Reader, HDD tray
  • Dual Stands Support
    2-in-1 Stand / Height Adjustable Stand
  • Color
    Black / White

CPU/Memory Support

Drivers

BIOS

FAQ

Manual

User Guide
Model Name E24

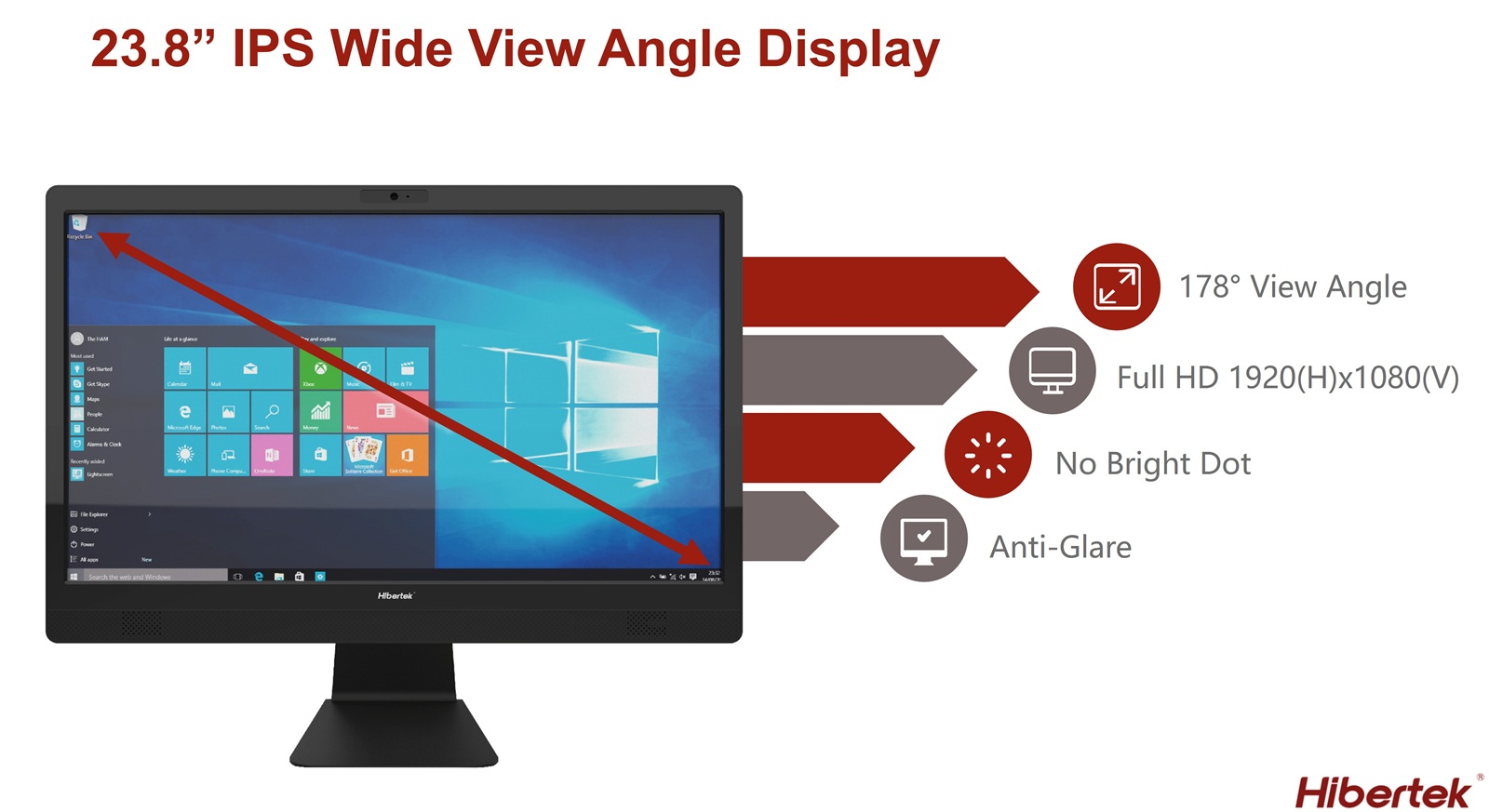

Display 23.8 inches, FHD (1920 x 1080) 16:9, IPS/VA Panel, Wide-Angle View, Anti-glare, LED backlight, 250 nits, 1:3000 contrast ratio, 10 Point Capacitive Multi-Touch
-Optional: Zero Bright dot / Cover Glass
Motherboard Support Standard 170 x 170 mm Thin Mini ITX Motherboard
(Intel H810/B760/Q670/B660/H610, Intel i7-13620H, AMD 7000/8000)

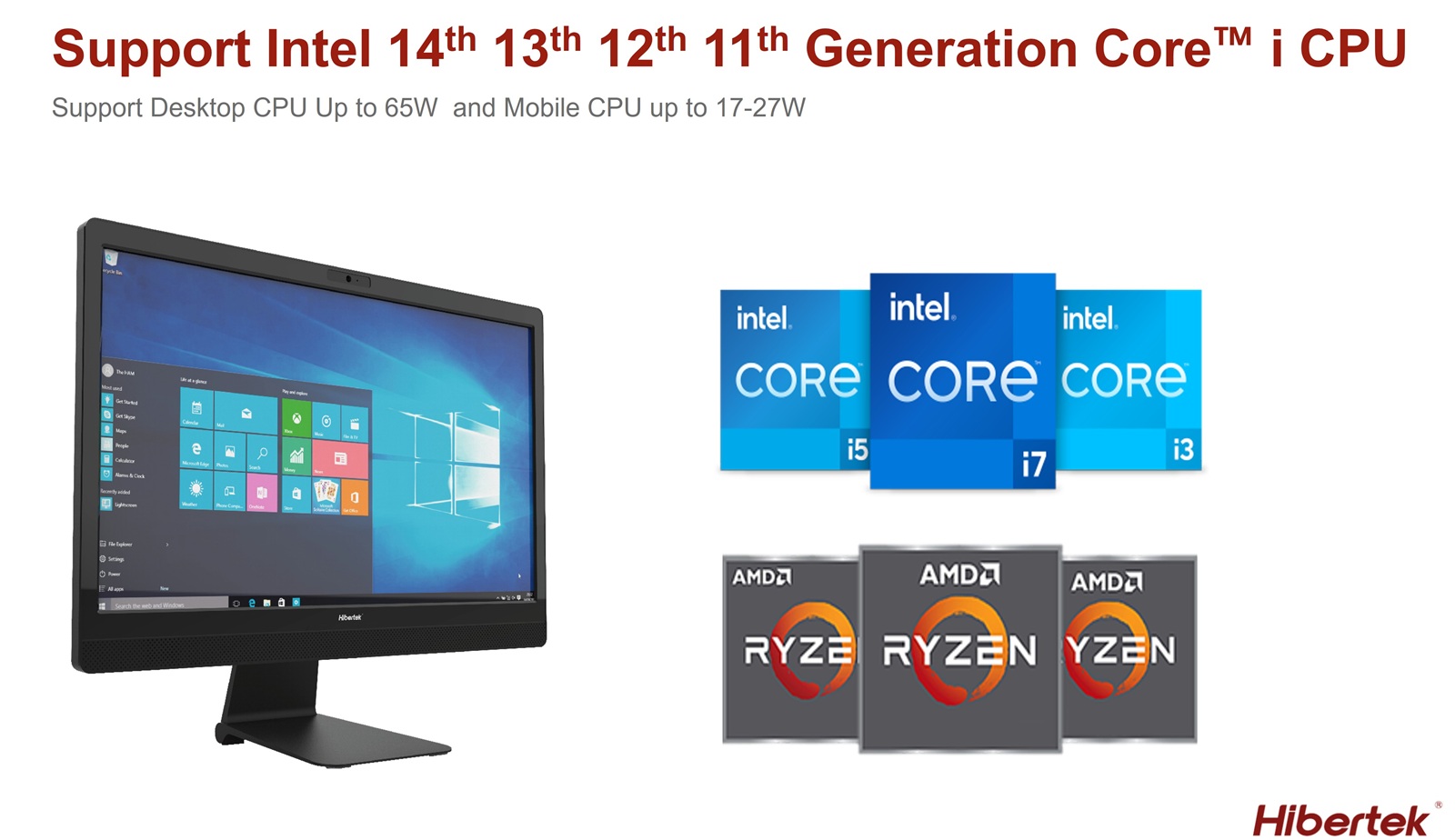

Processor Intel Socket LGA1851 for 15th / 14th Gen Intel Core i7 / i5 / i3, Pentium Gold / Silver and Celeron Processors (Up to 65W)
Graphics Integrated Graphics
Memory Follow Motherboard Specification
Support 2 x SO-DIMM Max. 64GB DDR4 / DDR5
Storage 1 x M.2 M Key 2280 NVMe SSD (Support PCIe & SATA mode)
2 x 2.5" Hard Disk Drive / Solid-State Drive Space
1 x ODD Space (Optional)
Wireless Data Network M.2 Wi-Fi 5/6/6E/7 + Bluetooth 5.x

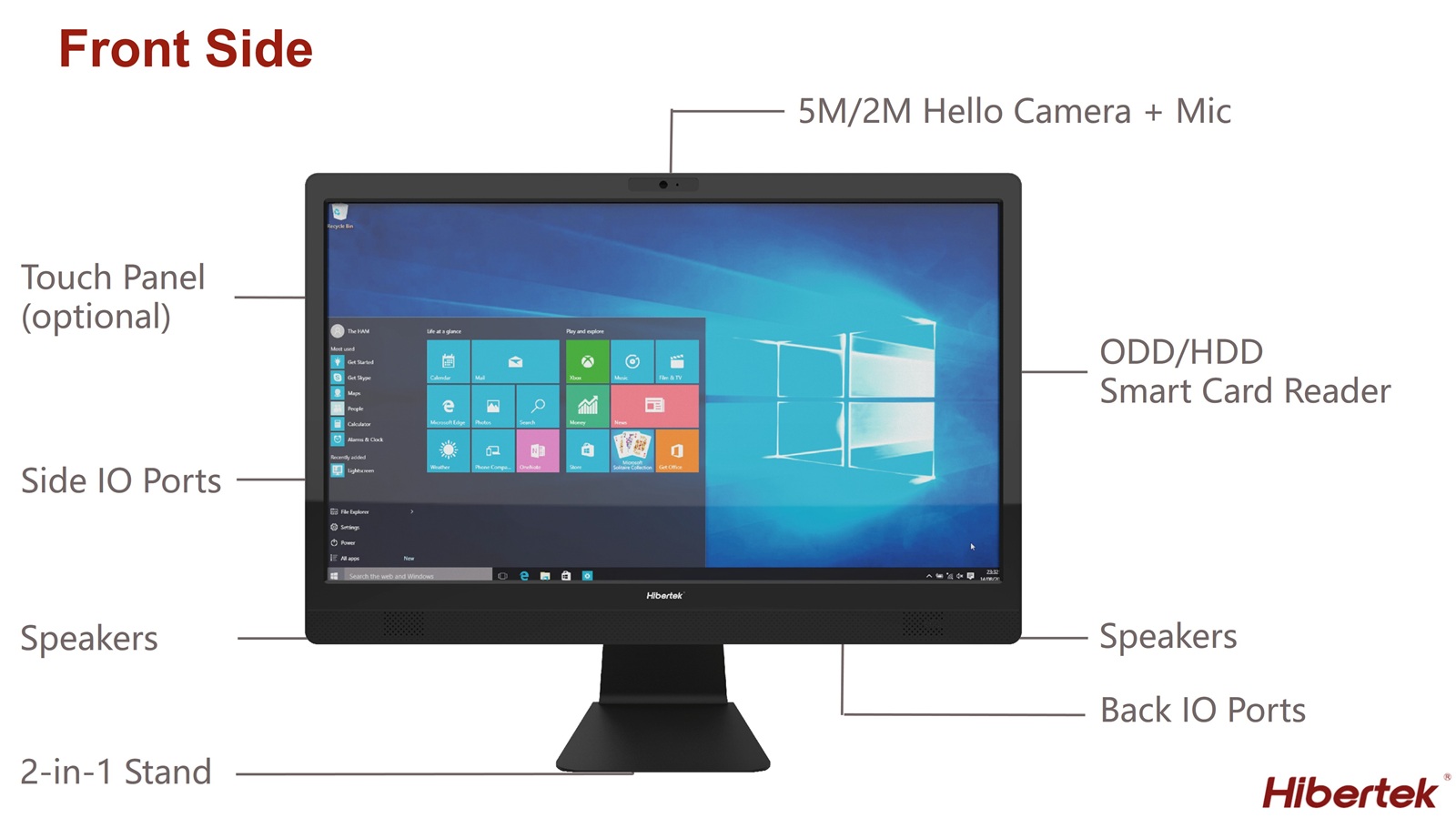

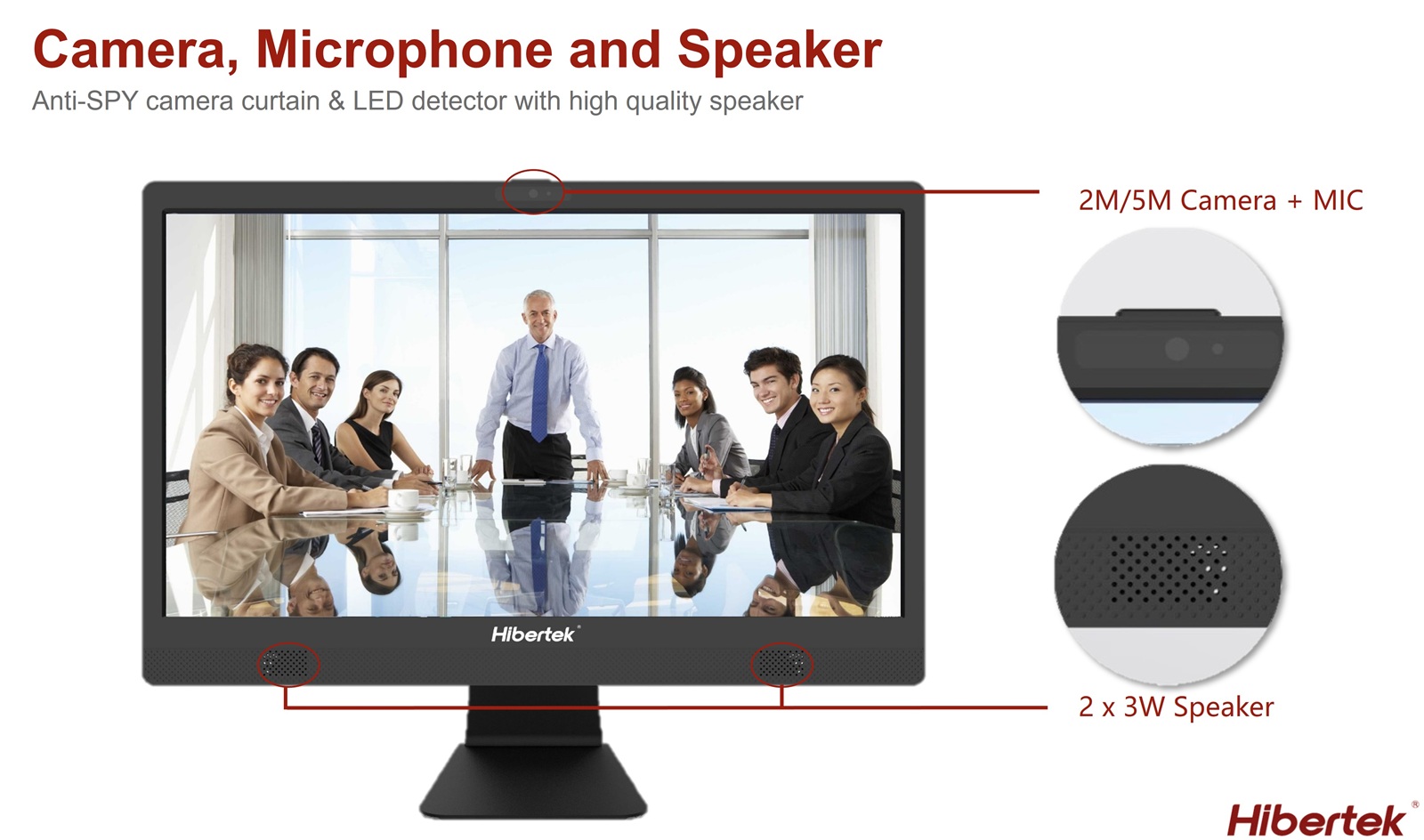

Camera + Microphone Integrated Camera
2Mp 1920 x 1080 Camera + Single Mic
-Optional: 5Mp 2592 x 1944 Camera + Dual Mic

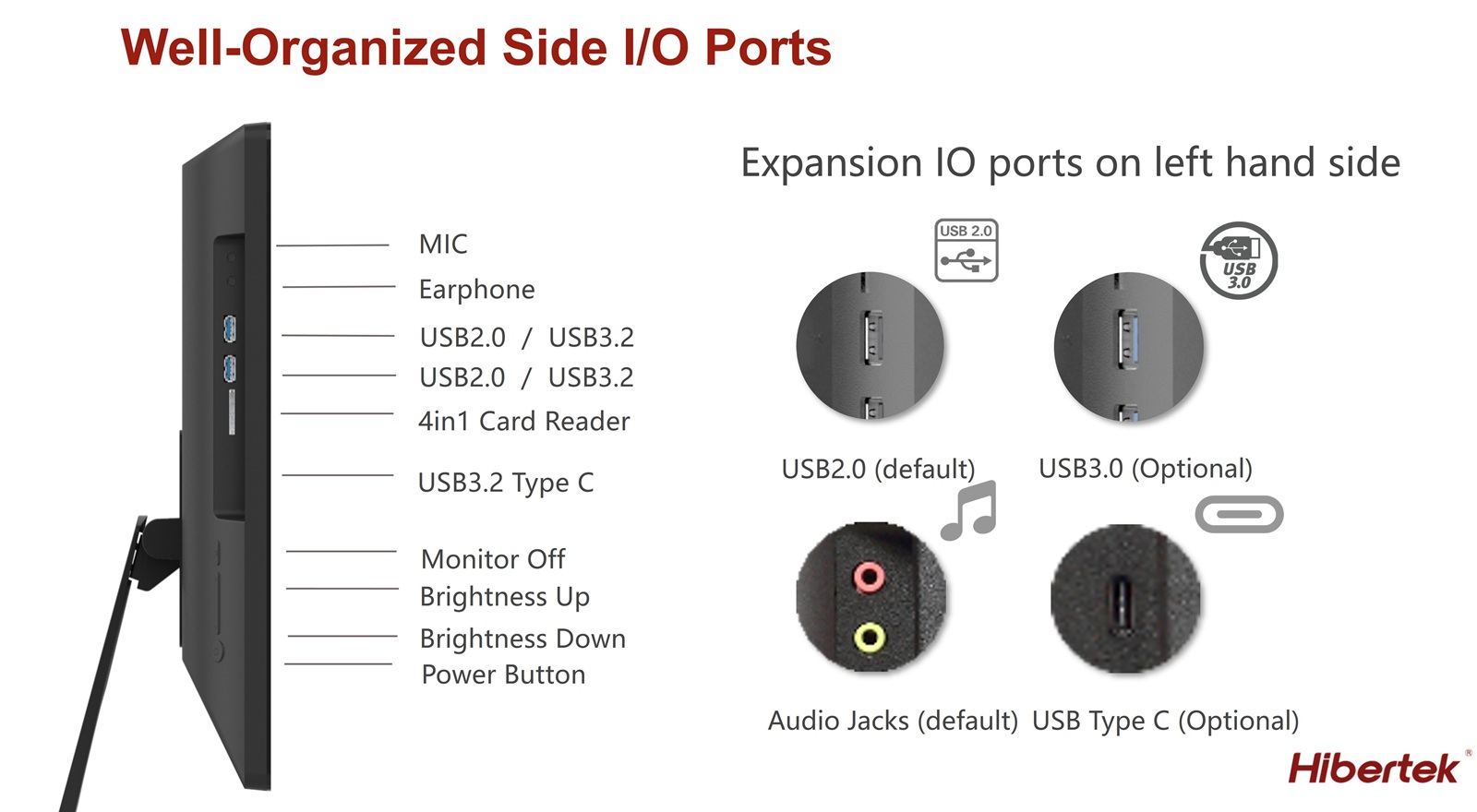

Side I/O Ports 2 x USB2.0 Type A
1 x USB3.2 Gen1 Type C
2 x Audio Jacks
1 x SD Card Reader (SD / SDHC / SDXC / MMC)
2 x USB3.2 Gen 1 Type A (Optional)
1 x Smart Card Reader (Optional)
Back I/O Ports H610 Thin Mini ITX
2 x USB 3.0 Gen 2 Type A
2 x USB 2.0 Type A
1 x DisplayPort
1 x HDMI out
1 x 1Gb Ethernet port
2 x Audio jacks
1 x DC Power Connector (Support 19V)
Extra I/O Ports -1 x Smart Card Reader
-1 x COM port
-2 x USB2.0 Type A
-2 x USB3.2 Gen1 Type A
-1 x HDMI-Out
Buttons Power Button
Brightness Up / Down
LCD On / Off
Speaker 2 x 3W Speakers
Power 120W External Power Adaptor With Power Cord
-Optional 65W/150W External Power Adaptor With Power Cord
-Optional 90W120W Internal Power Board With Power Cord
Security Kensington Lock
Chassis Intrusion (Optional)
Internal Battery with Power Board
Trusted Platform Module (TPM) 2.0 (Optional)
Trusted Platform Module (Firmware TPM) (Optional)
vPro Platform (Optional)
Operation System Windows 11 64-bit / Linux
Regular Stand 2-in-1 Stand
Tilt: -40°-100°
Height Adjustable
Stand		 Support 100 x 100mm VESA
Elevation: 130 mm
Tilt: -5°-17°
Swivel: -45°-45°
Rotation: -90°-90°

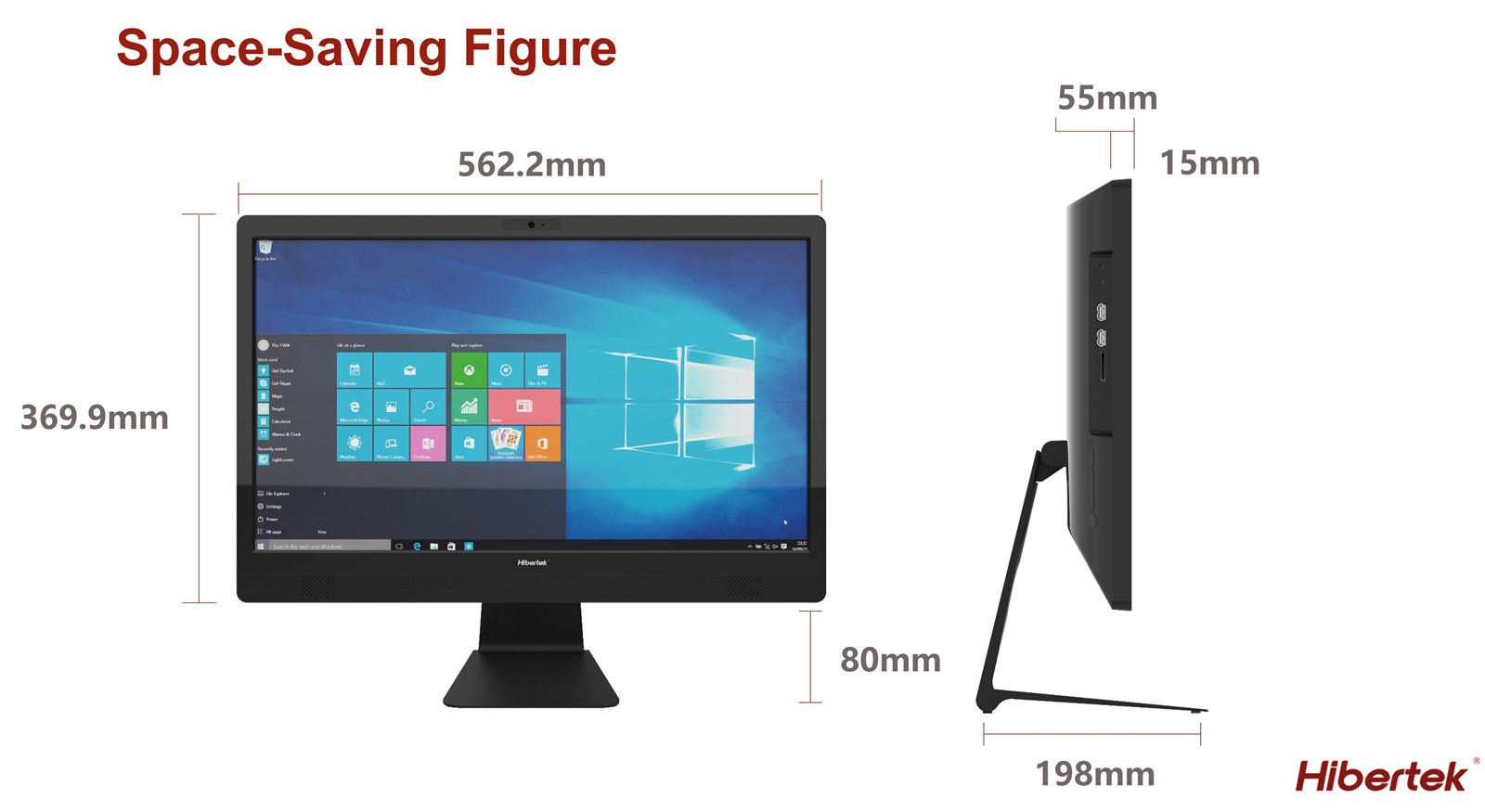

Dimension -562.2 (W) x 369.9 (H) x 56 (D) mm (without stand)
-562.2 (W) x 450 (H) x 198 (D) mm (with 2-in-1 Stand)
-562.2 (W) x 500 - 610 (H) x 245 (D) mm (with High Adjustable Stand)
Color Black / White
Certification CE, FCC, RoHS
