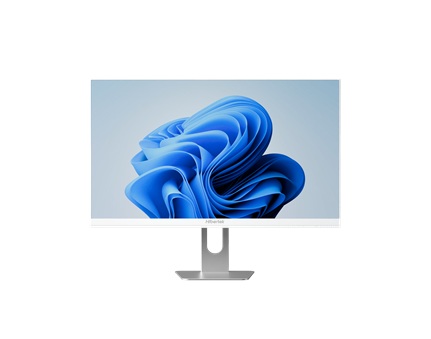

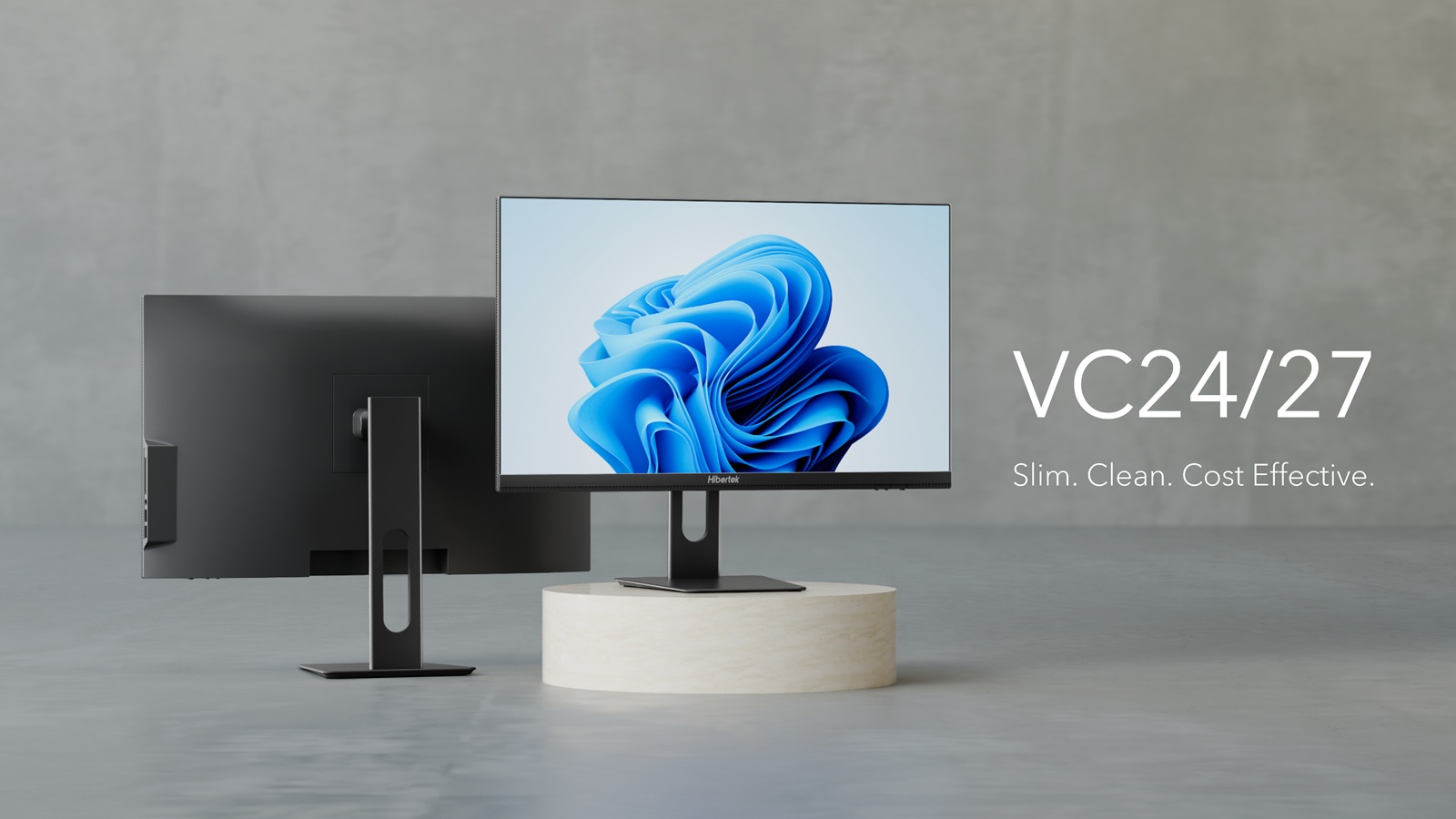

VC27 - 27" FHD/QHD dual stands and colors hands-on AIO

Ideal for education, government, or business use, with flexible CPU options and durable design

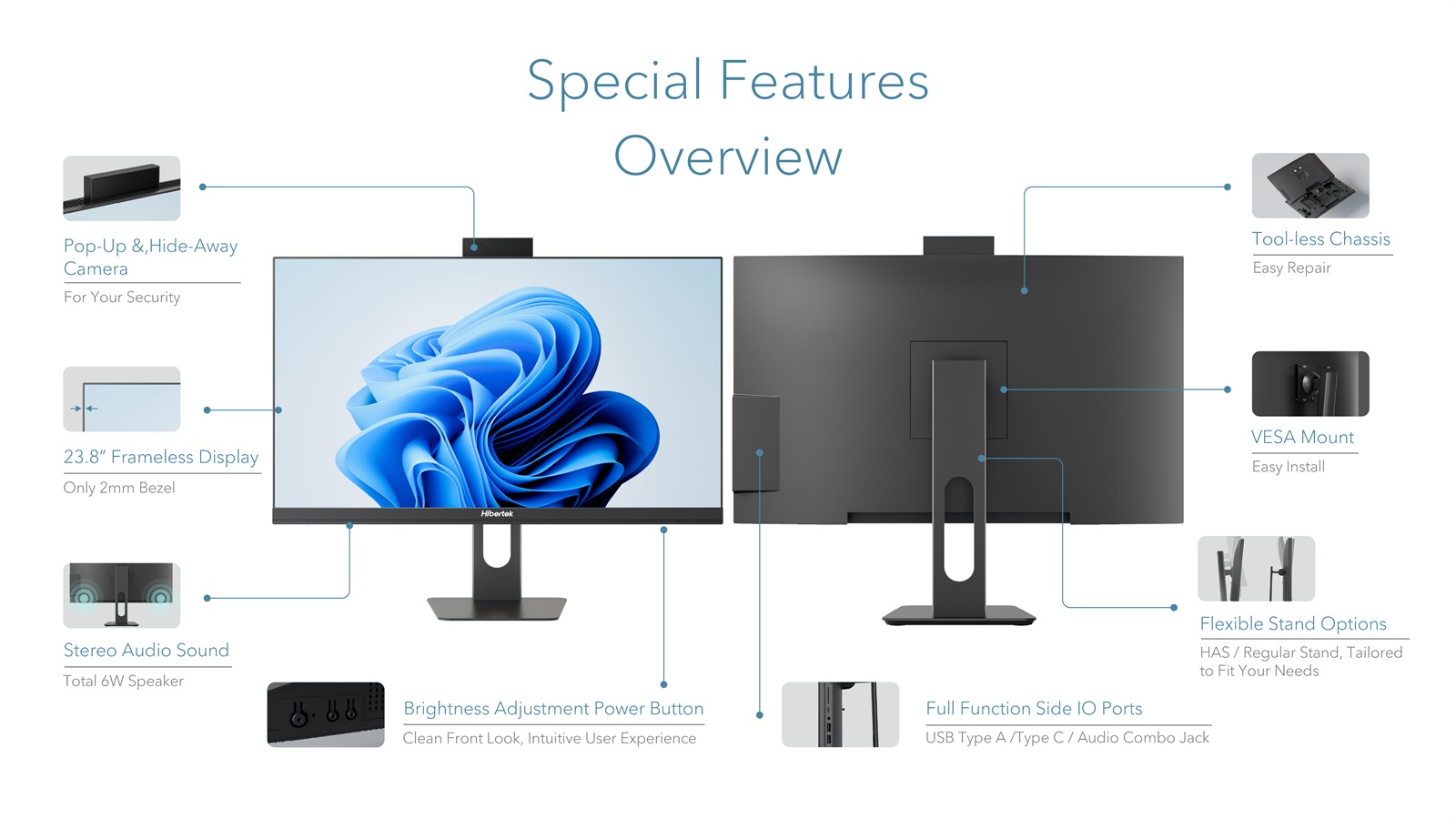

  • Flexible CPU

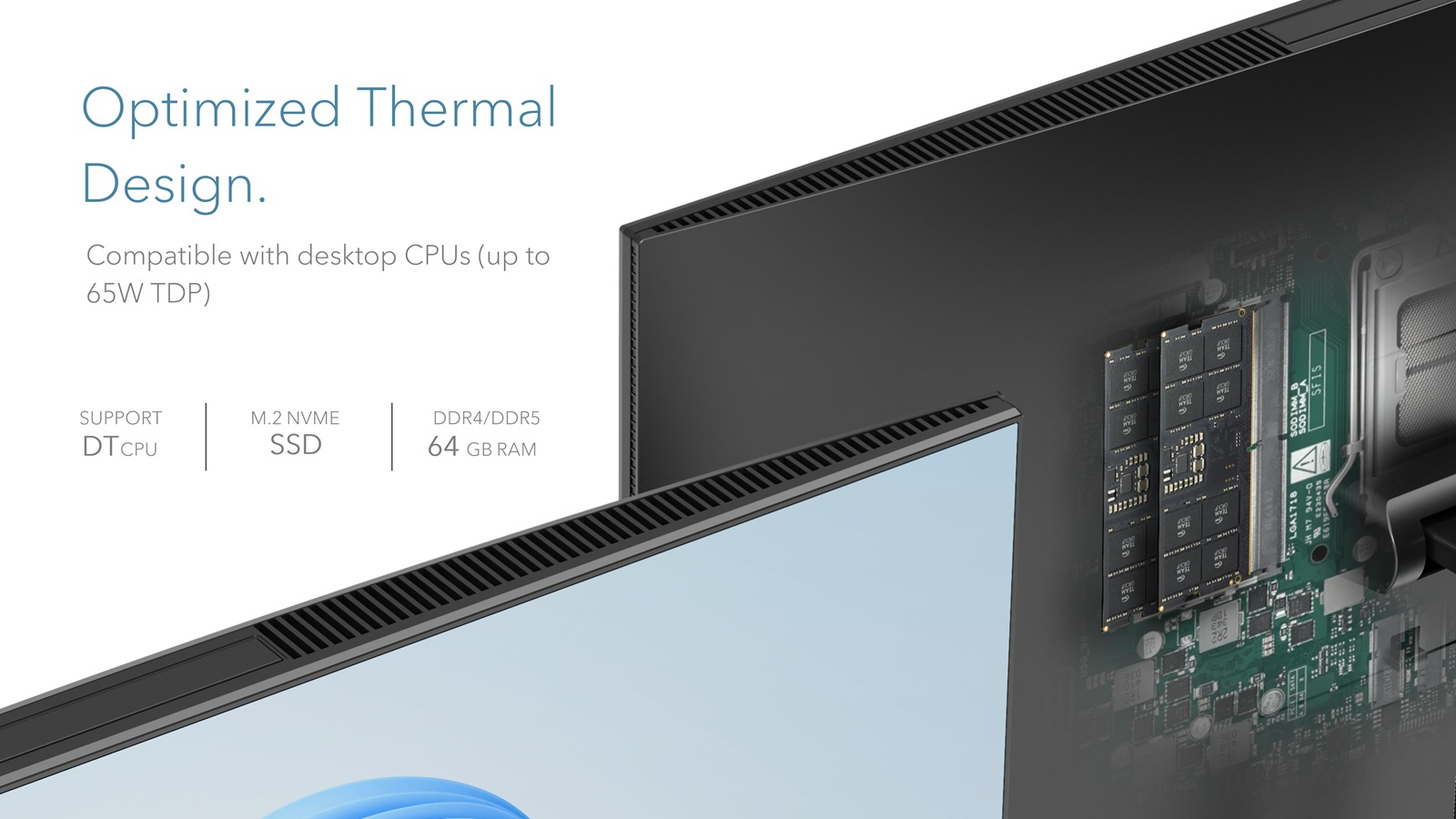

    Compatible with Intel/AMD, mobile or desktop CPUs. Thermal module supports up to 65W CPUs.

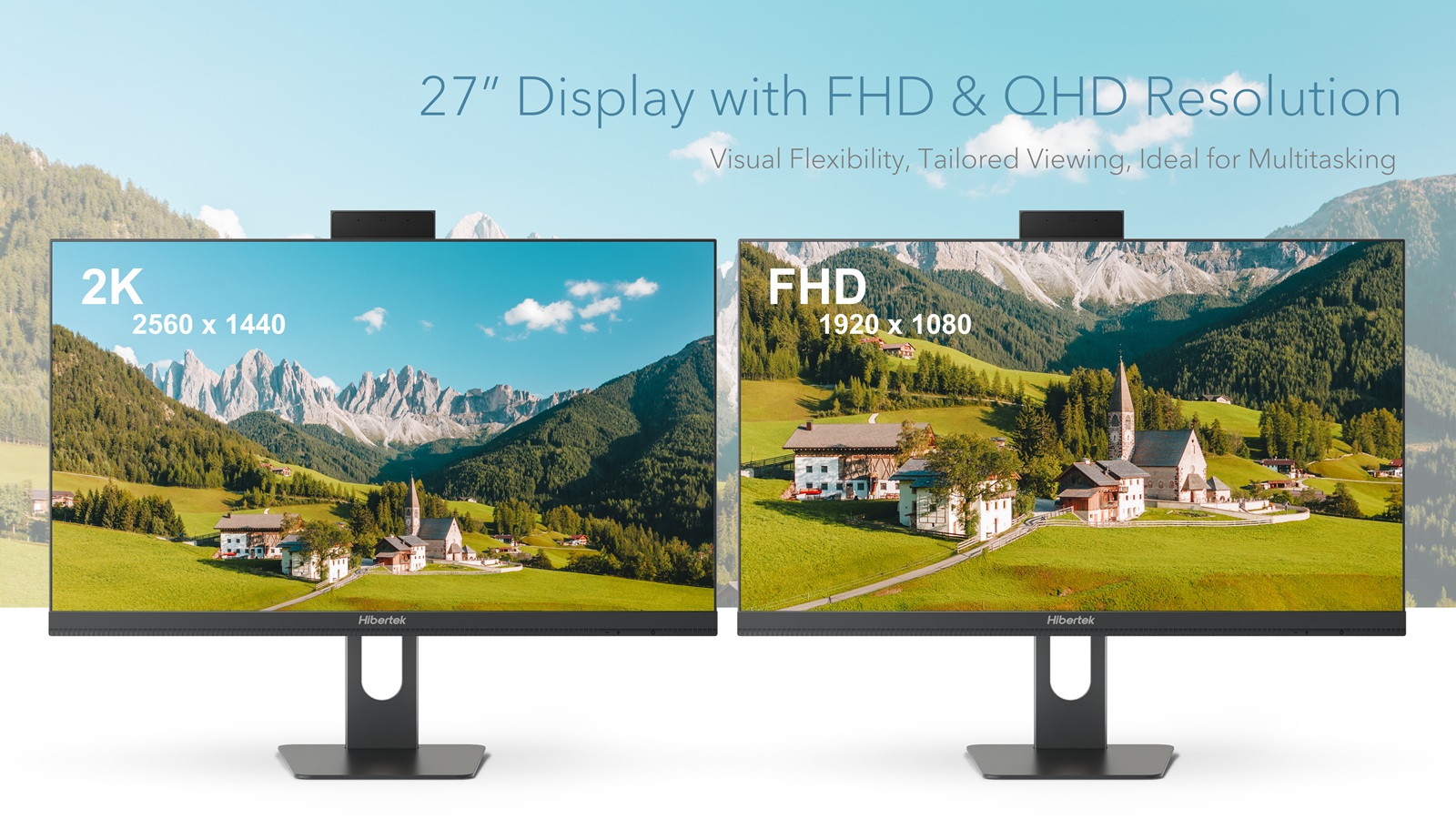

  • Display Options
    FHD (1920 x 1080) / QHD (2560 x 1440)
  • Full Function Side IO
    USB 3.2 Type C / Audio Combo jack / USB 3.2 Type A
  • Enhanced Connectivity
    Equipped with default Wi-Fi 6 for faster and more stable wireless connections.

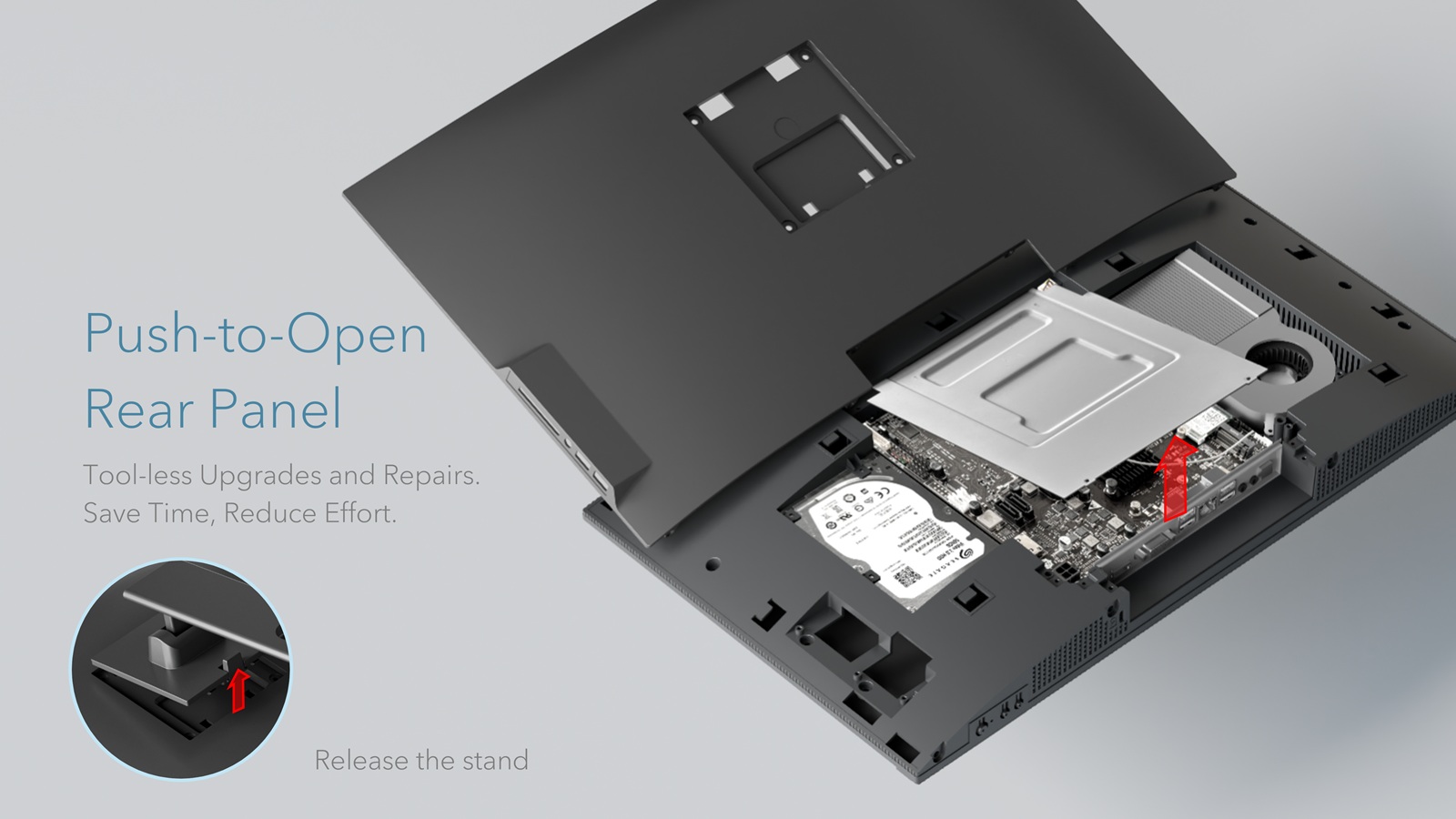

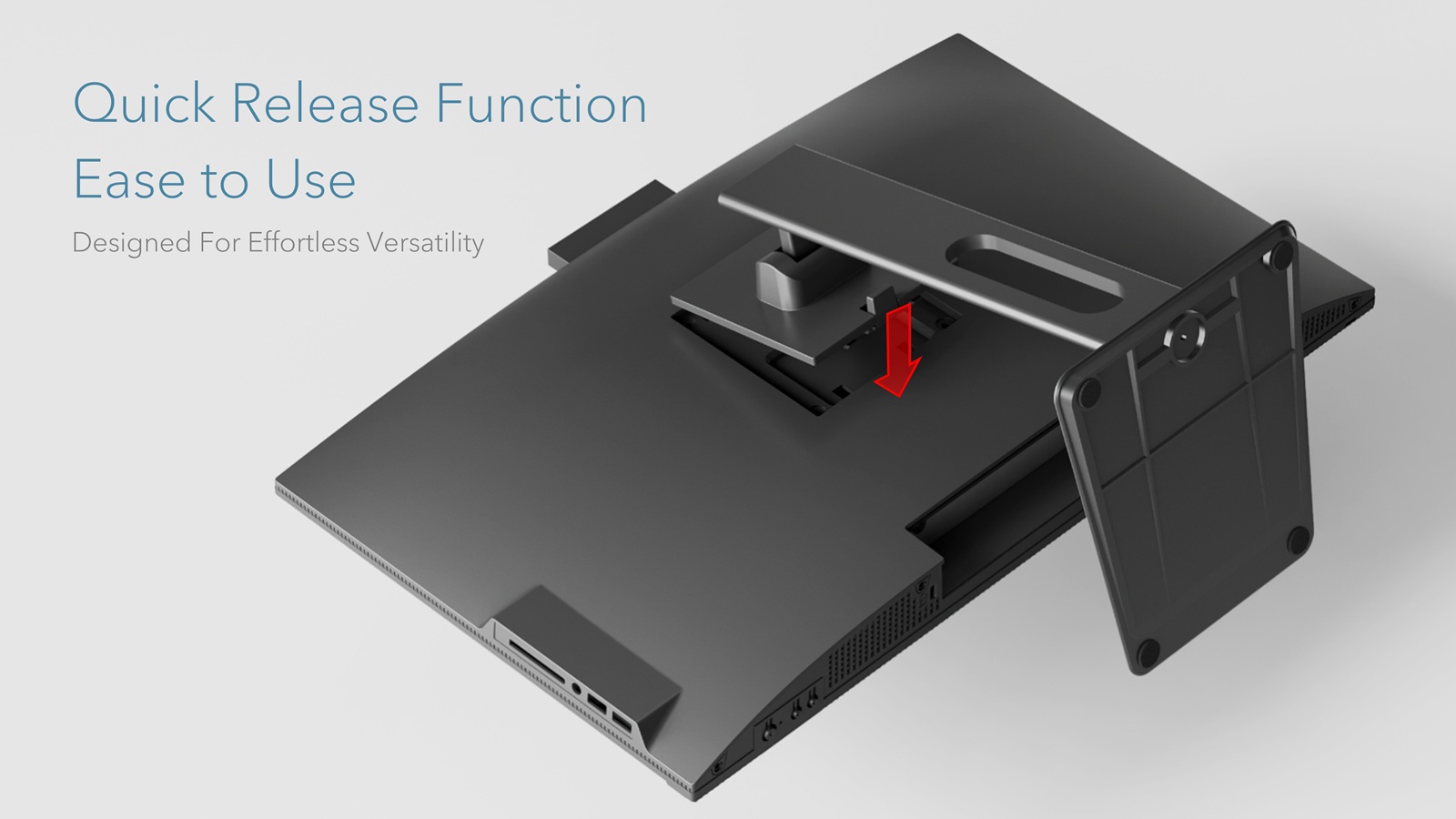

  • Tool-less Upgrades and Repairs
    Push-to-Open Rear Panel, Quick Release Design

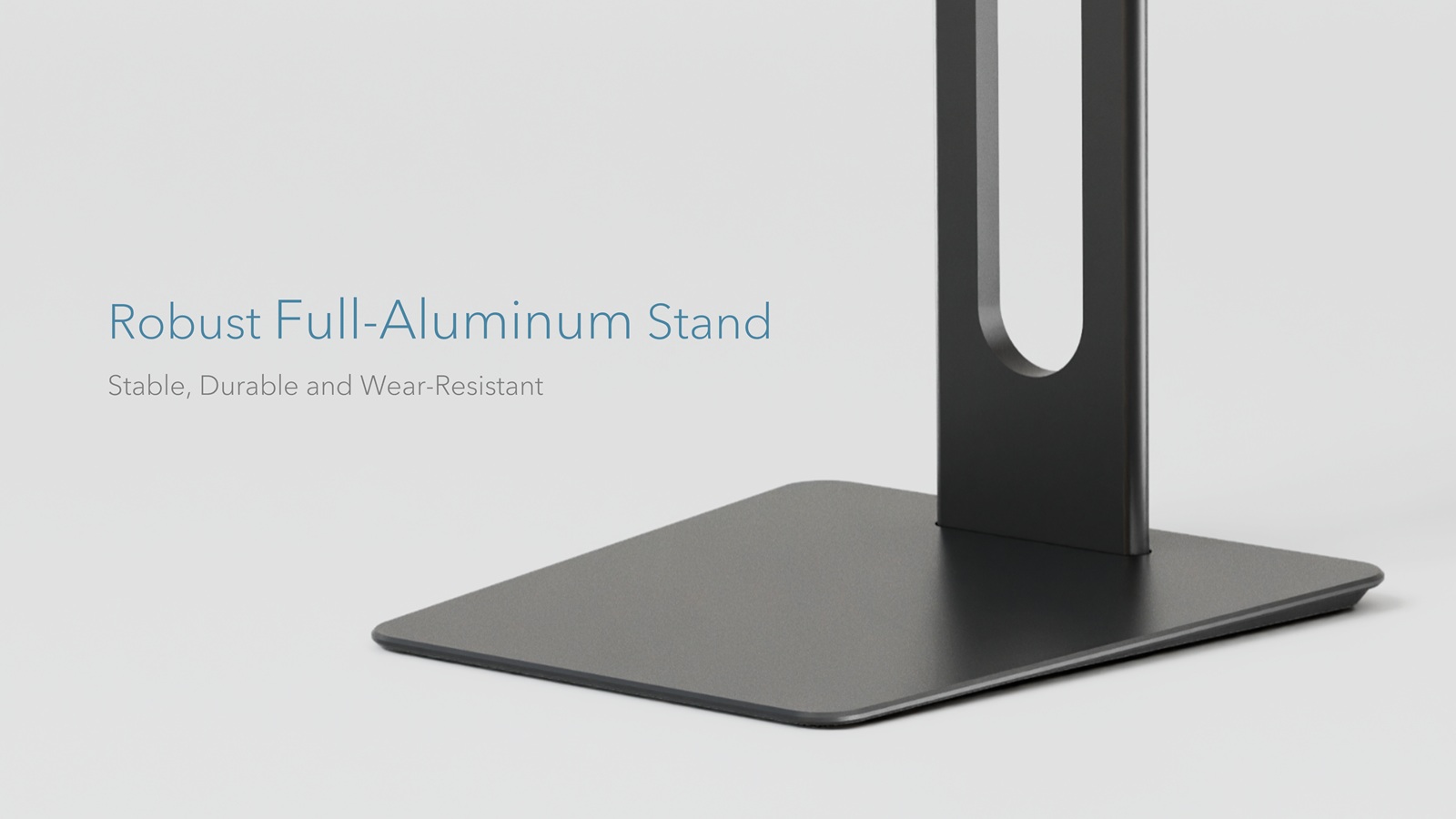

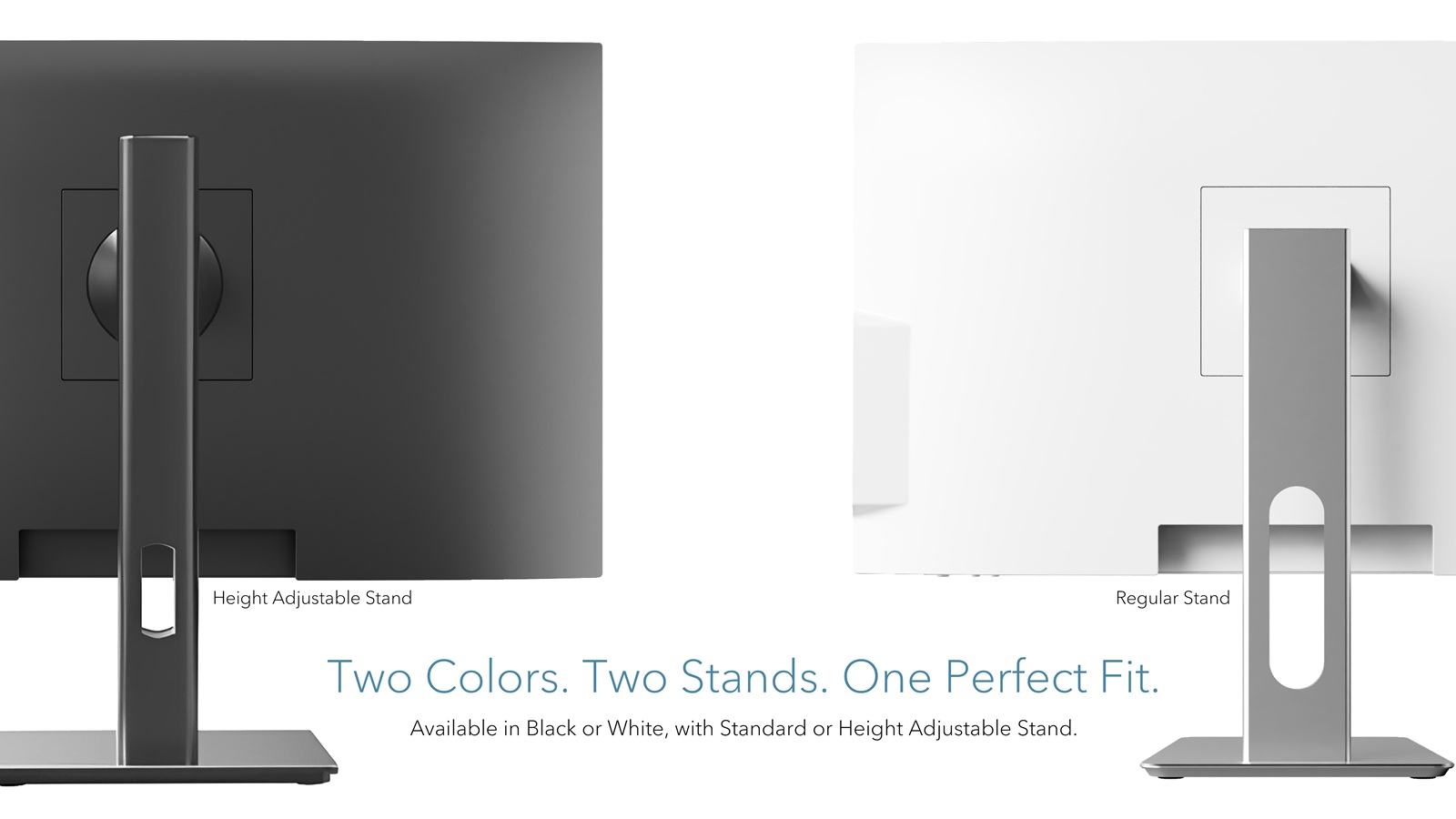

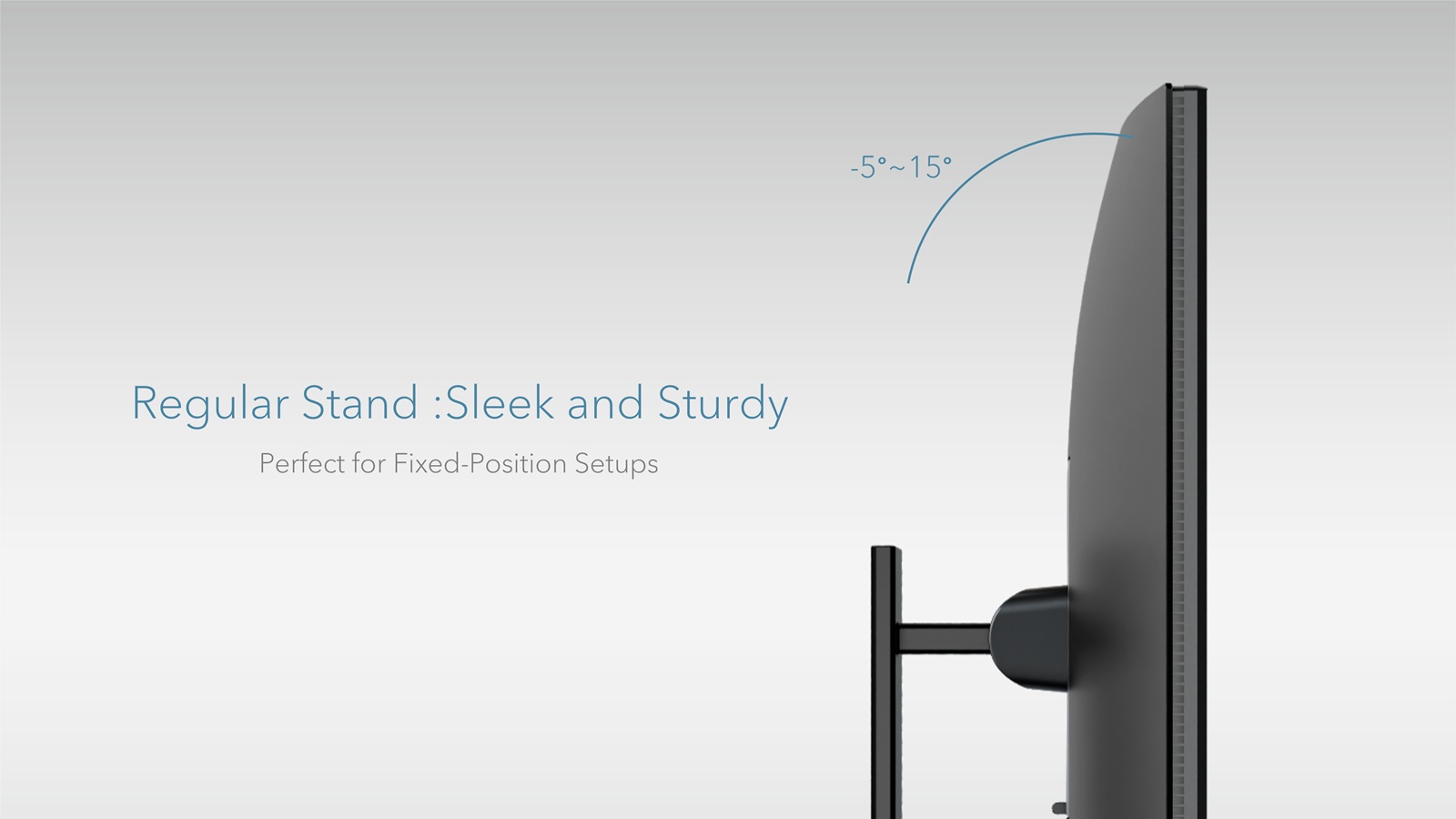

  • Regular Stand
    Robust Full-Aluminum, Stable, Durable and Wear-Resistant

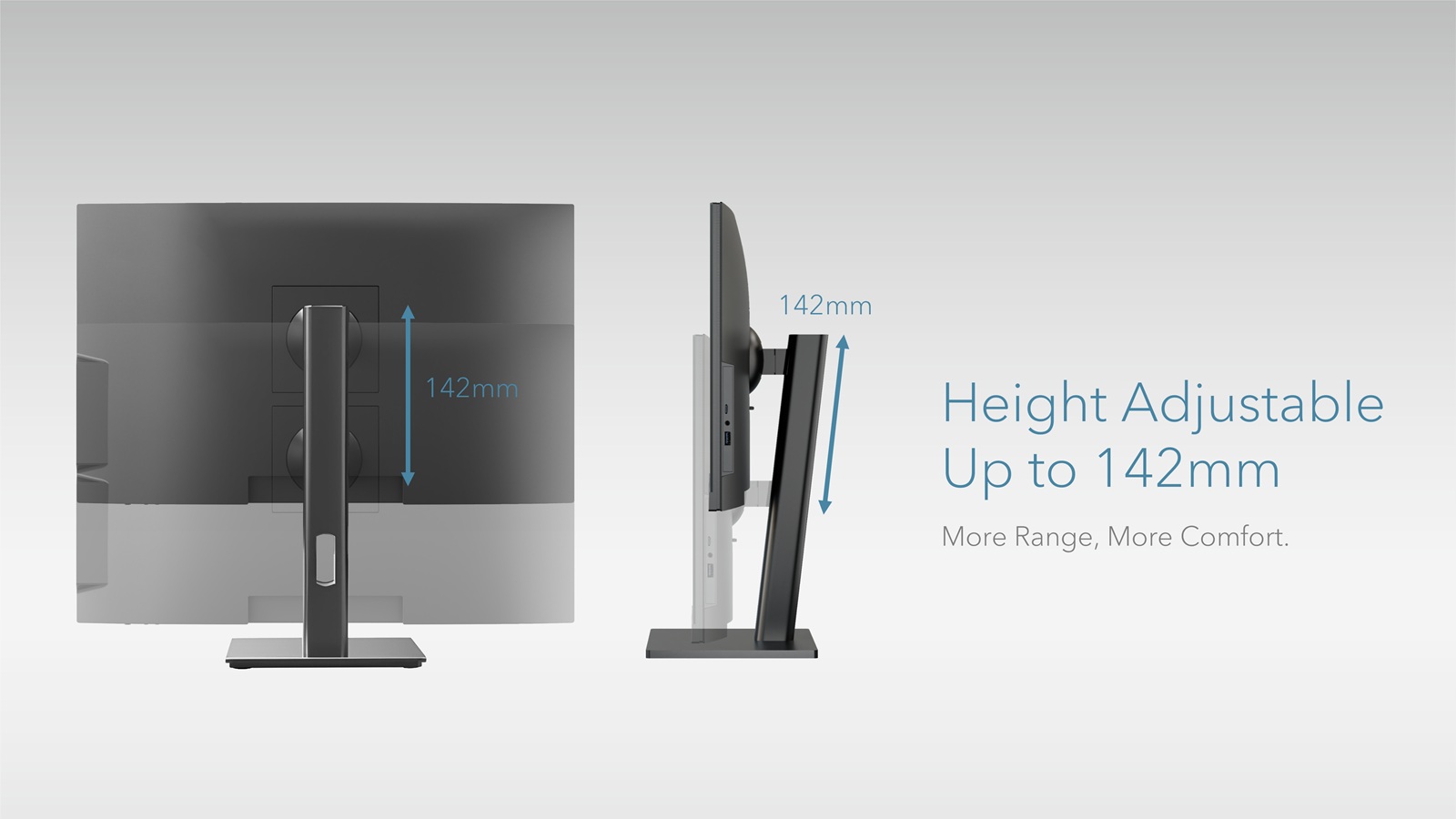

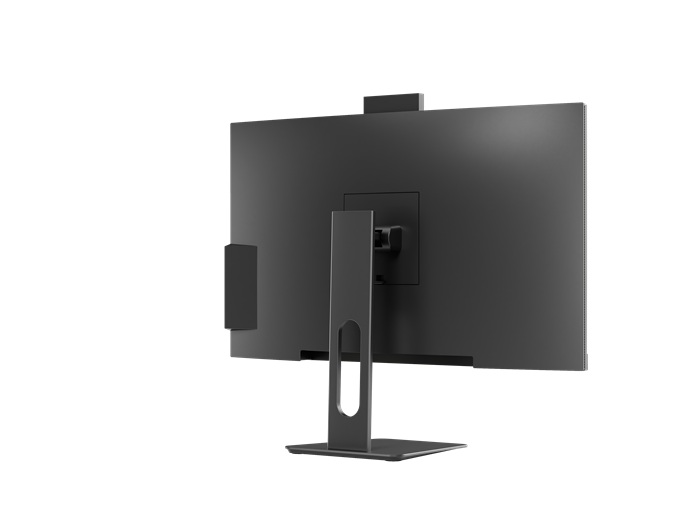

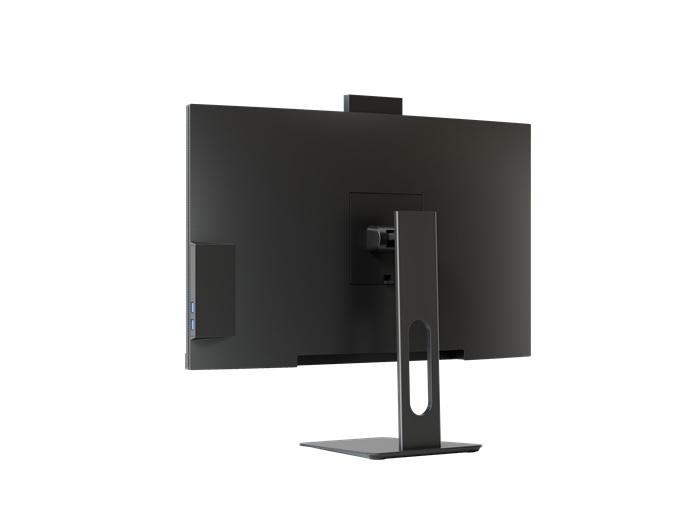

  • Height Adjustable Stand
    Up to 142mm, more range and comfort
  • Color
    Black / White

CPU/Memory Support

Drivers

BIOS

FAQ

Manual

User Guide
Model Name VC27
Display 27", IPS Level, FHD 1920x1080, 16:9 panel, 250 nits, zero brightness dot
Motherboard Support Standard 170 x 170 mm Thin Mini ITX Motherboard
(Intel H810/B760/Q670/B660/H610, Intel i7-13620H, AMD 7000/8000)
Processor Intel Socket LGA1851 for 15th / 14th Gen Intel Core i7 / i5 / i3, Pentium Gold / Silver and Celeron Processors (Up to 65W)
Graphics Integrated Graphics
Memory Follow Motherboard Specification
Support 2 x SO-DIMM Max. 64GB DDR4 / Max. 64GB DDR5
Storage Follow Motherboard Specification
1 x M.2 M Key 2280 NVMe SSD
Wireless Data Network M.2 Wi-Fi 5/6/6E/7 + Bluetooth 5.x

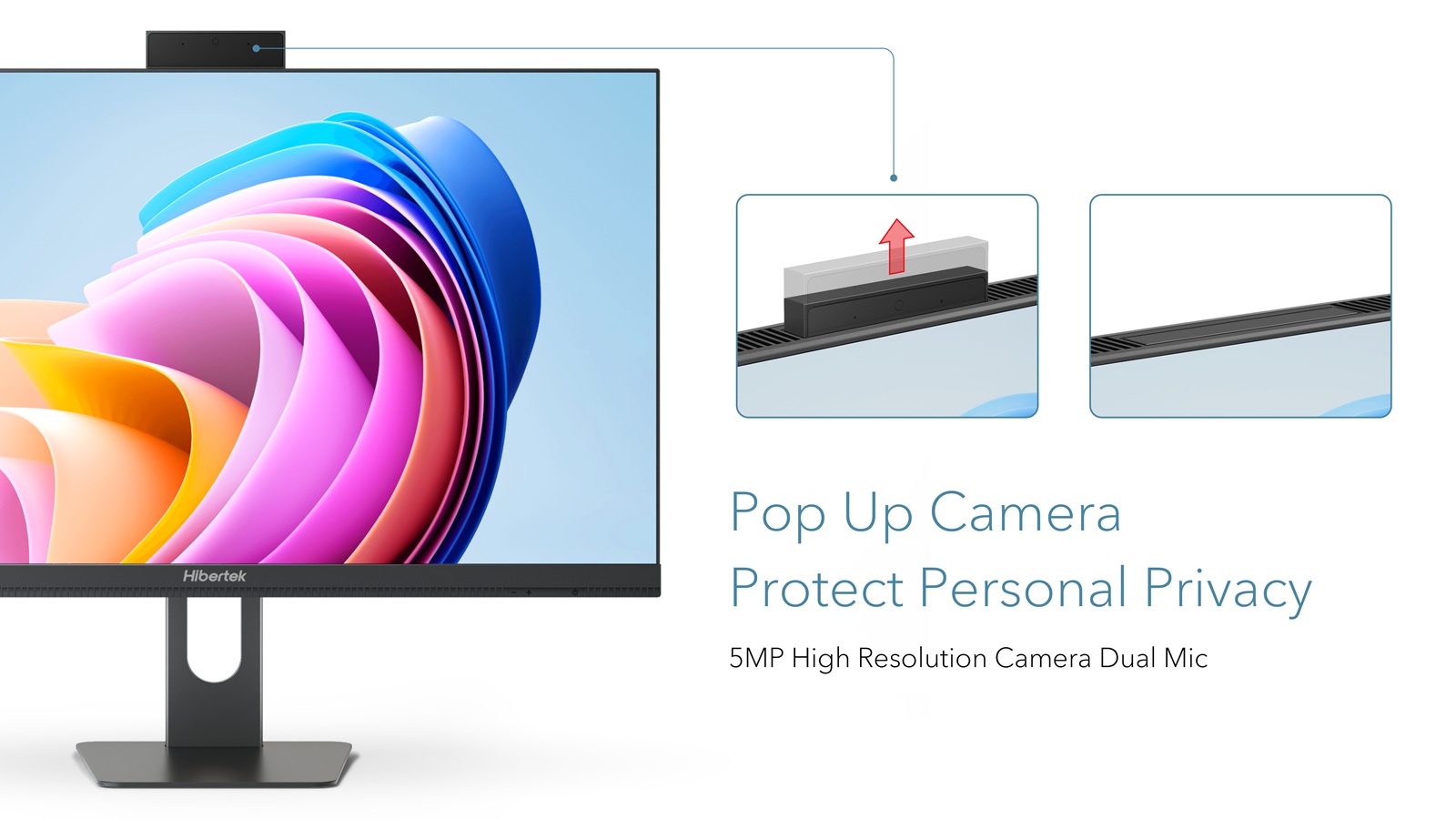

Camera + Microphone Pop up 5MP(2592 x 1944) Camera + Dual Mic
Back I/O Ports H610 Thin Mini ITX
2 x USB 3.2 Gen1 Type A
2 x USB 2.0 Type A
1 x DisplayPort
1 x HDMI out
1 x 1Gb Ethernet port
2 x Audio jacks
1 x DC Power Connector (Support 19V)
Side I/O Ports 1 x USB 3.2 Gen1 Type C
1 x Audio Combo Jack
1 x USB 3.2 Gen1 Type A
Buttons Power Button
Brightness Up / Down
Speaker 2 x 3W Speakers
Power 120W Adaptor
-Optional 150W Adaptor
Security Kensington Lock
Chassis Intrusion
Cable Cover
Operation System Windows 11 64-bit / Linux

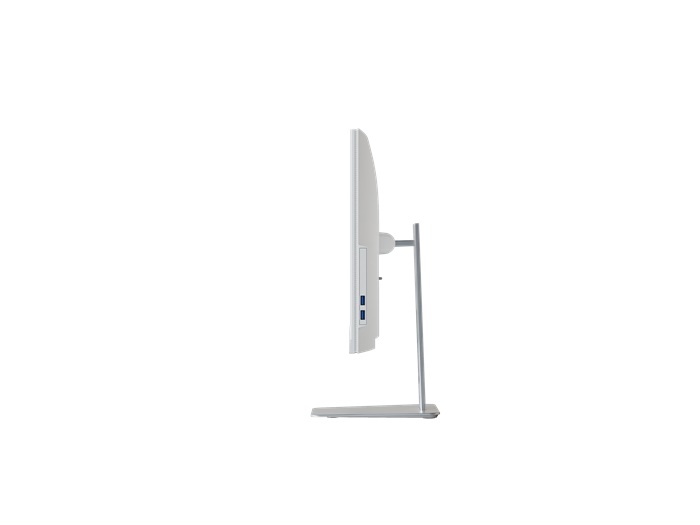

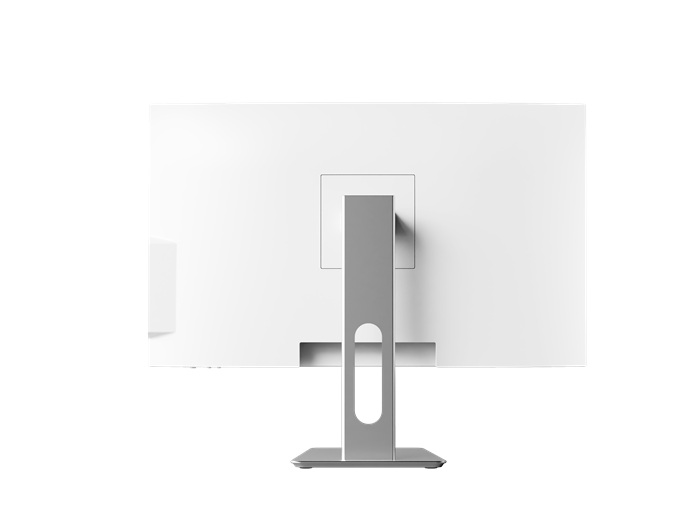

Regular Stand Aluminum Standard Stand
Tilt: -5°-15°

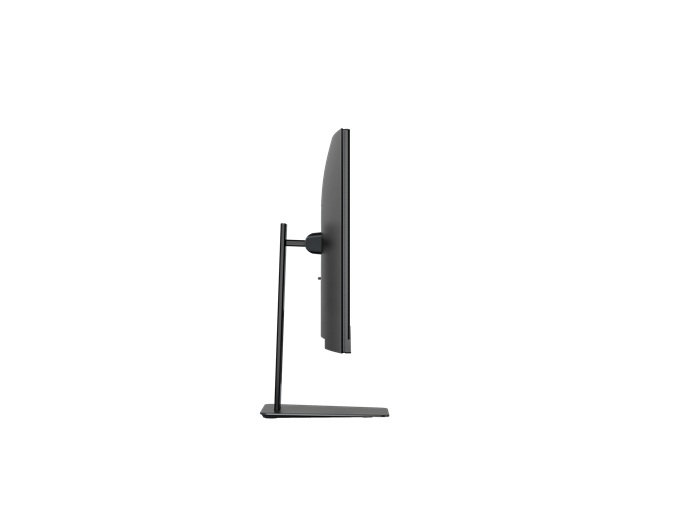

Height Adjustable
Stand		 Adjust Up to 142mm
Elevation: 142 mm
Tilt: -5°-20°
Swivel: -30°-30°
Rotation: 0°-90°
Dimension -540.6 (W) x 325 (H) x 54 (D) mm (without stand)
-540.6 (W) x 459.22 (H) x 200.09 (D) mm (with Regular stand)
-540.6 (W) x 496.79 (H) x 206.97 (D) mm (with Height Adjustable stand)
Color Black / White
