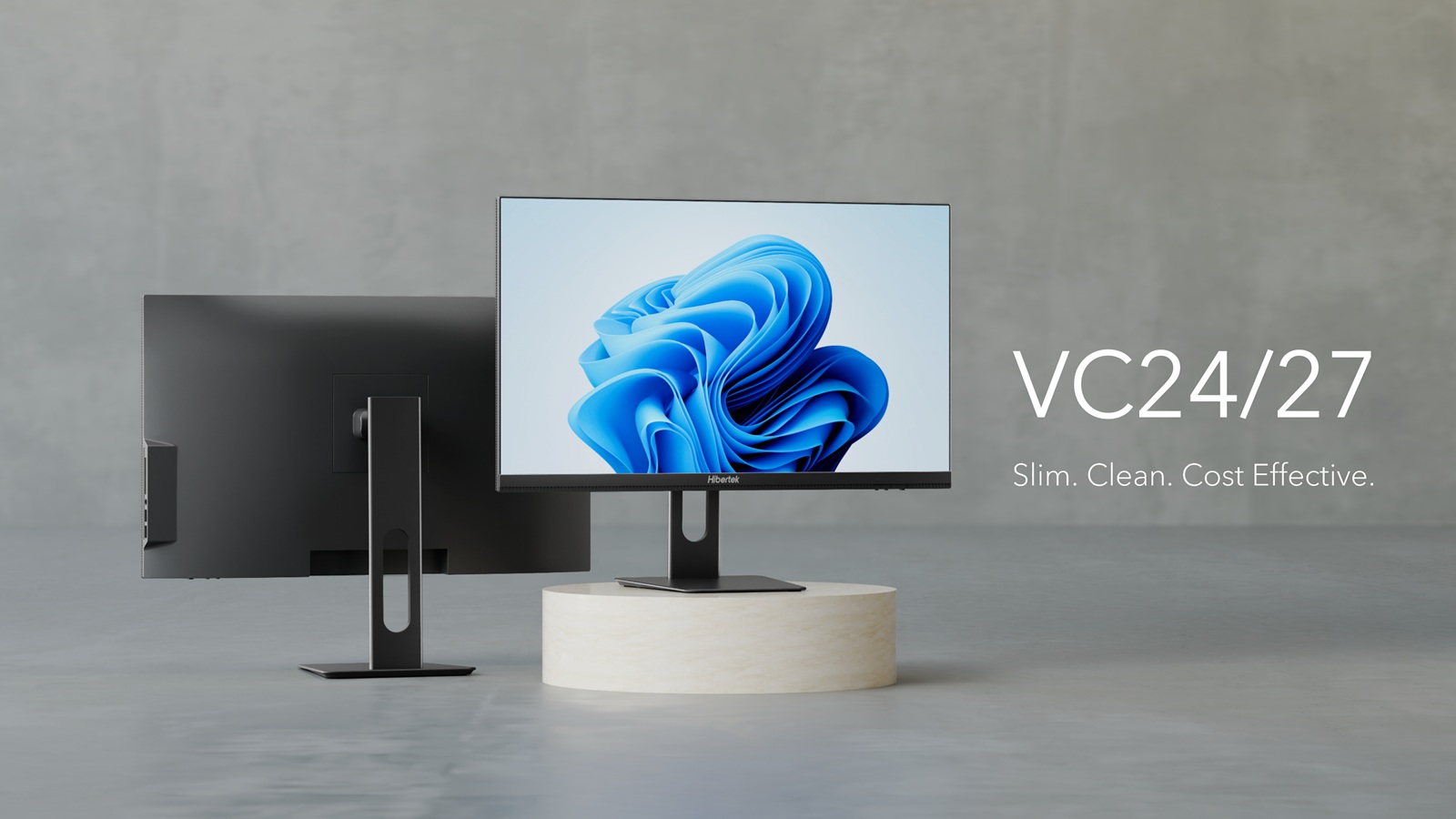

VC24 - 23.8" WIFI 6 5MP Camera Cost-effective AIO

65W Ultra 9/Core i9/Ryzen7 CPU, USB3.2 Gen1 Side IO, Durable Chassis, Steady Stand
  • Flexible CPU

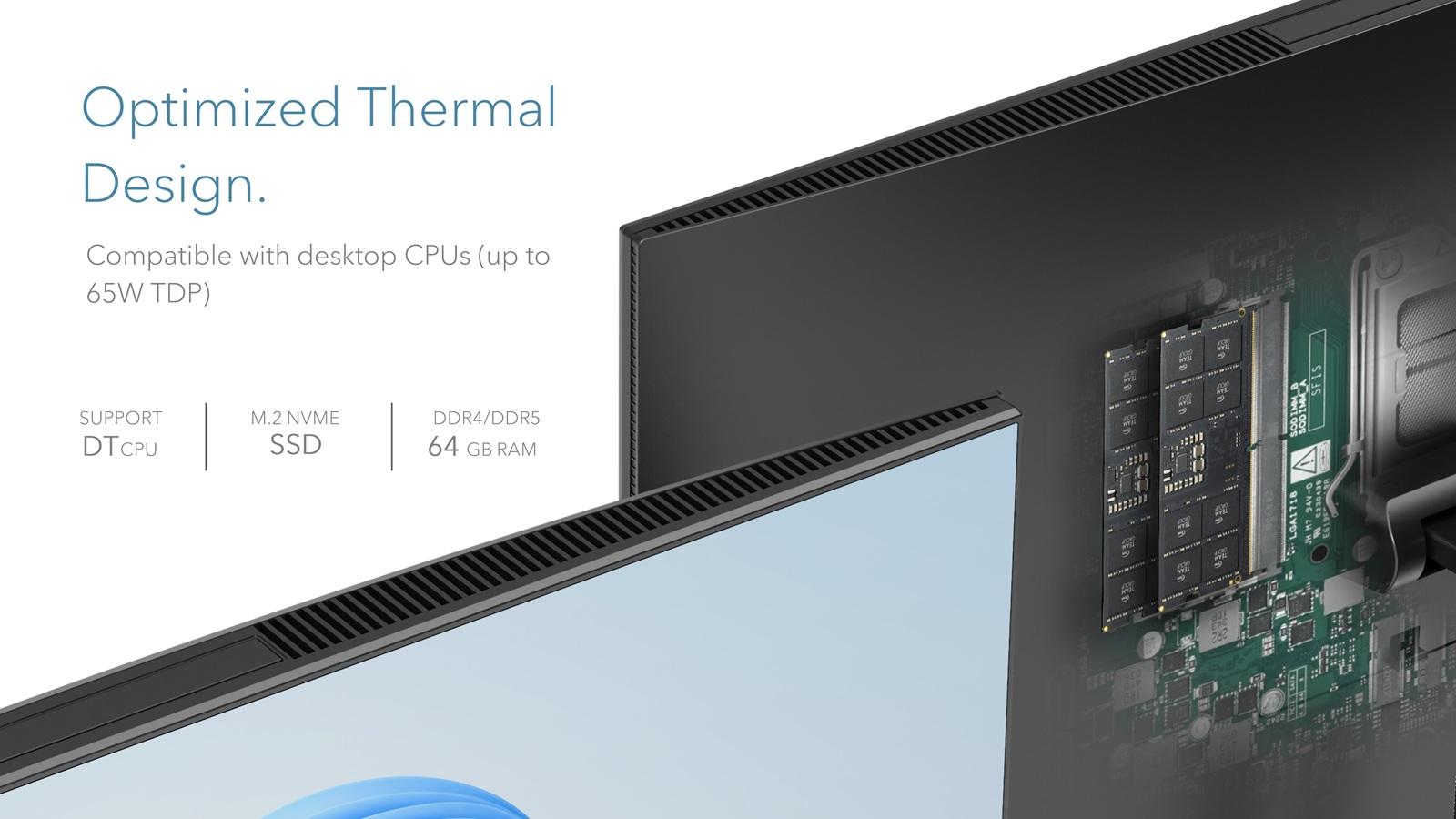

    Compatible with Intel/AMD, mobile or desktop CPUs. Thermal module supports up to 65W CPUs.
  • Full Function Side IO
    USB 3.2 Type C / Audio Combo jack / USB 3.2 Type A
  • Enhanced Connectivity
    Equipped with default Wi-Fi 6 for faster and more stable wireless connections

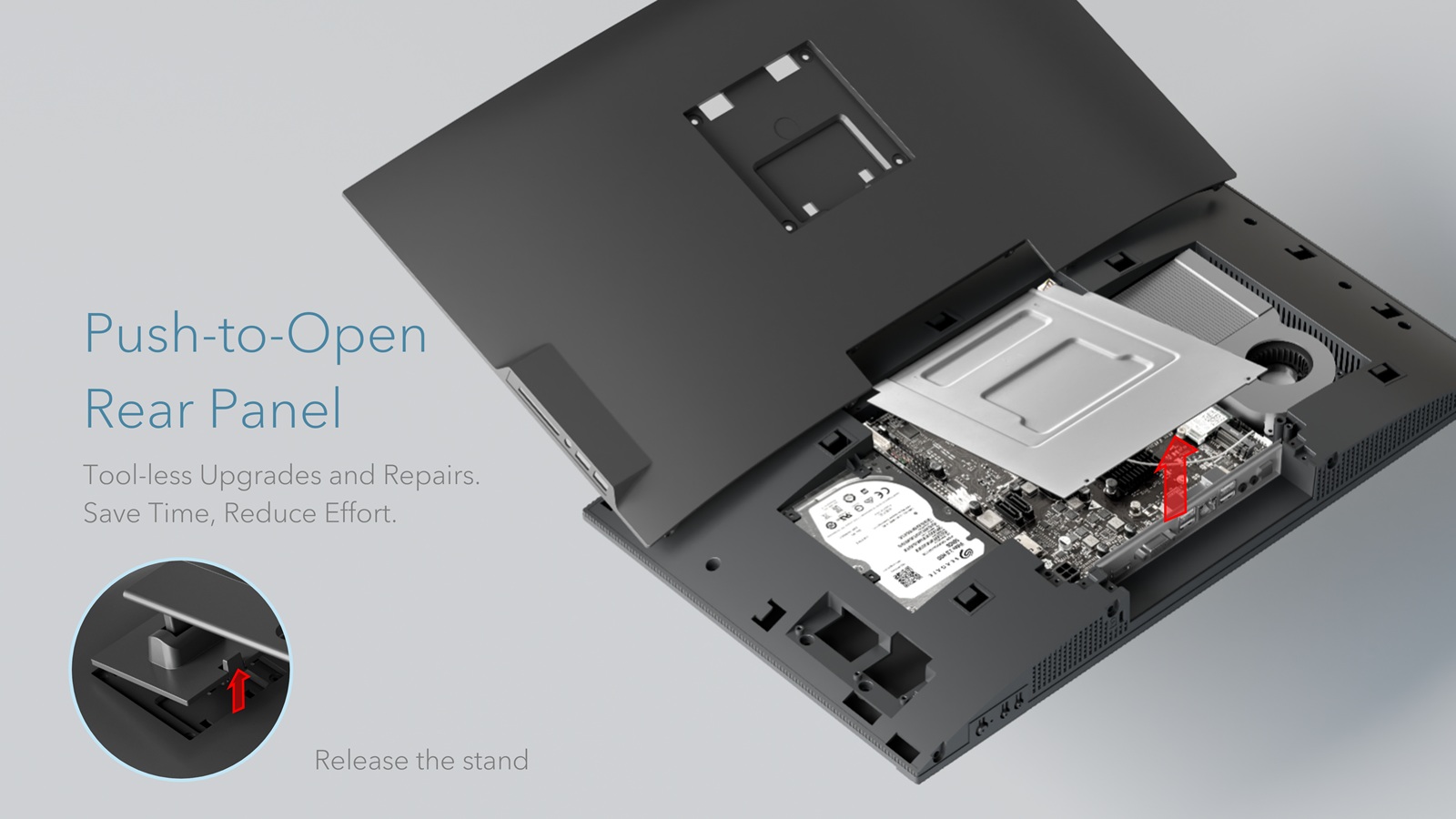

  • Tool-less Upgrades and Repairs

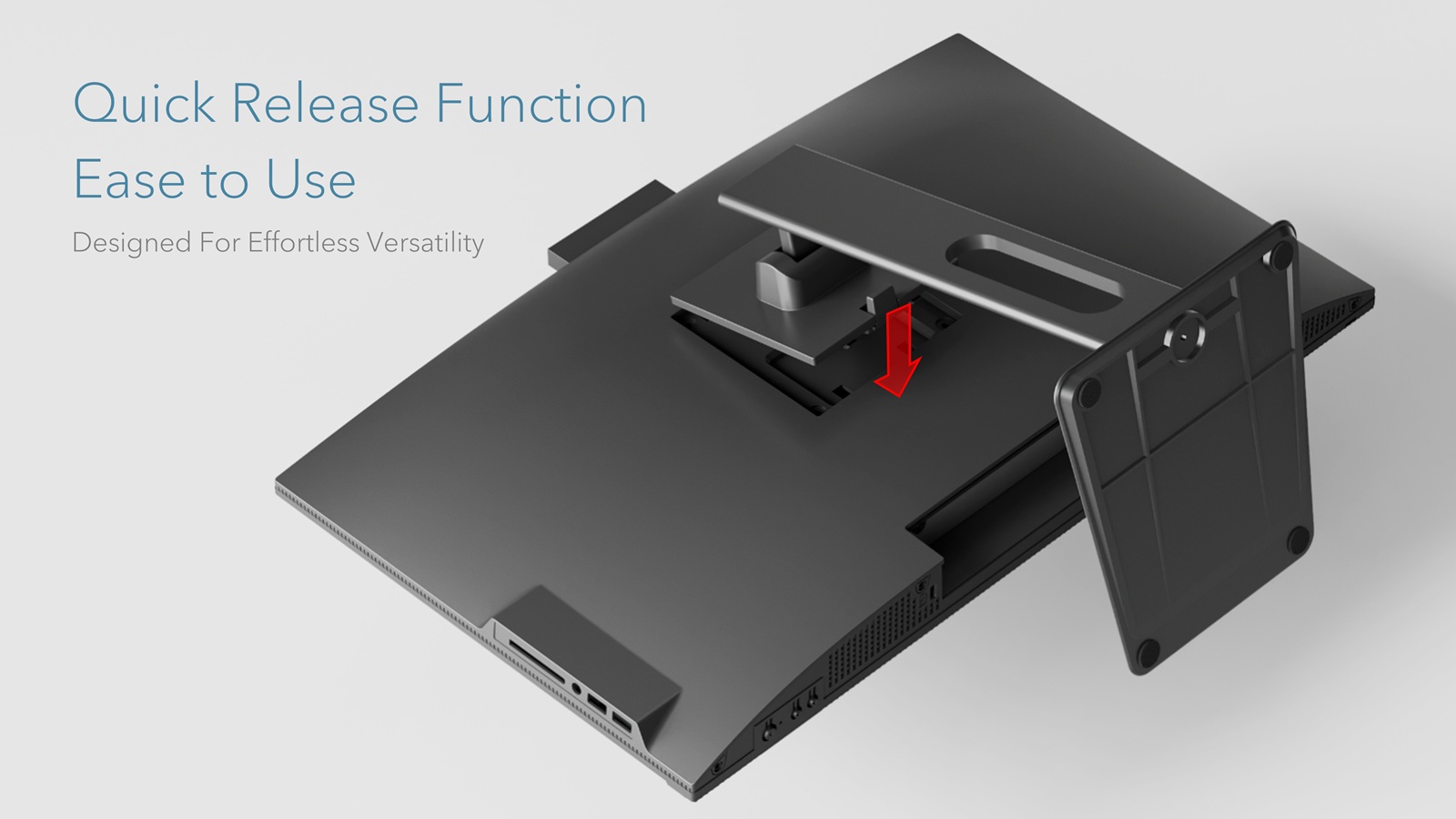

    Push-to-Open Rear Panel, Quick Release Design

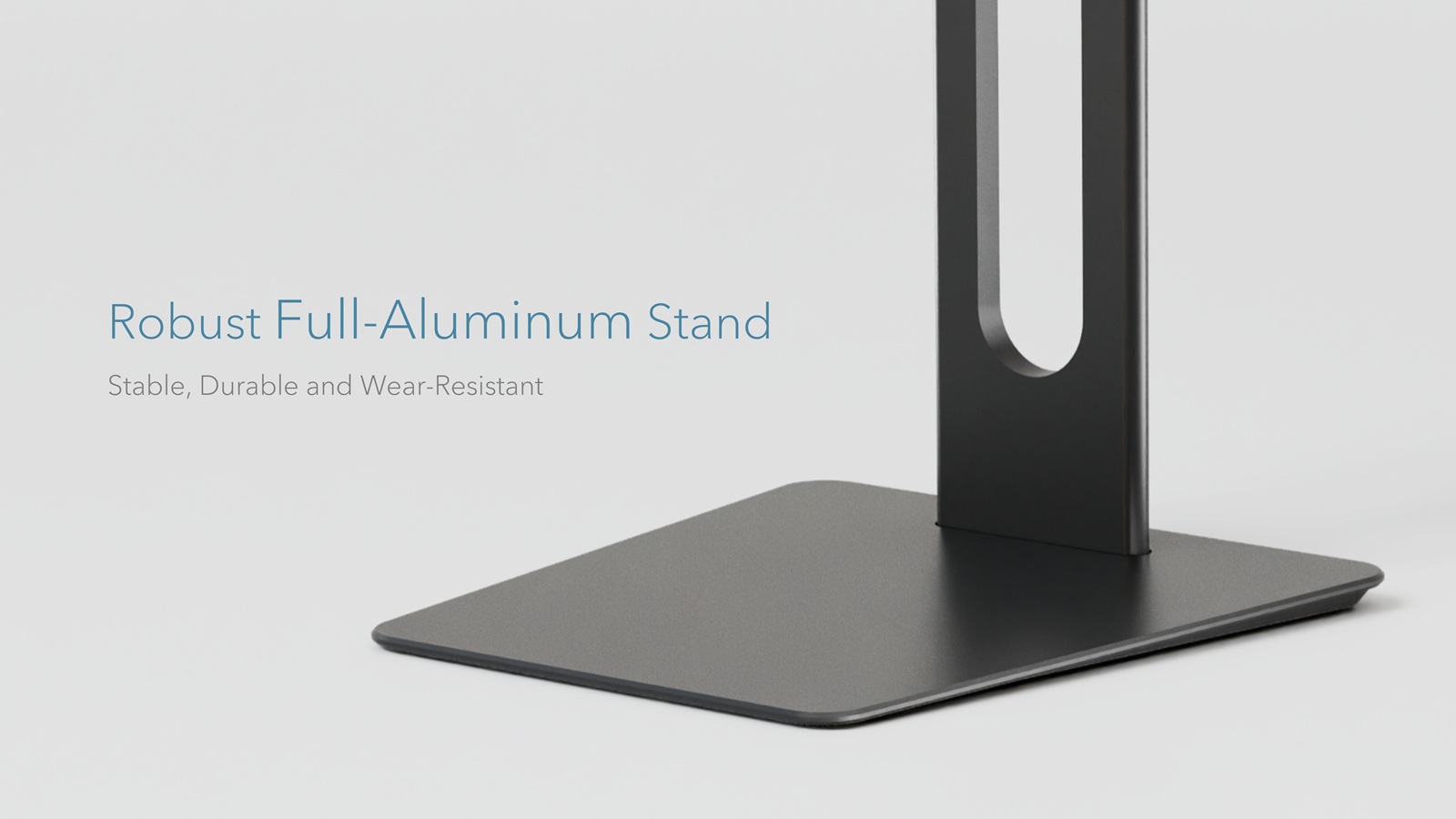

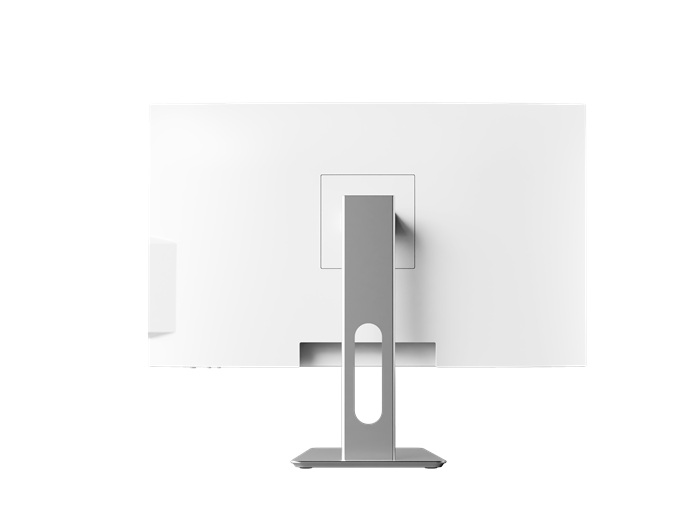

  • Regular Stand
    Robust Full-Aluminum, Stable, Durable and Wear-Resistant

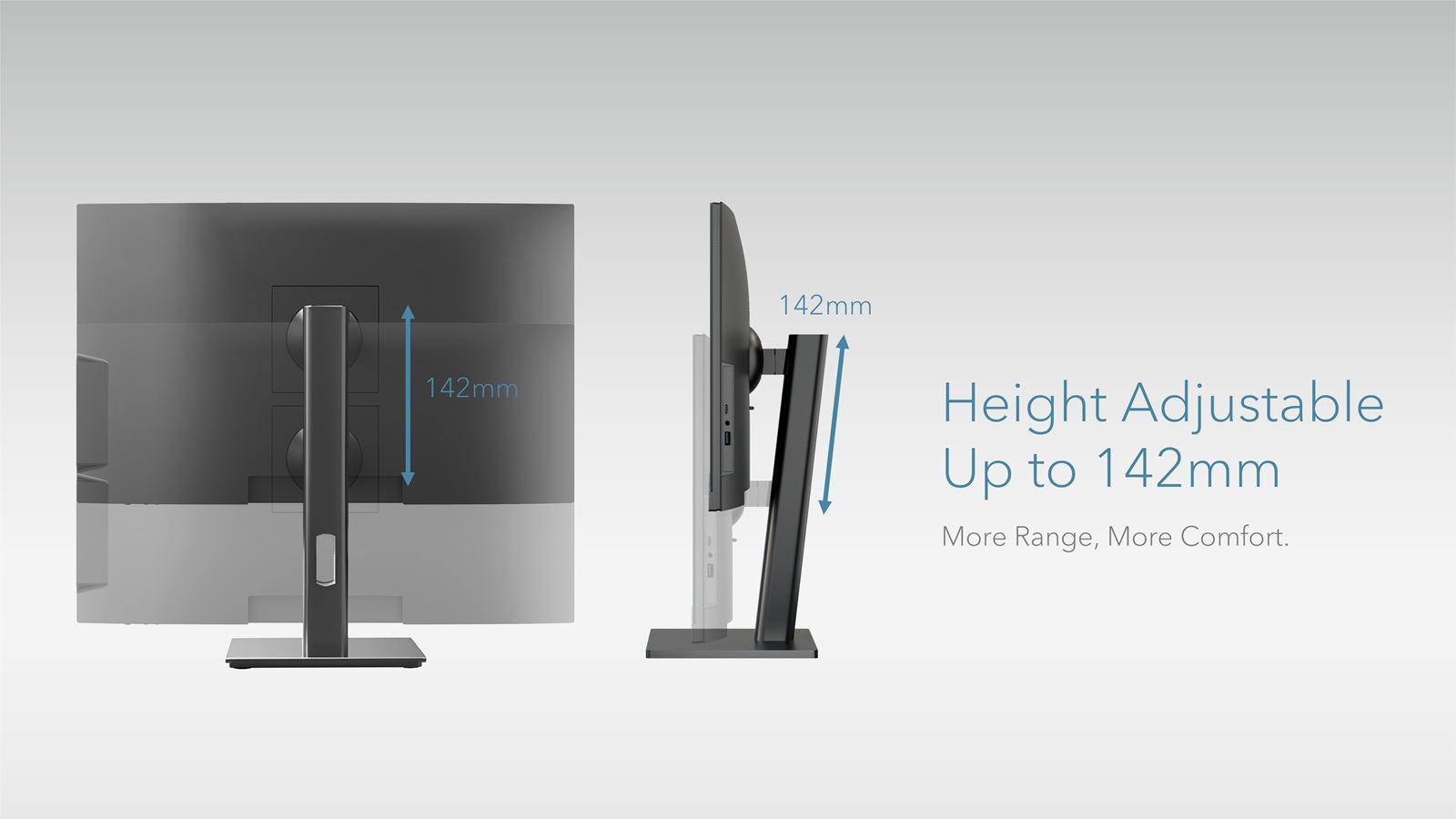

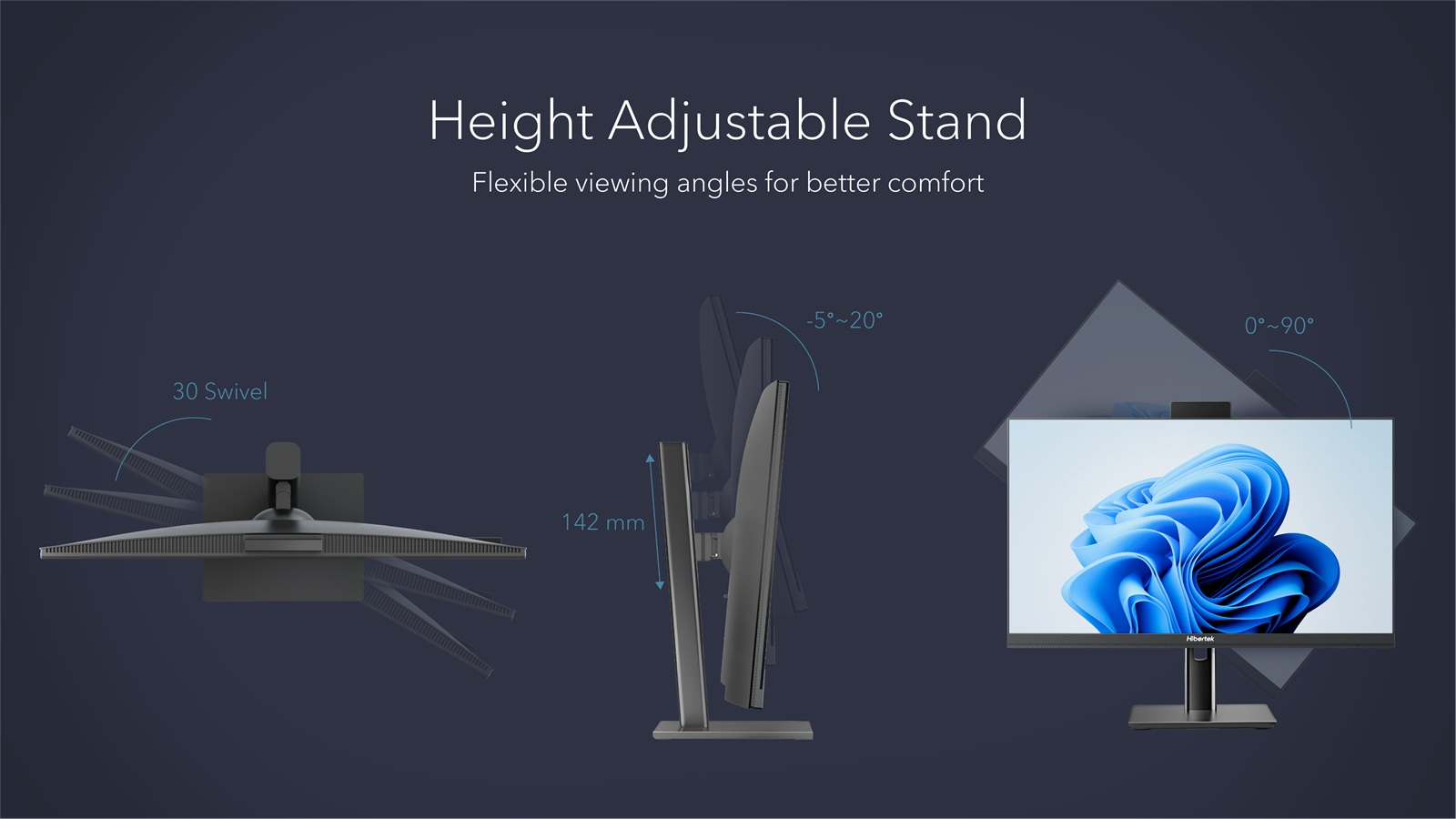

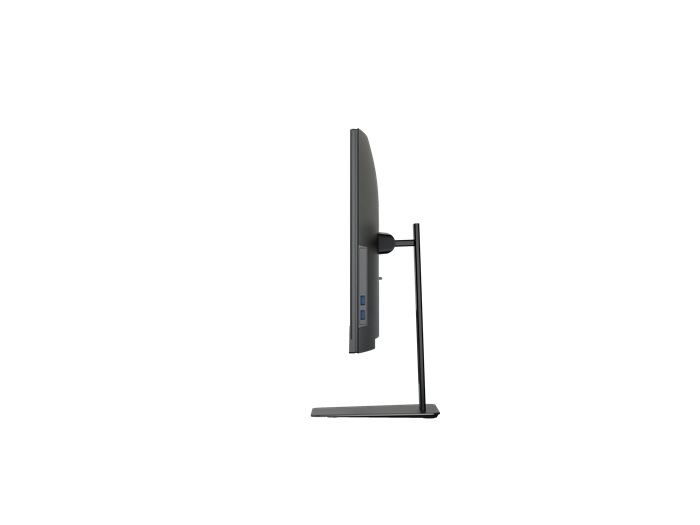

  • Height Adjustable Stand
    Up to 142mm, more range and comfort

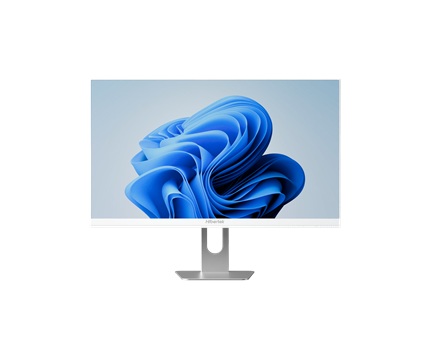

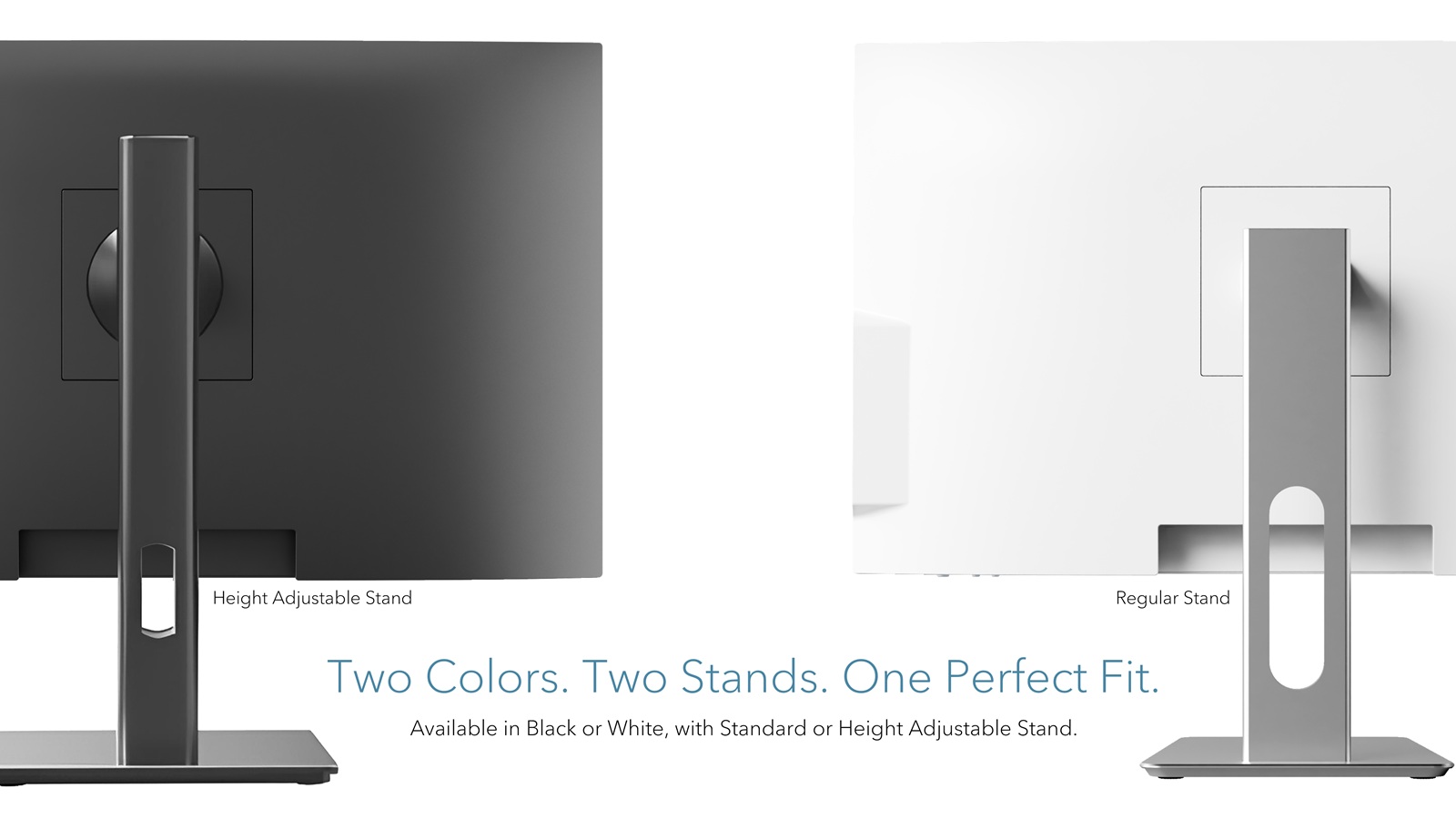

  • Color
    Black / White

CPU/Memory Support

Drivers

BIOS

FAQ

Manual

User Guide
Model Name VC24

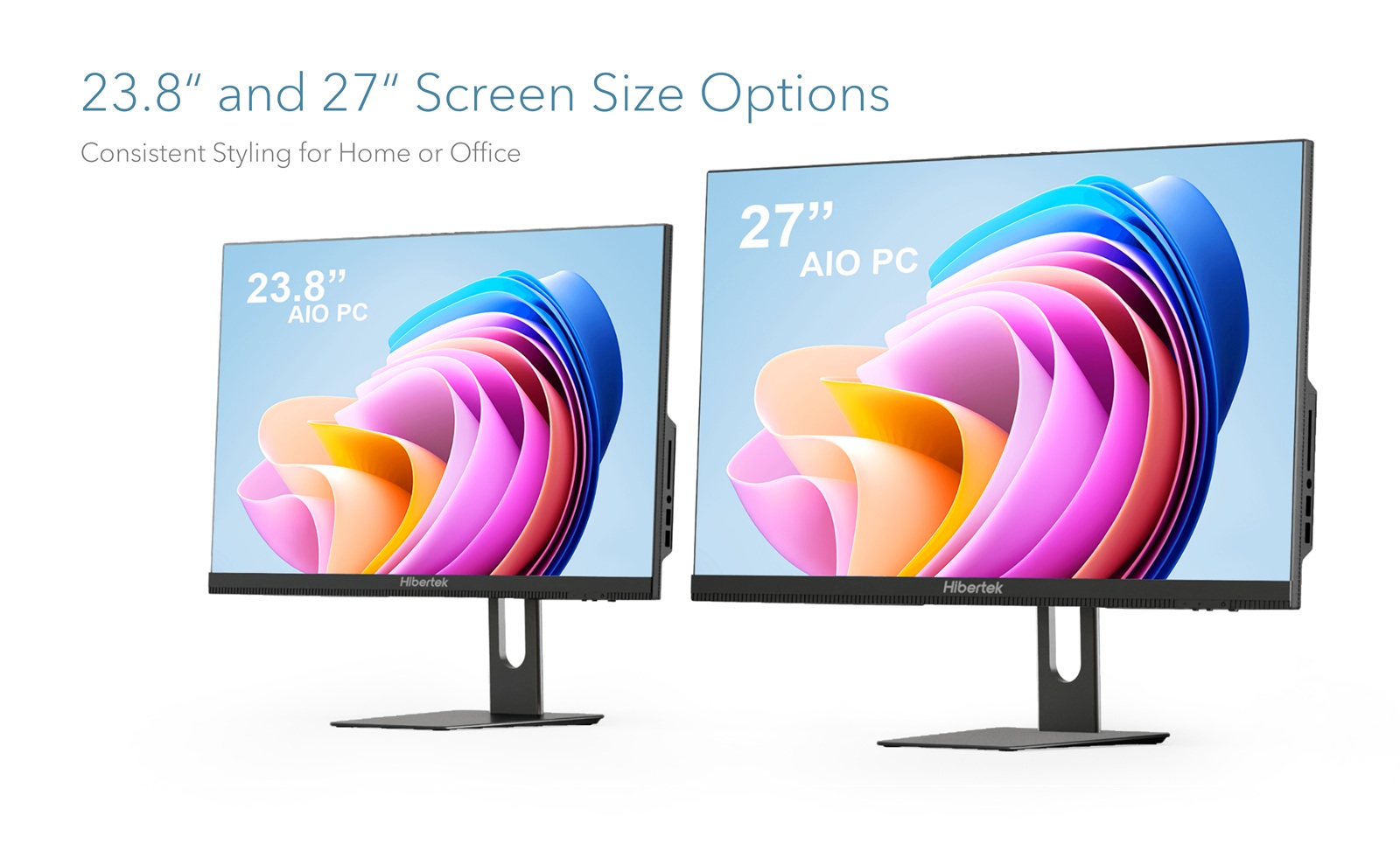

Display 23.8", IPS Level, FHD 1920x1080, 16:9 panel, 250 nits, zero brightness dot
Motherboard Support Standard 170 x 170 mm Thin Mini ITX Motherboard
(Intel Q870/B860/H810/B760/Q670/B660/H610,
Intel Core Ultra Series 3/Core Ultra Series 2 -H/Core Ultra Series 1 -H/Core CPU-H/Core CPU N200,
AMD Pro665/Pro600/A300,
AMD 8040 Series H/7035 Series H/R2514)
Processor Intel Socket LGA1851 for Core Ultra Series 2 up to Ultra 9/LGA1700 14th/13th/12th Gen up to i9 Desktop Processors (Up to 65W)
Intel Core Ultra Series 3/Core Ultra Series 2 -H/Core Ultra Series 1 -H up to Ultra 9/Core CPU-H up to Core 9/N200 Mobile Processors(Up to 65W)
AMD Socket AM5 for Ryzen 9000/8000 series up to Ryzen 7/AM4 for Ryzen 5000/4000/3000 series up to Ryzen 7 Desktop Processors (Up to 65W)
AMD 8040 Series H/7035 Series H/R2514 Mobile Processors (Up to 65W)
Graphics Integrated Graphics
Memory Follow Motherboard/Processors Specification
Support Dual SO-DIMM Max. 64GB DDR4 / Max. 128GB DDR5
Storage Follow Motherboard Specification
Up to 2 x M.2 M Key 2280 NVMe SSD (Support PCIe & SATA mode)
1 x 2.5 inch HDD/SSD Space
Wireless Data Network M.2 Wi-Fi 5/6/6E/7 + Bluetooth 5.x

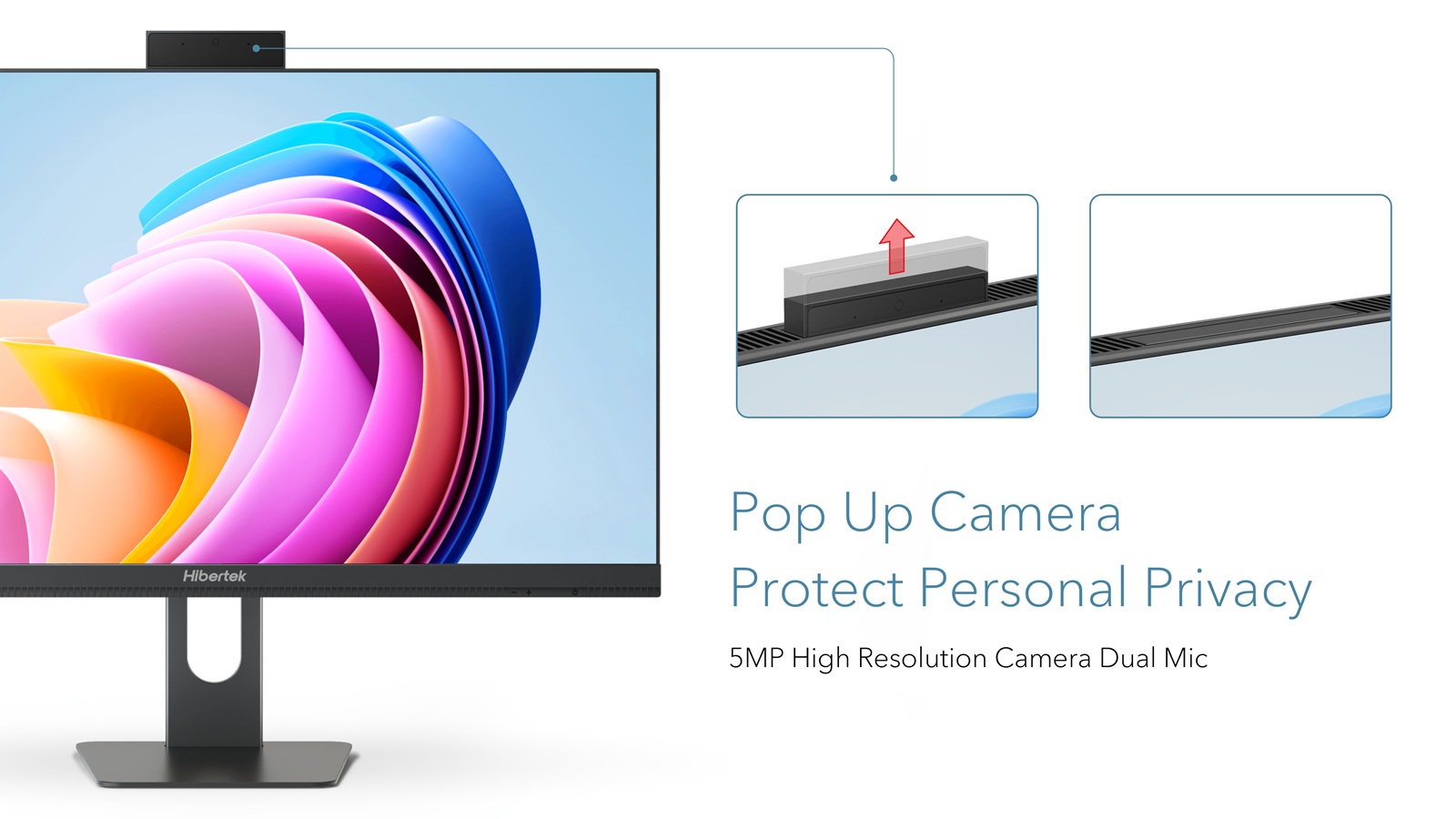

Camera + Microphone Pop up 5MP(2592 x 1944) Camera + Dual Mic
Back I/O Ports H810 Thin Mini ITX
2 x USB 3.2 Gen2x1 Type A
2 x USB 2.0 Type A
1 x DisplayPort
1 x HDMI out
1 x 1Gb Ethernet port
2 x Audio jacks
1 x DC Power Connector (Support 19V)
Side I/O Ports 1 x USB 3.2 Gen1 Type C
1 x Audio Combo Jack
1 x USB 3.2 Gen1 Type A
Buttons Power Button
Brightness Up / Down
Speaker 2 x 3W Speakers
Power 120W Adaptor
-Optional 150W Adaptor
Security Kensington Lock
Operation System Windows 11 64-bit / Linux

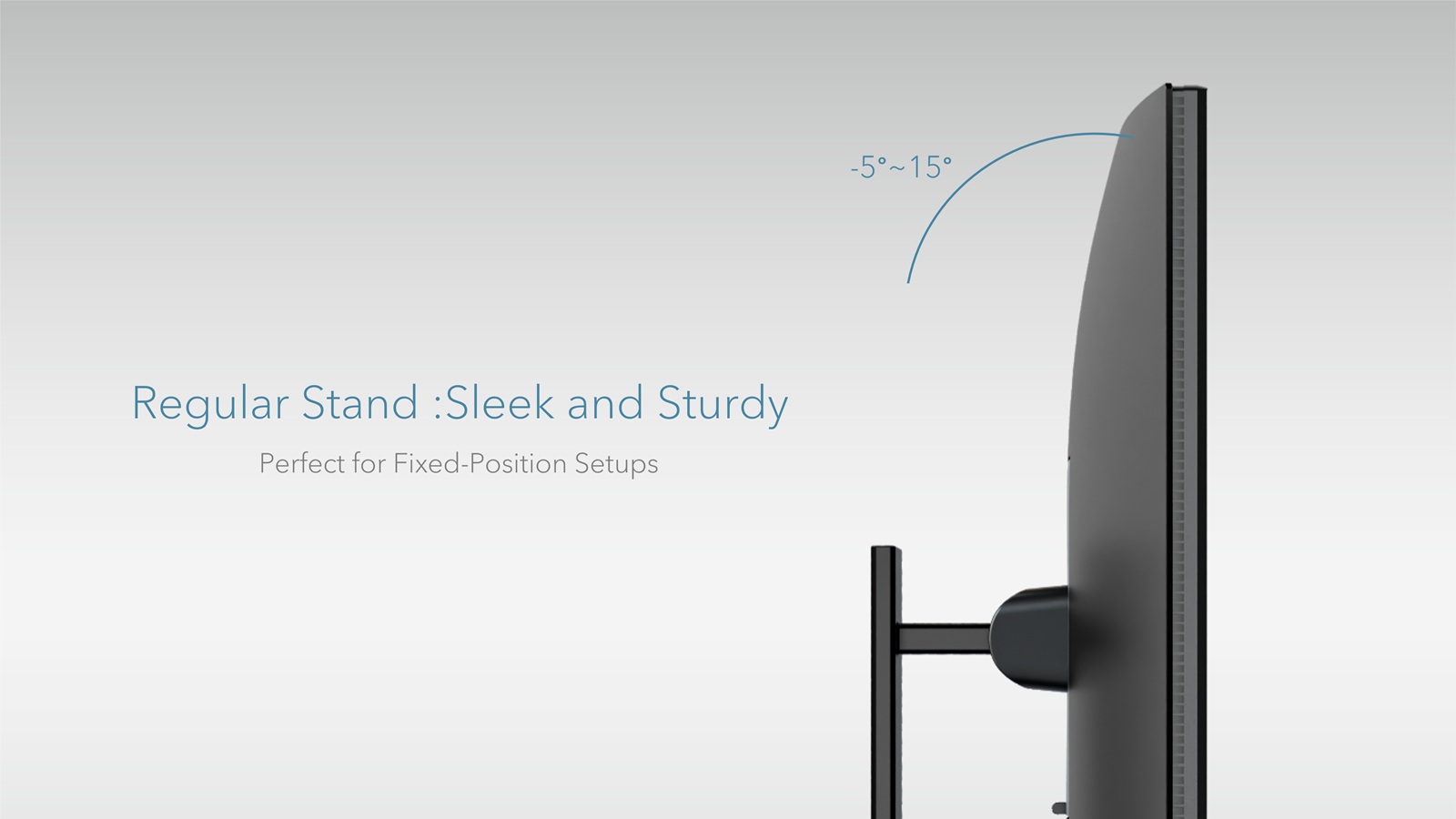

Regular Stand Aluminum Standard Stand
Tilt: -5°-15°
Height Adjustable
Stand		 Adjust Up to 142mm
Elevation: 142 mm
Tilt: -5°-20°
Swivel: -30°-30°
Rotation: 0°-90°
Dimension -540.6 (W) x 325 (H) x 54 (D) mm (without stand)
-540.6 (W) x 459.22 (H) x 200.09 (D) mm (with Regular stand)
-540.6 (W) x 496.79 (H) x 206.97 (D) mm (with Height Adjustable stand)
Color Black / White
