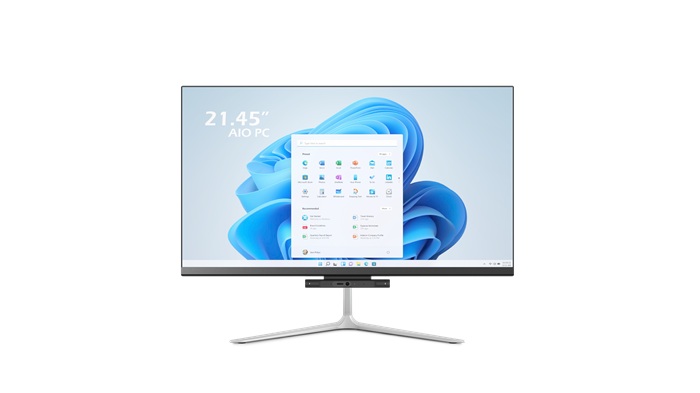

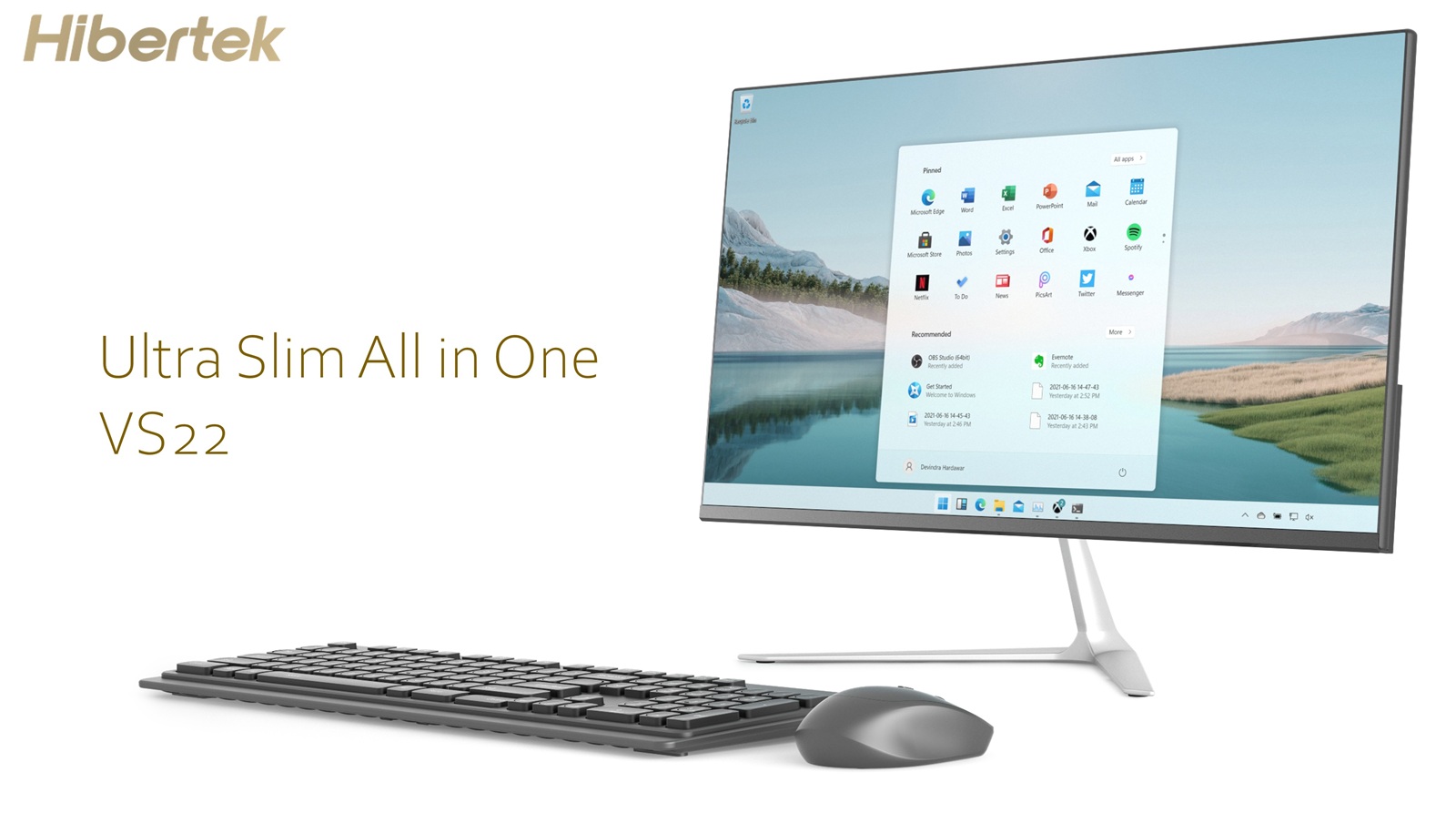

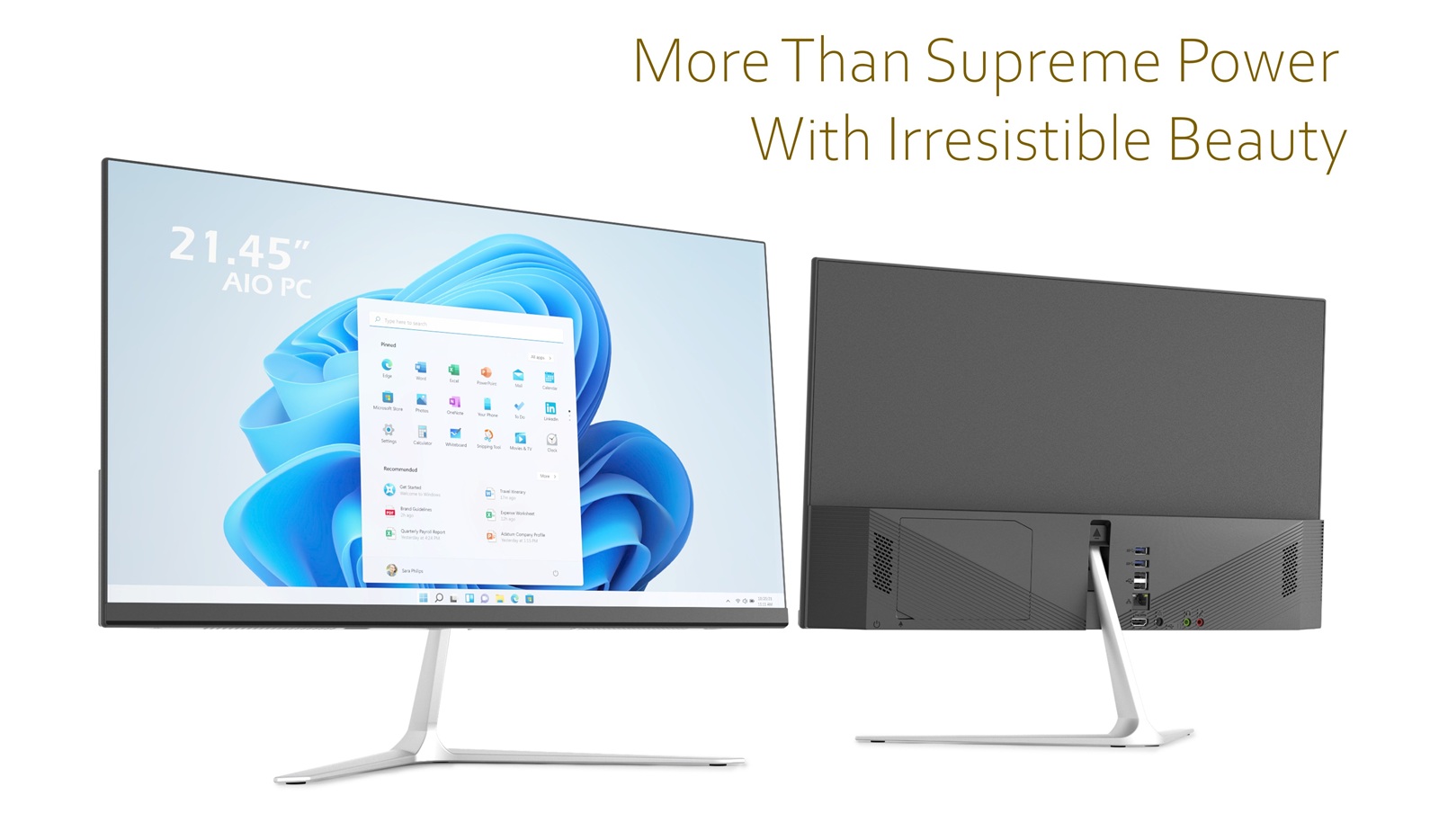

VS22 - 21.5" Slim Frameless Screen All-In-One Desktop

Extreme Slim, Low Cost, Intel Mobile CPU Retailer AIO Computer

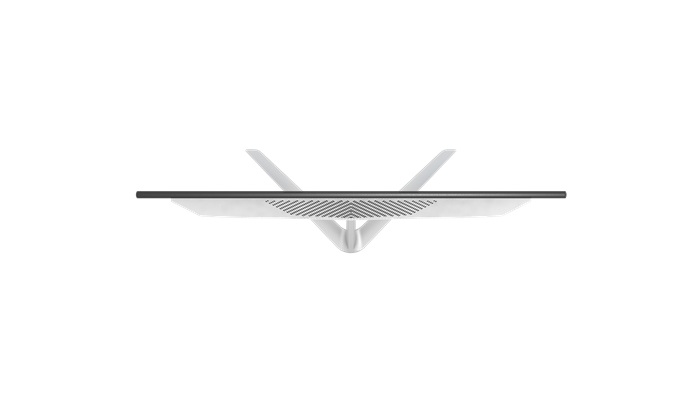

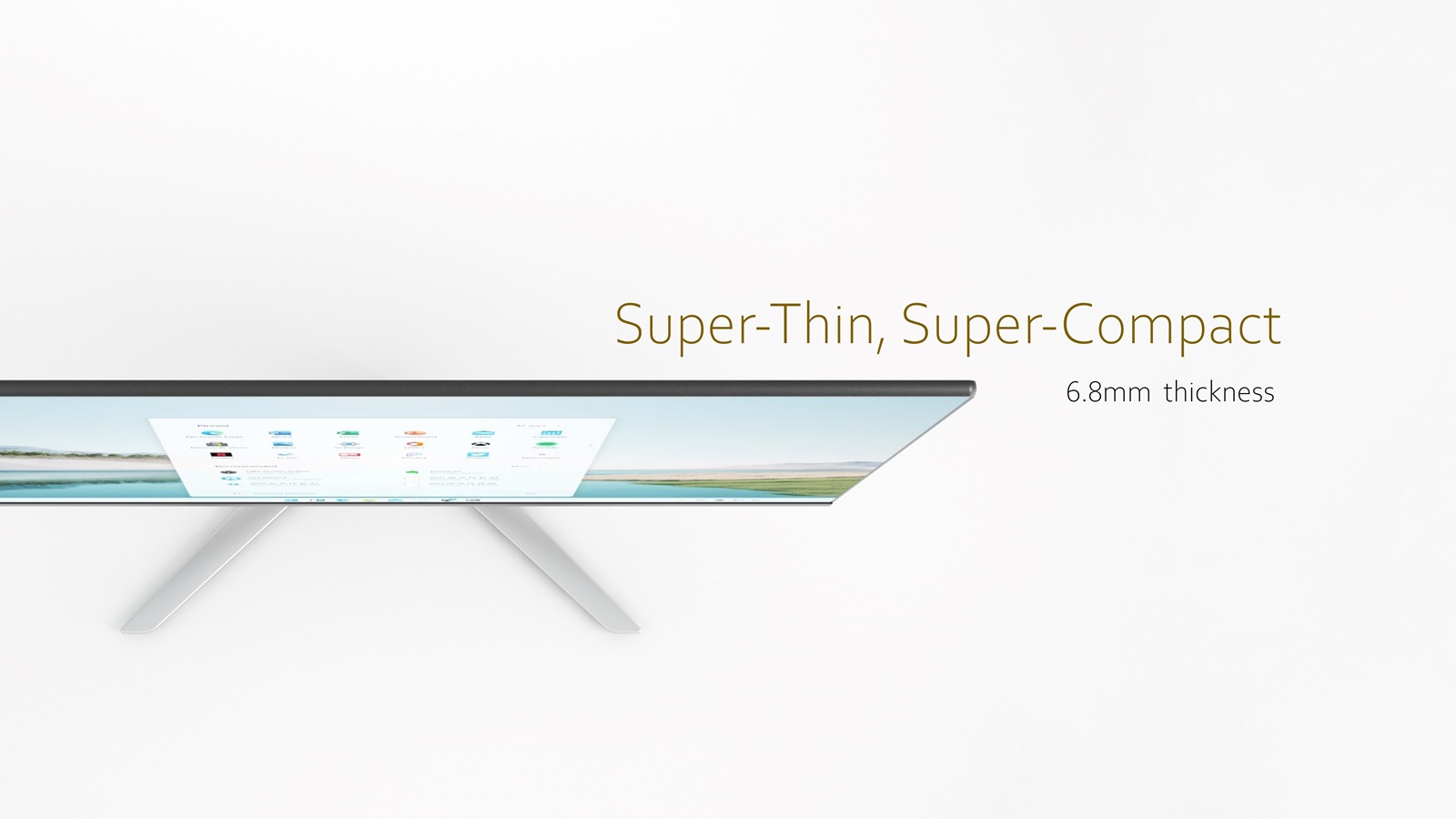

  • Chassis <= 38mm thickness
    Three-sided thin bezel to boast a 97% screen-to-body ratio
  • Intel Mobile CPU
    Latest generation 6-15W Intel Mobile Alder Lake-N, Jasper Lake-N brings computer performance with low cost
  • HDMI out
    Extends your screen to 2nd monitors
  • Security Features
    Kensington Lock, Camera Anti-Spy LED, Camera Curtain

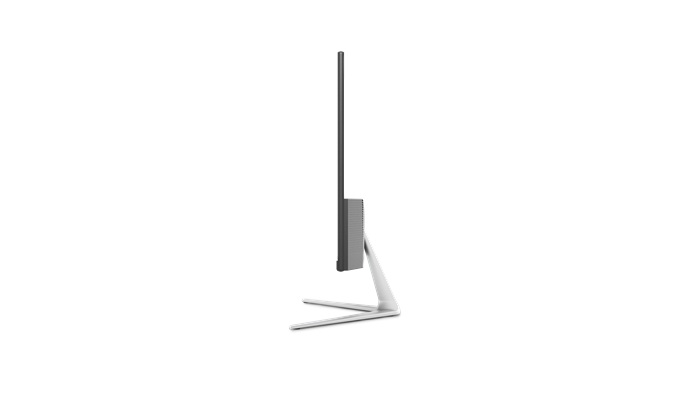

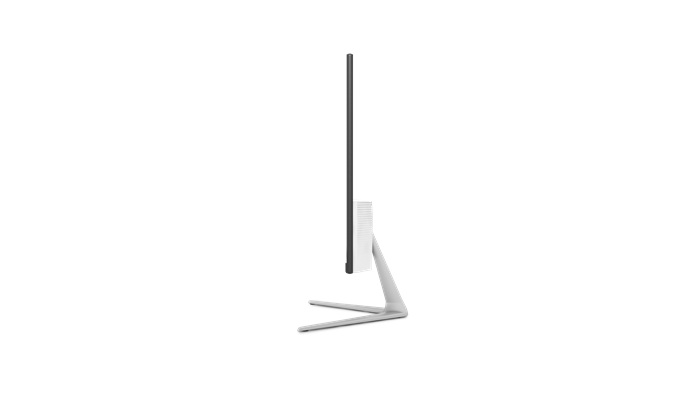

  • Silver Aluminum V Stand
    Reliable super-solid tiltable stand -8°-28°

CPU/Memory Support

Drivers

BIOS

FAQ

Manual

User Guide
Model Name VS22

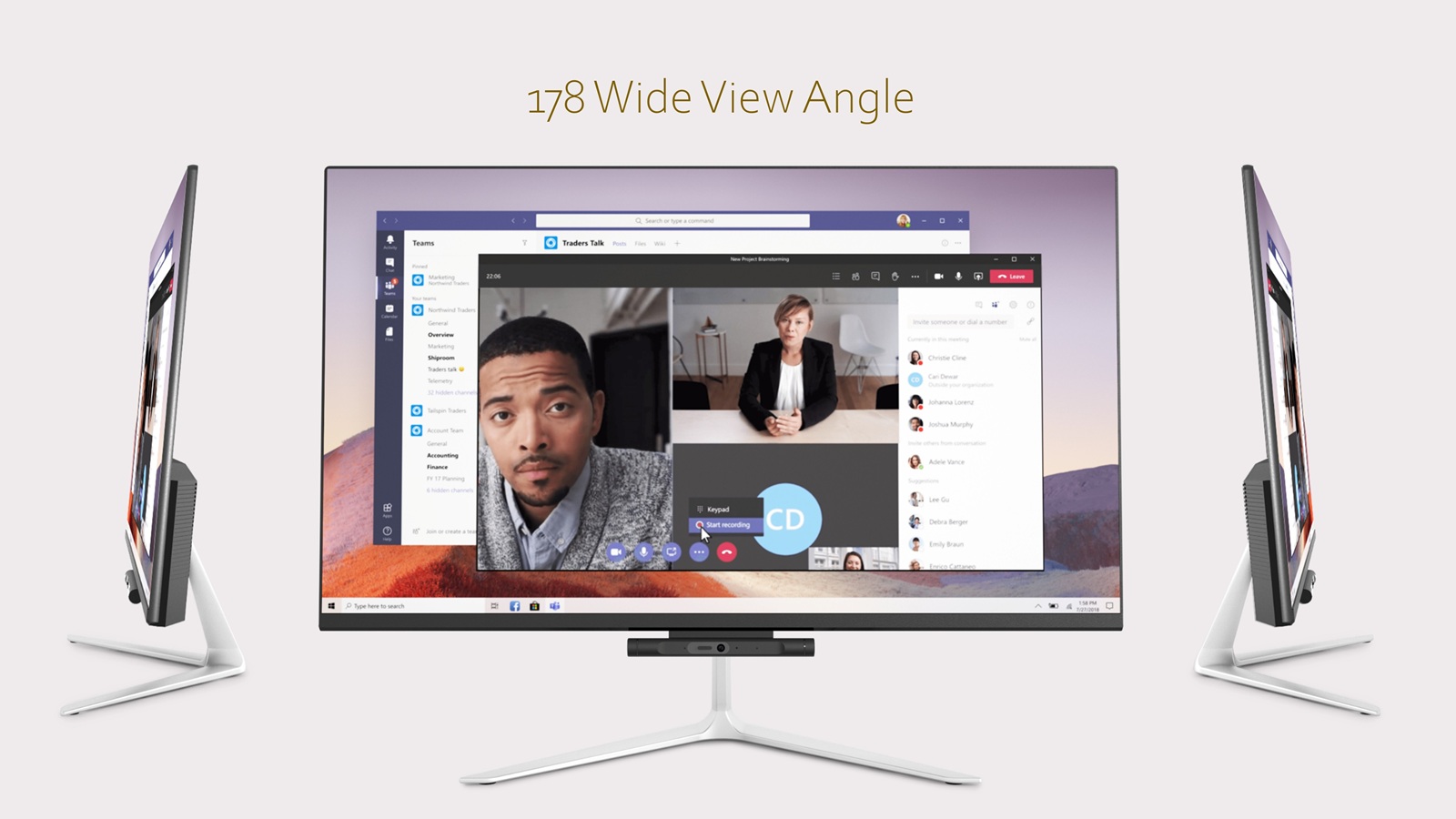

Display 21.45 inch, FHD (1920 x 1080) 16:9, VA level, Wide-Angle View, Anti-glare, LED backlight, 250 nits, 1:3000 contrast ratio, 3-Border Bezel-free
-Optional: Zero Bright dot
Motherboard Proprietary Motherboard with SoC Processor
Processor Intel Socket LGA1851 for 15th / 14th Gen Intel Core i7 / i5 / i3, Pentium Gold / Silver and Celeron Processors (Up to 65W)
Graphics Integrated Graphics
Memory Follow Motherboard Specification
Support SO-DIMM Max. 16GB DDR4 / Max. 16GB DDR5
Storage 1 x 2.5" HDD / SSD
Wireless Data Network M.2 Wi-Fi 5/6/6E/7 + Bluetooth 5.x

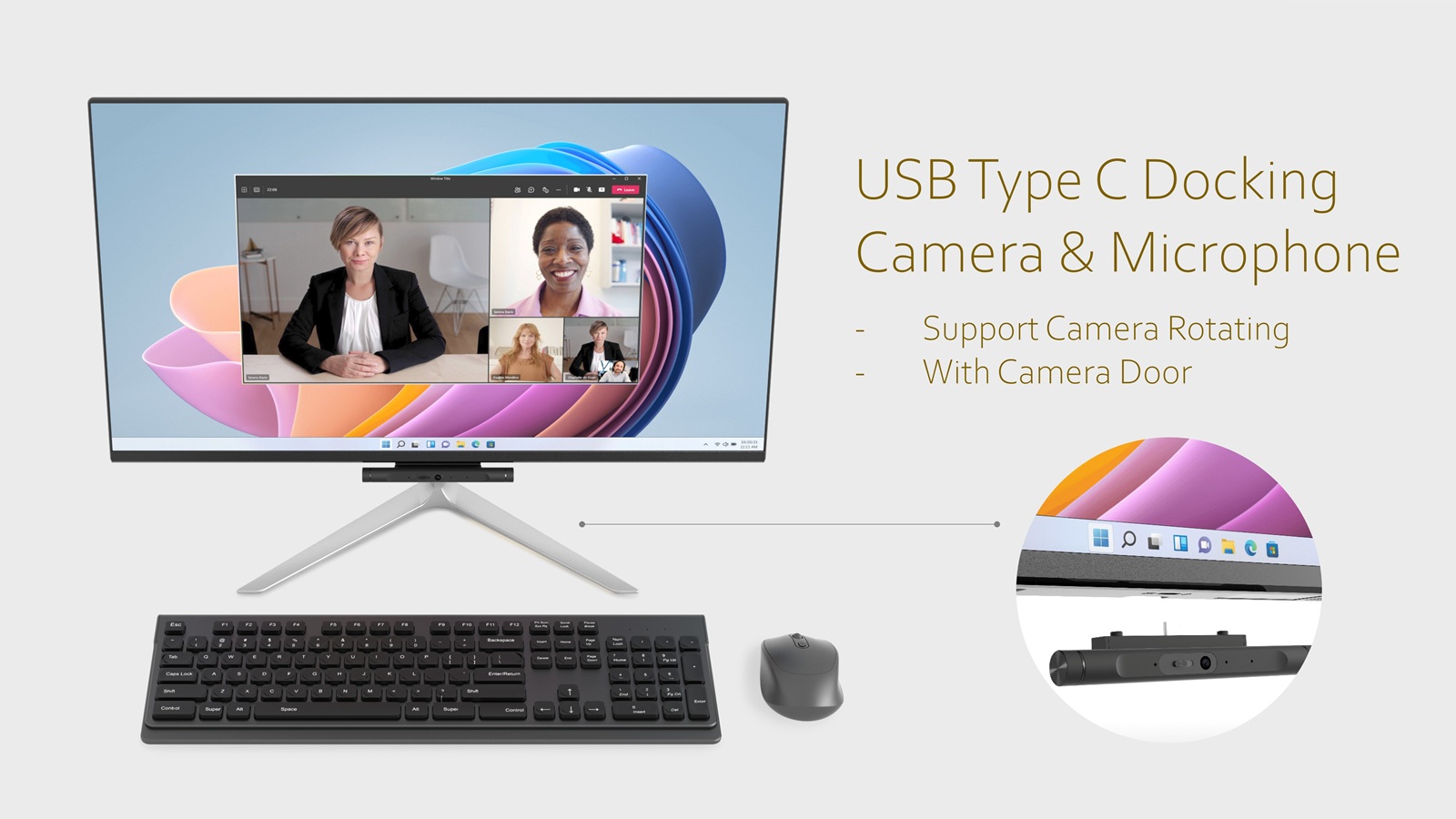

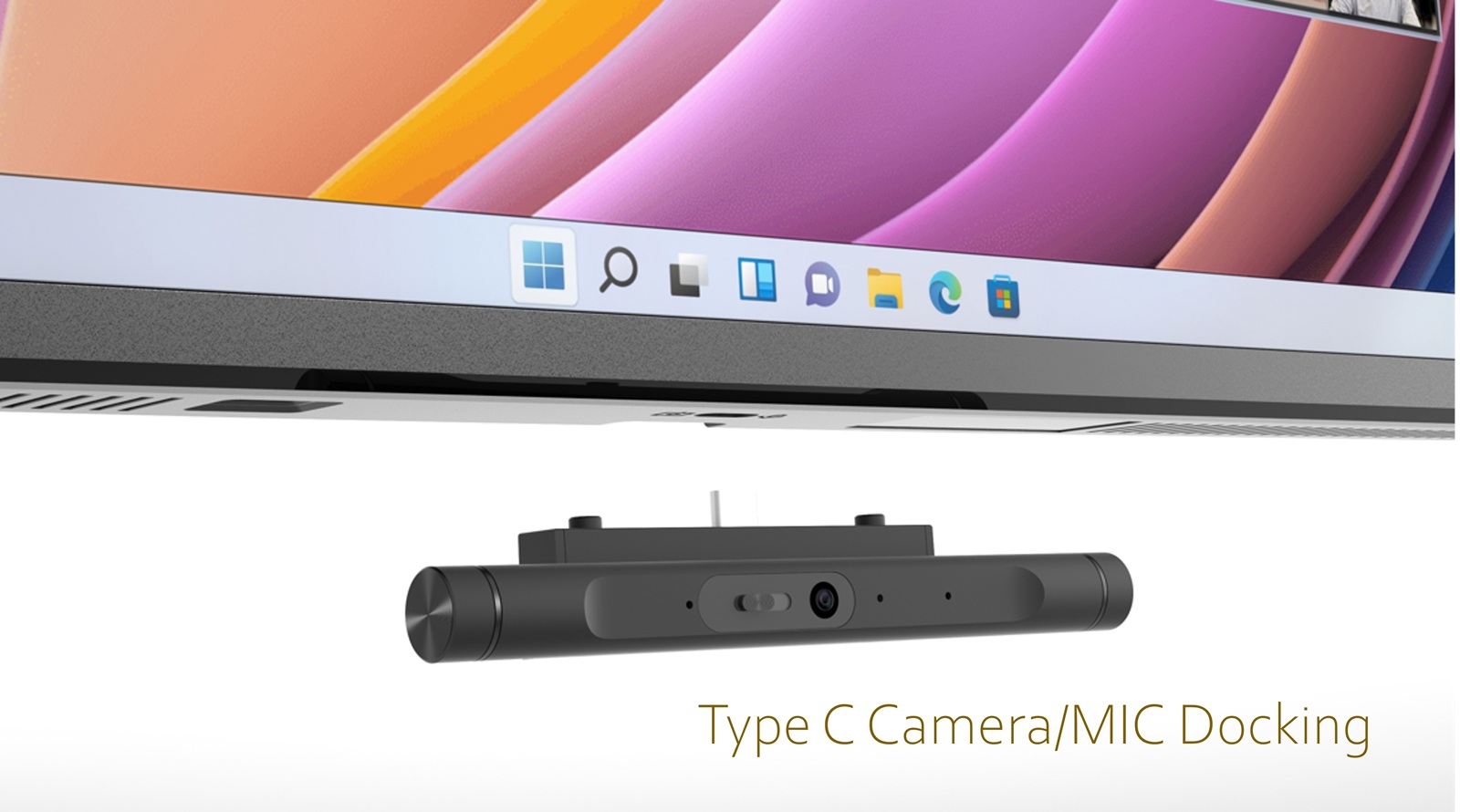

Camera Module External Type C Angle-Adjustable Camera Module
Camera + Microphone 2MP(1920 x 1080) Camera + Single / Dual Mic
-Optional: 5MP(2592 x 1944) Camera + Single / Dual Mic

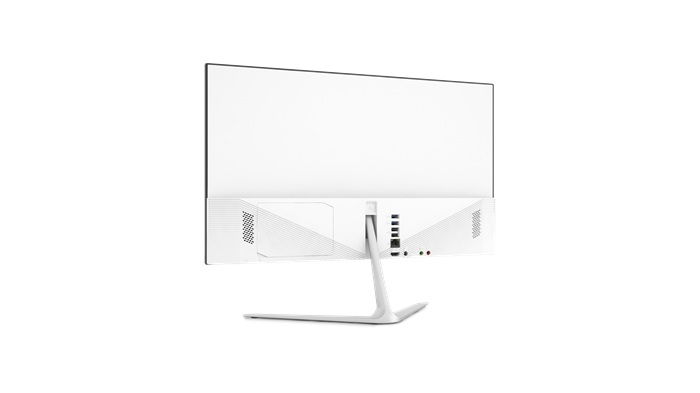

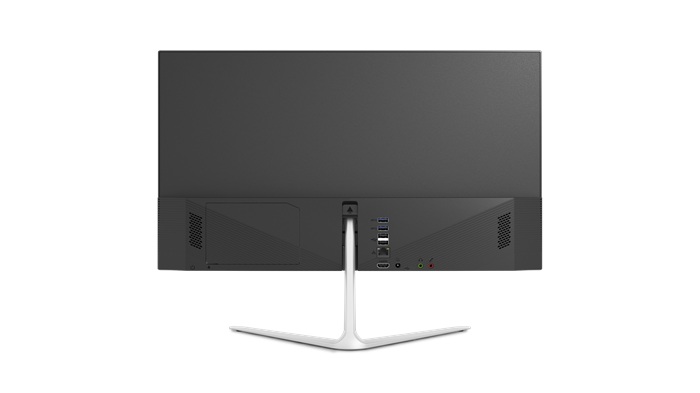

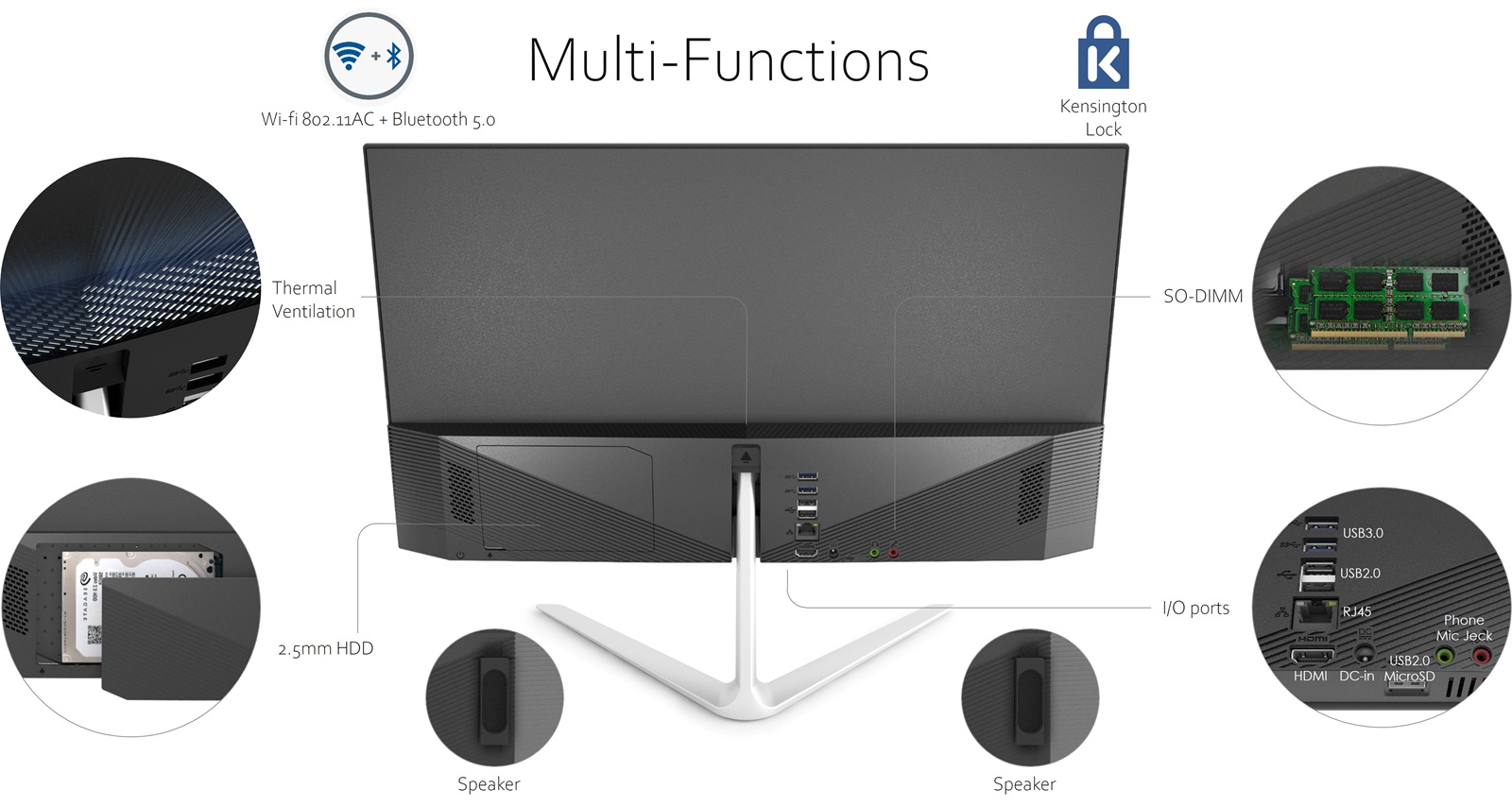

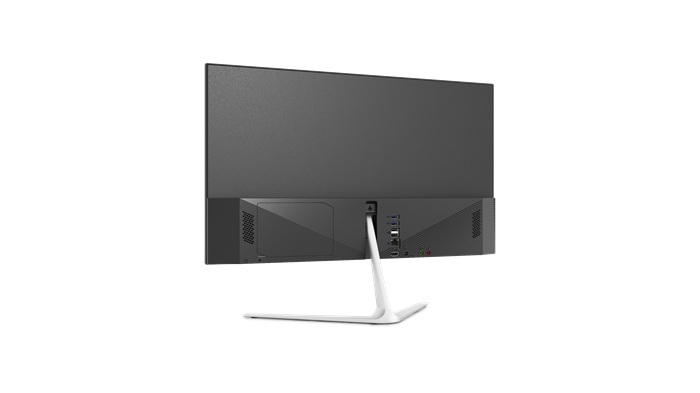

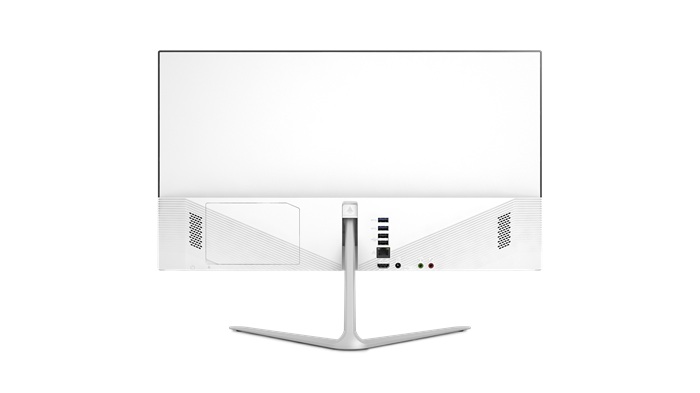

Back I/O Ports 2 x USB 3.2 Gen 1 Type A
3 x USB 2.0 Type A
1 x SD Card Reader (SDHC / SDXC)
1 x HDMI out Port
1 x Realtek 1Gb Ethernet port
2 x Audio jacks
1 x DC jack ( Support 19V )
Extra I/O Ports 1 x USB2.0 Type C
Button Power Button
Speaker 2 x 2W Speakers
Power 45W External Power Adaptor With Power Cord
-Optional: 65W External Power Adaptor With Power Cord
Security Kensington Lock
Camera Curtain
Operation System Windows 11 64-bit / Linux
Regular Stand Silver Aluminum V Stand
Tilt: -8°-28°
Dimension -492 (W) x 280 (H) x 38 (D) mm (without stand)
-492 (W) x 367 (H) x 165 (D) mm (with Silver Aluminum V Stand)
Color Black / White
Certification CE, FCC, RoHS
